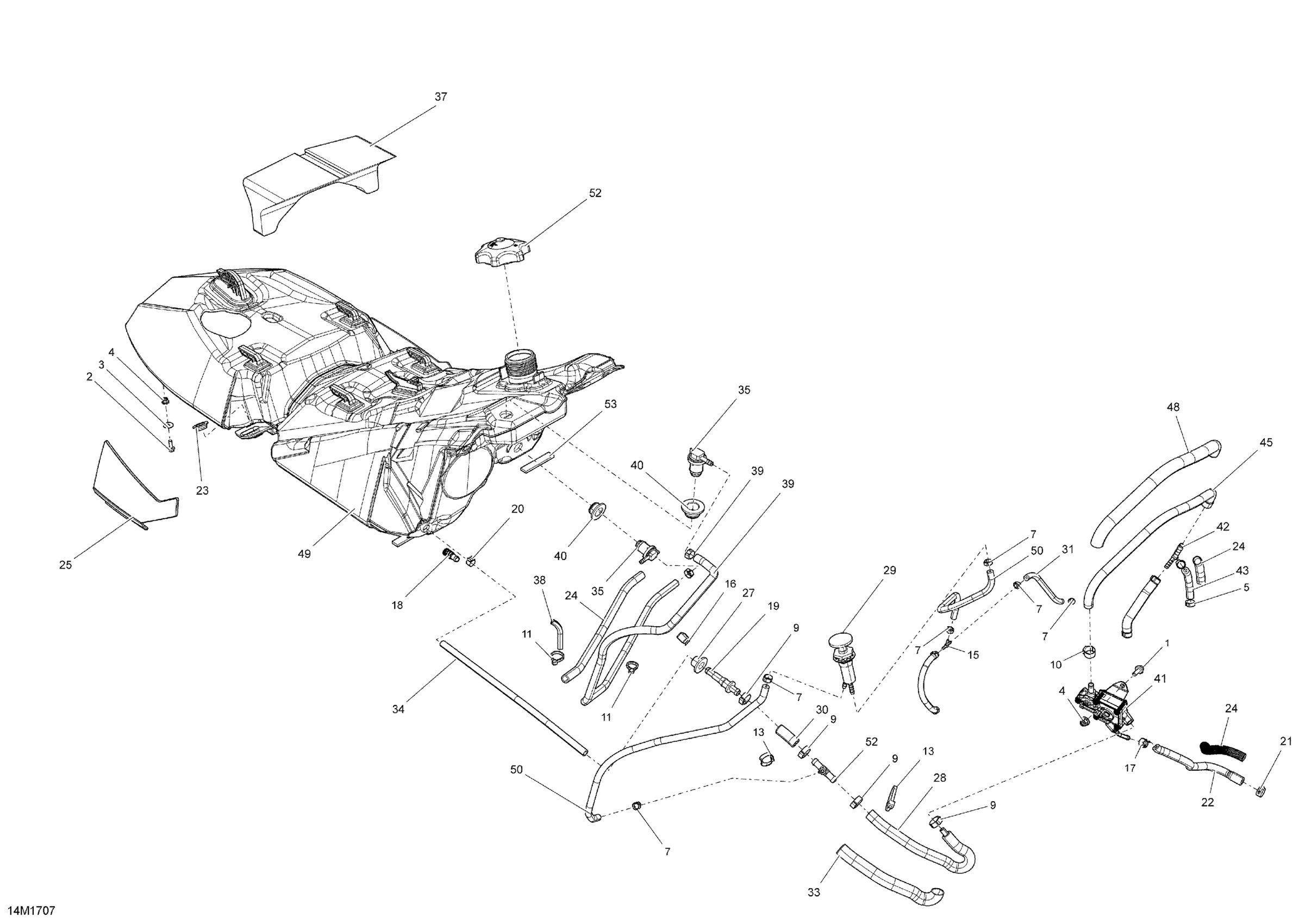

Ski-Doo MXZ 600 RS, 2017 Fuel System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Flat Washer

224060201

$1.15

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Oetiker Gear Clamp

293650025

$2.46

7

Oetiker Gear Clamp

293650043

$2.70

9

Crimp Clamp

293650053

$2.42

10

Oetiker Clamp

293650125

$2.69

11

Tie Wrap 142 mm

293750002

$0.88

13

Tie-Rap 180 mm

414115200

$0.09

15

T-Fitting

414222400

$1.33

16

Clip

414227300

$1.45

17

Spring Clamp

414415200

$0.83

18

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

19

Male Connector

414872700

$1.86

20

Norma Spring Clamp

513033010

$8.68

21

Universal Spring Clamp

513033029

$5.11

22

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

23

Shoulder Bushing

513033326

$12.62

24

Was 409901800 Tubing (13 mm)

219704400

$9.40

25

RH Cap

513033418

$12.62

25

LH Cap

513033419

$12.62

27

Grommet

513033435

$3.73

28

FORMED HOSE - Call your local BRP dealership

513033439

Unavailable

29

Primer

513033441

$33.05

30

HOSE 9.53MM ID - 40MM - Call your local BRP dealership

513033444

Unavailable

31

HOSE - Call your local BRP dealership

709000665

Unavailable

33

Tubing 16 Mm 1000Mm Long

219704408

$6.23

34

Polyurethane Hose 1000Mm Long

219704391

Unavailable

35

Remote Vent

513033859

$18.43

37

FOAM - Call your local BRP dealership

513033528

Unavailable

38

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

39

Hose

513033565

$29.20

40

Grommet

513033596

$18.43

41

Fuel Pump

513033669

$82.28

42

Y Connector | CARB

513033672

$1.06

43

Hose

513033565

$29.20

45

Hose 3000Mm Long

219704612

$79.97

48

Tubing 16 Mm 1000Mm Long

219704408

$6.23

49

FUEL TANK - Call your local BRP dealership

513033697

Unavailable

50

HOSE - Call your local BRP dealership

709000665

Unavailable

52

Fuel Tank Cap

513033752

$56.12

52

Fuel Tank Cap | Europe

513033755

$56.12

52

T-Fitting

513033756

Unavailable

53

Gasket

513033813

$3.29
