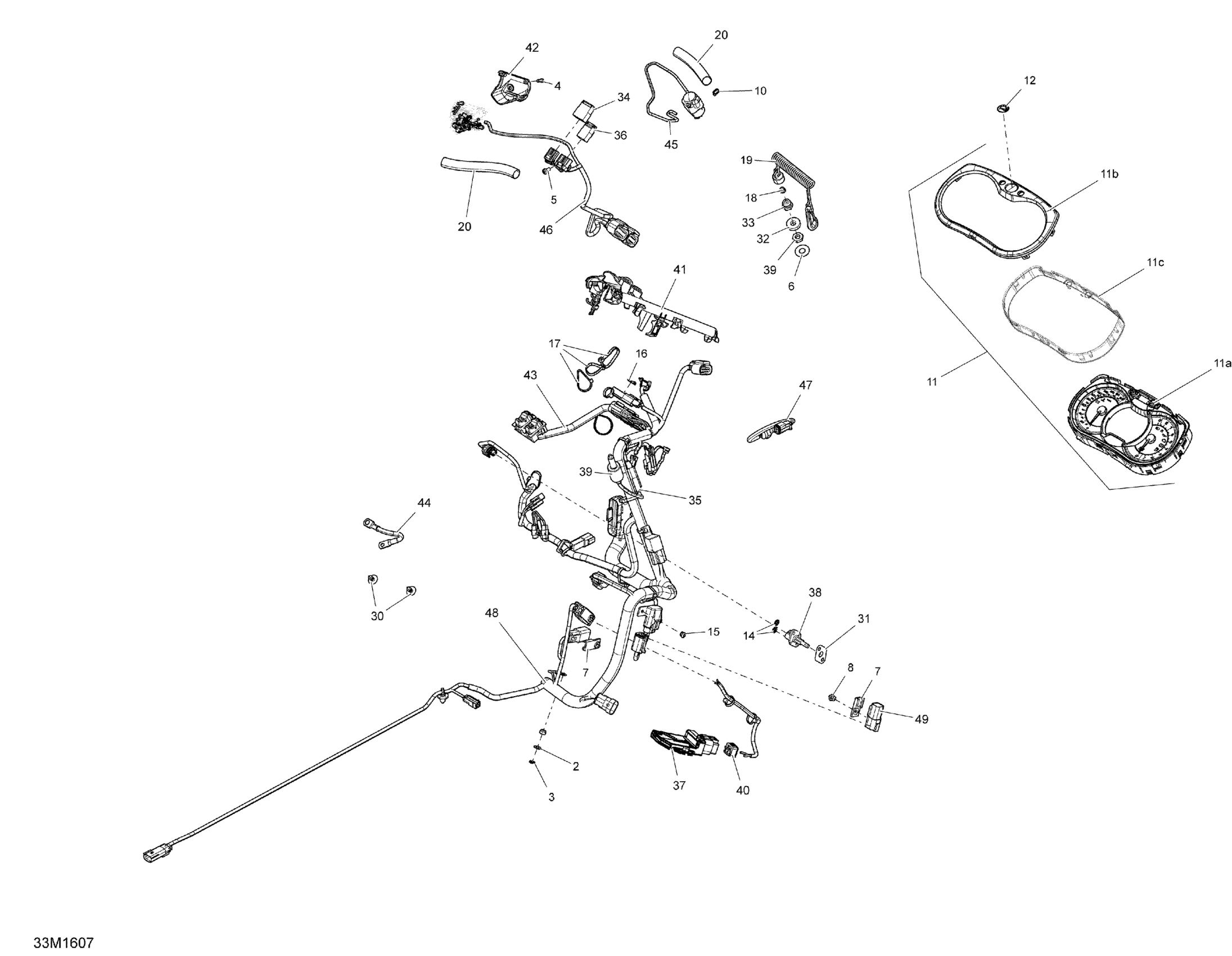

Ski-Doo MXZ 600 RS, 2016 Electrical System Diagram

#

Description
Price

1

Elastic Stop Nut M6

232561414

$1.78

2

Flat Washer 6 mm

234061410

$1.04

3

External Serrated Lock Washer 6 mm

234461608

$0.92

4

Torx Screw

250000671

$0.83

5

Pan Screw Forming, 7500C

250000690

$2.00

6

Washer

250200032

$4.84

7

Clip

270000141

$8.33

8

Avdel Rivet 3/16"

293150037

$0.47

10

Tie Wrap 94 mm | 4X4

293750001

$0.83

11

Speedometer | Includes 10 to 10c

515177910

$596.99

11a

Speedometer Button | XTP

415129355

$13.52

11b

Gauge Ring

415129348

$11.36

11c

Lens | XTP

415129349

$22.36

12

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

14

Push Nut

389804300

$0.43

15

Pop Rivet 3/16"

390402200

$0.26

16

Male Lock, 2 Circuits

409207500

$2.93

17

Tie Wrap 368 mm

293750008

$0.85

17

Tie-Rap 180 mm

414115200

$0.09

18

Plunger Cap

570151100

$9.13

19

Cap Ass'Y This part replaces 515176462.

515178292

$36.54

20

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

30

Black, Dart

414644300

$0.78

31

Seal

508000769

$5.06

32

WASHER - Call your local BRP dealership

510004418

Unavailable

33

Switch Nut

515145900

$10.51

34

Male Terminal Housing, 6 Circuits

515175662

$8.31

35

Male Terminal Housing, 2 Circuits

515175665

$7.78

36

Male Terminal Housing, 4 Circuits

515175846

$8.31

37

Voltage Regulator

515176364

$143.25

38

Air Temperature Sensor

515176366

$17.88

39

Brake Switch

515175653

$15.57

40

Lock

515176681

$17.88

41

Connector Plate

515177134

$13.60

42

LH Switch Housing Plate

515177149

$16.39

43

Double Switch Module

515177154

$73.10

44

Ground Wire

515177289

$24.60

45

Kill Switch

515177454

Unavailable

46

LH Switch Housing

515178305

$229.07

47

Temperature Sensor This part replaces 420664508.

420664509

$138.03

48

WIRING HARNESS ASSY - Call your local BRP dealership

515177994

Unavailable

49

Housing

710003006

$7.24
