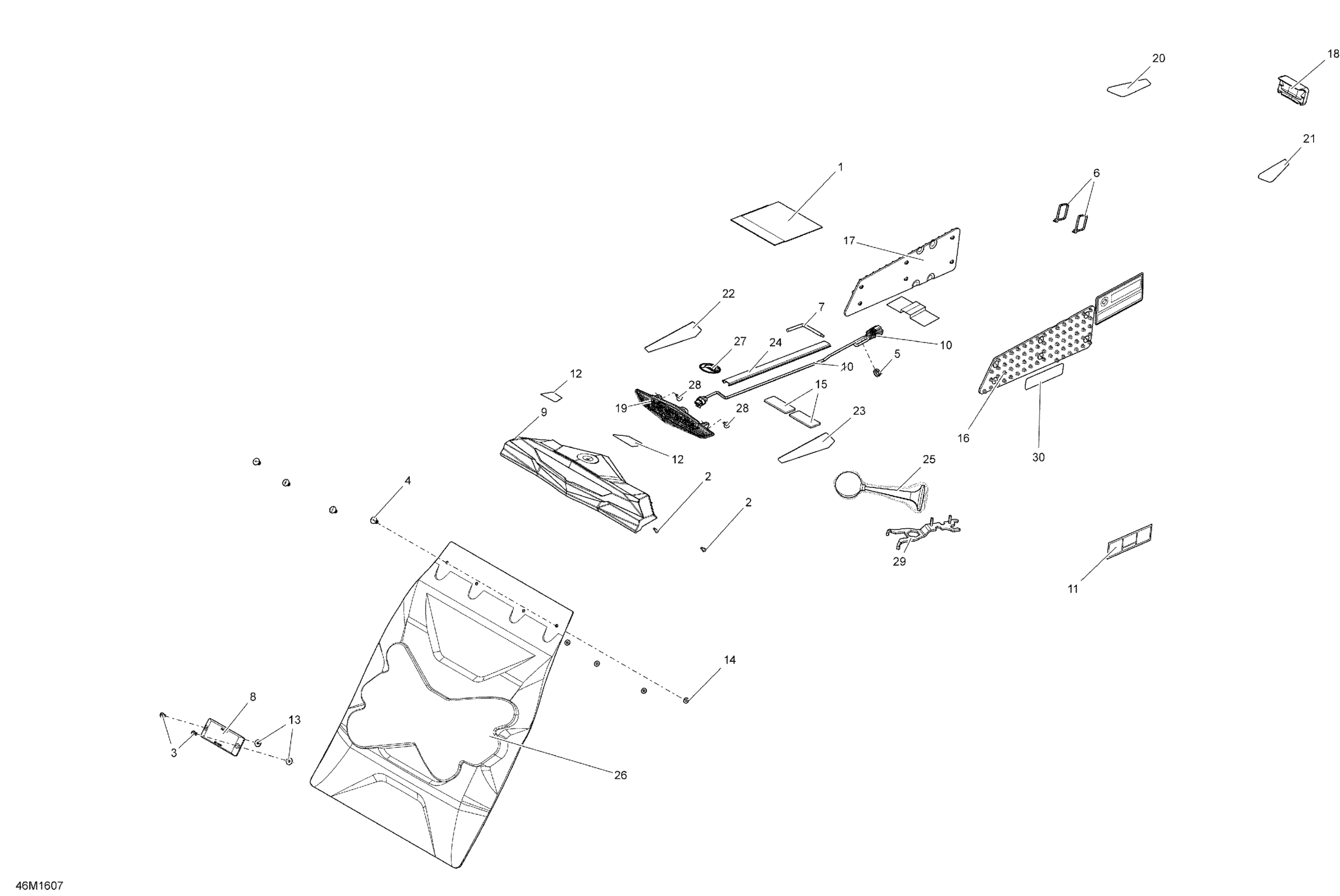

Ski-Doo MXZ 600 RS, 2016 Utilities Diagram

#

Description
Price

1

Waranty Registration Form

219400038

Unavailable

1

Waranty Registration Form

219400038

Unavailable

2

Hex. Screw K40 X 13

241141340

$0.83

3

Pop Rivet 3/16"

293150008

$0.40

4

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

5

Tie Wrap 142 mm

293750002

$0.88

6

Tie Rap 371 mm

293750018

$0.46

7

Belt Installation Tool

417127044

$12.99

8

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

9

Deep Black, Light Fairing

511000810

$19.37

10

Wiring Harness

515178062

$22.36

11

Decal X

516003647

$44.75

12

Security Label, XS

516006914

Unavailable

12

Warning Decal, Safety

516005058

Unavailable

13

Washer

517124300

$0.16

14

Flat Washer

517225900

$0.16

15

Amber, Reflector

520000271

$18.63

15

White, Reflector

415037900

$18.63

16

Grip Plate Kit

860200164

$41.76

17

Grip Plate Kit

860200164

$41.76

18

Deep Black, Reflector Support

520000871

$5.13

19

Rear Light

520001143

$74.60

20

Yellow, LH Front Reflector

520001236

$19.37

21

Yellow, RH Front Reflector

520001237

$19.37

22

Red, LH Rear Reflector

520001238

$17.13

22

Yellow, LH Rear Reflector

520001240

$17.13

23

Red Rh Rear Reflector

520001239

$17.13

23

Yellow, RH Rear Reflector

520001241

$17.13

24

Radiator Trim

520000829

$20.12

25

Horn

549011291

$34.30

26

Snow Flap

520001441

$85.79

27

BRP Logo 48mm

516008738

$12.87

28

Screw M4 X 16

250000725

$2.87

29

Wrench

520001499

$13.99

30

CE Decal | Model Europe

516006804

$9.64
