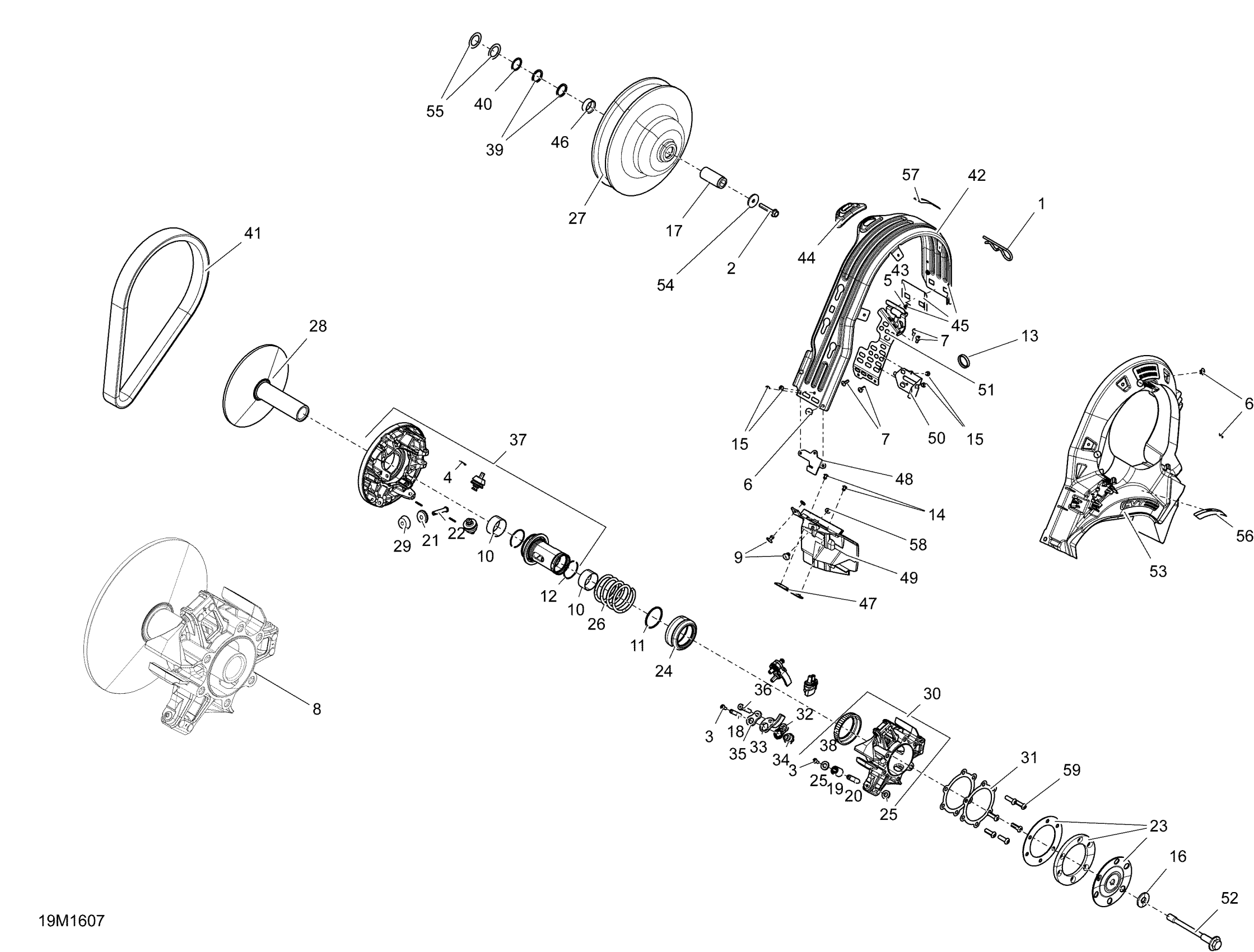

Ski-Doo MXZ 600 RS, 2016 Pulley System Diagram

#

Description
Price

1

Hair Pin

114045200

$10.37

2

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

3

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

4

Spring Pin 2.6MM X 20.5MM

250400101

$0.88

5

Henrob Rivet

293150091

$0.73

6

Pop Rivet 3/16"

293150103

$0.52

7

Torx Screw M5 X 14

250000742

$1.20

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

10

Bushing

293250389

$19.37

11

Circlip

293370116

$3.12

12

Circlip

293370137

$3.12

13

Spacer

504149100

$10.87

14

Avex Rivet

390909100

$0.28

15

Avex Rivet

390909200

$0.25

16

Conical Spring Washer M14

250200144

$3.63

17

Bushing

417127300

$63.99

18

Pin Ramp

417224694

$9.43

19

Roller Pulley Ass'y

417224947

$34.30

20

Axle - 10mm

417224204

$9.43

21

Interior Roller Pullet

417224909

$67.13

22

Axle - 8mm

417224277

$9.43

23

VIbration Damper

417224682

$116.39

24

Seat Spring

417224003

$9.87

25

Thrust Washer

417224868

$2.16

26

Clutch Spring

417224111

$26.84

27

PULLEY-DRIVEN - Call your local BRP dealership

417127517

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Pulley Roller Ext

417224916

$32.06

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Spacer

417224060

$22.36

32

RH Lever

417224086

$8.42

33

Ramp 960

417224112

$29.07

34

Molded Cam

417224113

$8.37

35

LH Lever

417224114

$5.21

36

Pivot 38mm

417224222

$5.24

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Spring Guide

417224151

$9.58

39

Spacer

417300252

$5.01

40

Spacer

417300265

$2.06

41

Drive Belt

417300534

$211.91

42

Belt Guard

417300357

$83.55

43

PLATE - Call your local BRP dealership

417300372

Unavailable

44

Guide

417300381

$8.73

45

BELT GUARD ASS'Y KIT - Call your local BRP dealership

860200362

Unavailable

46

Spacer

417300399

$15.64

47

Reinforcement Plate

417300421

$4.01

48

Front Bracket

417300423

$5.01

49

Front Support

417300430

$10.87

50

Stopper

417300445

$7.84

51

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$28.33

52

BOLT-PULLEY DRIVE - Call your local BRP dealership

417300493

$38.03

53

CVT Air Duct Pulley

417300440

$26.84

53

CVT AIR DUCT - Call your local BRP dealership

417300501

Unavailable

54

Washer

503183100

$2.99

55

Shim

504112000

$5.87

56

Decal English

516005503

Unavailable

57

Safety Belt Guard Decal

516005509

Unavailable

58

Flat Washer

517225900

$0.16

59

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61
