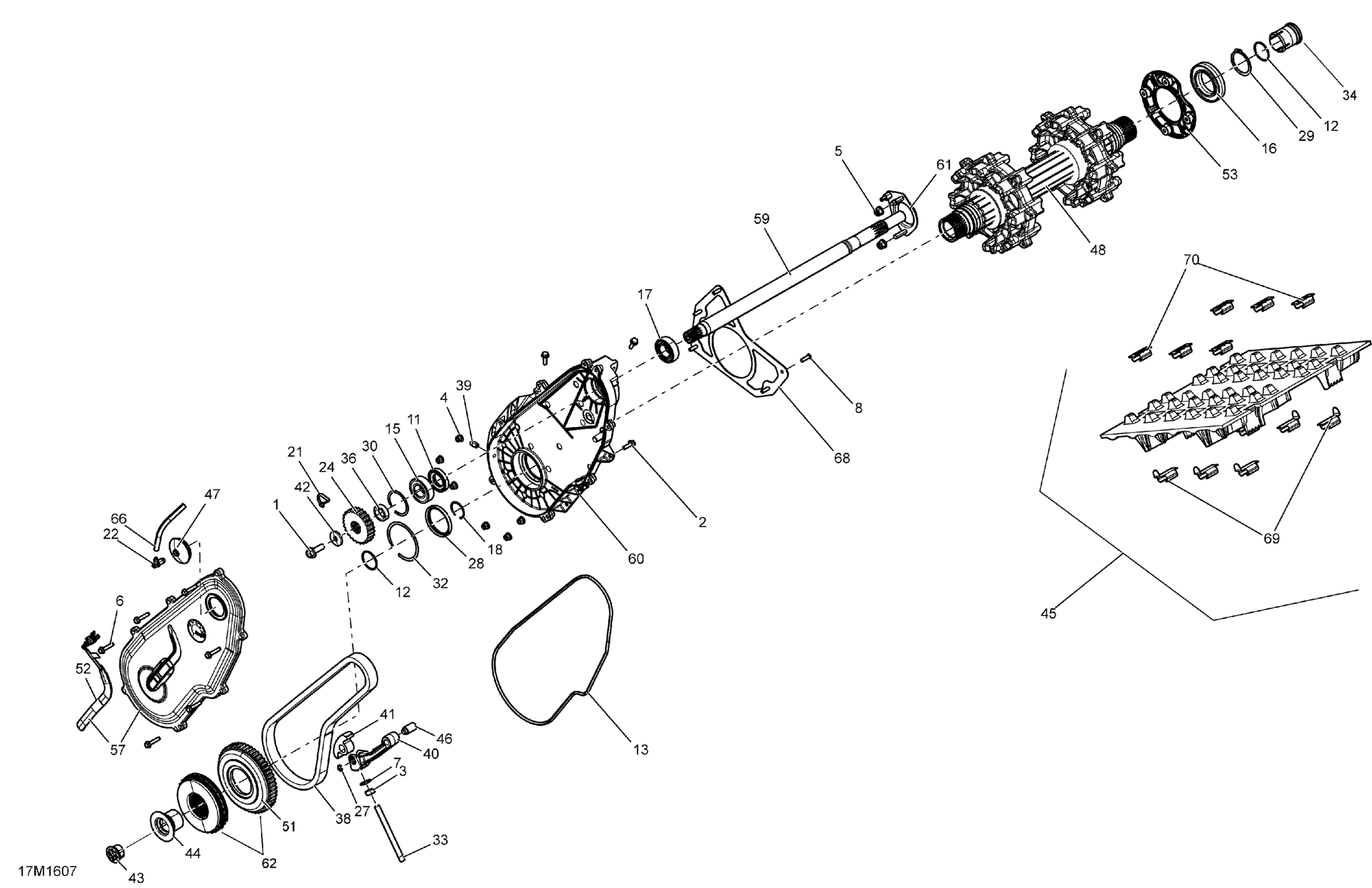

Ski-Doo MXZ 600 RS, 2016 Drive System Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Hex. Nut M10 X 1.5

232006414

$1.11

4

Flange Elastic Nut M6

233261434

$3.61

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

7

Bonded Washer

250200100

$1.74

8

Clinch Stud M6 X 20

250300027

$1.92

11

Oil Seal

293200168

$13.65

12

O-Ring

293300122

$2.06

13

Tight Seal

293300130

$7.31

15

Ball Bearing

293350115

$11.15

16

Ball Bearing

293350059

$30.74

17

Ball Bearing

293350074

$38.49

18

Circlip

293370052

$4.71

21

Tie-Rap 180 mm

414115200

$0.09

22

Male Connector

414580700

$3.38

24

Sprocket (Large), 21 Teeth

504139300

$126.89

27

Circlip

504152282

$3.11

28

Oil Seal

293200159

$13.12

29

Circlip

504152572

$6.26

30

Circlip

504152576

$8.71

32

Circlip

504152582

$8.71

33

Adjustment Screw

504152602

$9.62

34

Magnetic Cap

504152619

$23.05

36

Shim

504152628

$8.40

38

Drive Chain, 106 Links

504152630

$173.82

39

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.95

40

Tensioner chain

504153429

$13.77

41

Slider Chain

504152739

$67.66

42

Spring Washer M10

504152784

$6.26

43

Magnetic Adaptor

504152794

$46.12

44

THREADED CAP - Call your local BRP dealership

504152802

$73.05

45

Track Ass'y 15" X 128" X 1.7R" | Includes 3200 to 3200b

504153342

$1,179.99

46

Tensioner Axle

504152841

$14.65

47

Cap

504152860

$19.20

48

Drive Axle Ass'y

504153084

$396.89

51

49 Teeth Sprocket

504152892

Unavailable

52

Rotation Sensor

504152896

$35.35

53

Retaining Ring

504153886

$18.43

57

Casting Cover

504153151

$180.74

57

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$324.58

59

COUNTERSHAFT - Call your local BRP dealership

504153166

$346.12

60

Chaincase | Includes 10 to 10a

504153405

$321.51

61

Bearing Housing

504153185

$28.43

62

SPROCKET_49 TEETH ASSY - Call your local BRP dealership

504153598

Unavailable

66

Polyurethane Hose 10000Mm Long

219704410

$46.12

68

Plate | Not Shown

518325816

$73.82

69

Track Guide | Track Width 16''

415129528

$3.12

70

Cleat

504152651

$8.22
