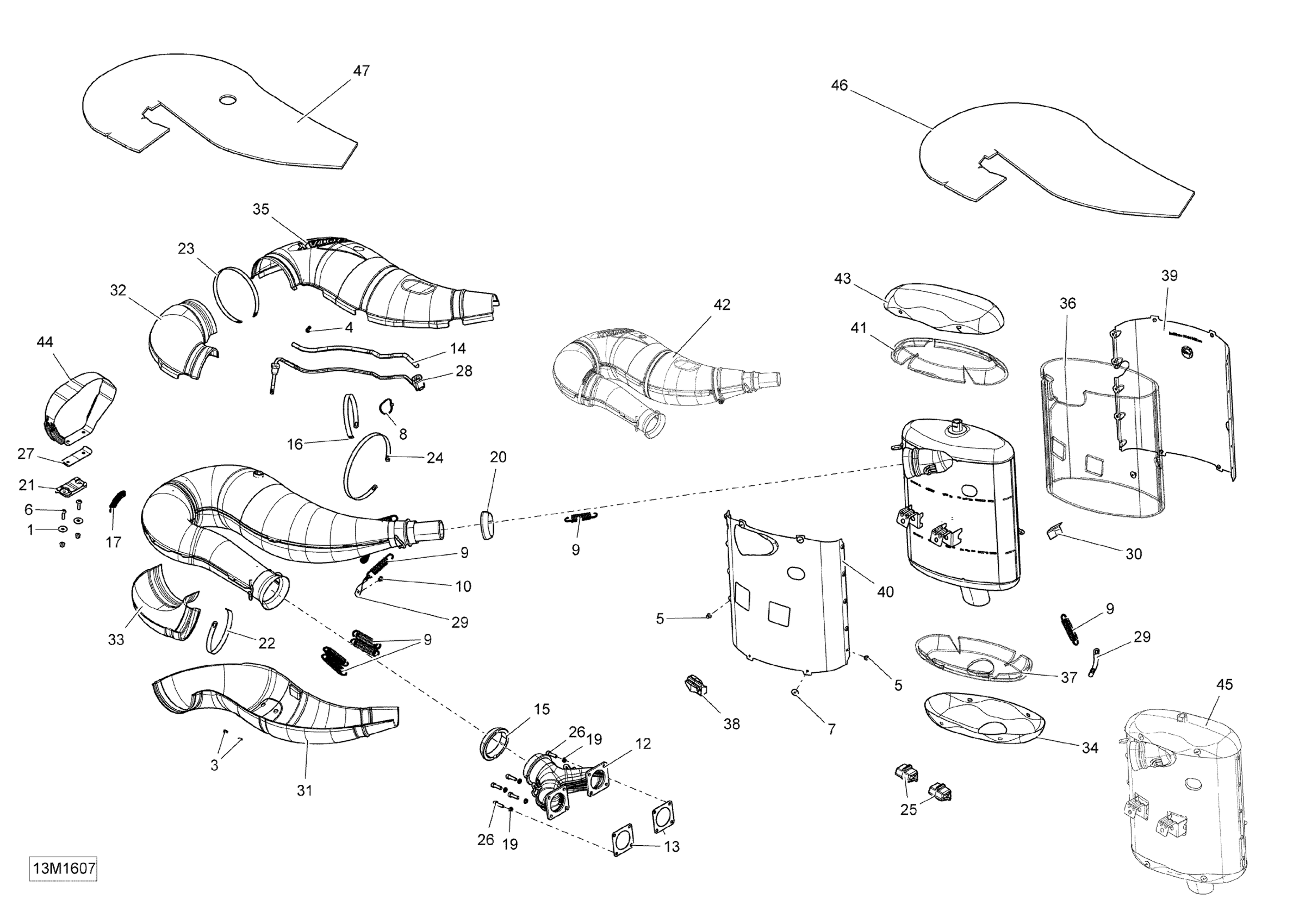

Ski-Doo MXZ 600 RS, 2016 Exhaust System Diagram

#

Description
Price

1

Flat Washer

224060201

$1.12

2

Hex. Flange Elastic Nut M5

233251414

$1.66

3

Henrob Rivet

293150091

$0.73

4

Tie Wrap 94 mm | 4X4

293750001

$0.83

5

Avex Rivet

390909200

$0.25

6

Torx Screw M5 X 20

250000724

$1.39

7

Pop Rivet 3/16”

390910000

$0.48

8

Tie-Rap 180 mm

414115200

$0.09

9

Spring

415107100

$6.01

10

Stavex Rivet

293150144

$0.75

12

MANIFOLD - Call your local BRP dealership

420673460

Unavailable

13

Gasket

420850552

$7.69

14

Tubing 6 Mm 3000Mm Long

219704425

$12.75

15

Exhaust Gasket

514053487

$25.34

16

Retaining Strap

514053499

$8.10

17

Spring

514053643

$6.01

19

Washer

514053953

$0.73

20

Exhaust Gasket

514054174

$26.84

21

Bumper

514054275

$14.21

22

Retaining Strap

514054408

$10.24

23

Retaining Strap

514054409

$10.24

24

Retaining Strap

514054410

$10.24

25

Upper Stopper

514054606

$14.92

26

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

27

Reinforcement Plate

514054638

$23.10

28

Temperature Sensor

514054870

$137.28

29

Spring Bracket, 5mm hole

514054974

$6.09

30

Heat Shield (Rectangle)

514054987

Unavailable

31

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

32

Front Upper Half Enveloppe

514054992

$37.28

33

Front Lower Half Enveloppe

514054993

$37.28

34

LOWER CAP - Call your local BRP dealership

514055054

Unavailable

35

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

Unavailable

36

WOOL - Call your local BRP dealership

514055091

Unavailable

37

WOOL - Call your local BRP dealership

514055093

Unavailable

38

BUMPER - Call your local BRP dealership

514055098

Unavailable

39

SHELL - Call your local BRP dealership

514055154

Unavailable

40

SHELL - Call your local BRP dealership

514055157

Unavailable

41

Wool

514055240

$14.18

42

Tune Pipe

514055250

Unavailable

43

TOP CAP - Call your local BRP dealership

514055332

Unavailable

44

RETAINING STRAP - Call your local BRP dealership

514055407

Unavailable

45

Muffler Ass'y

514055413

Unavailable

46

Insulating Wool

514054487

$18.63

47

INSULATING WOOL - Call your local BRP dealership

514054553

Unavailable
