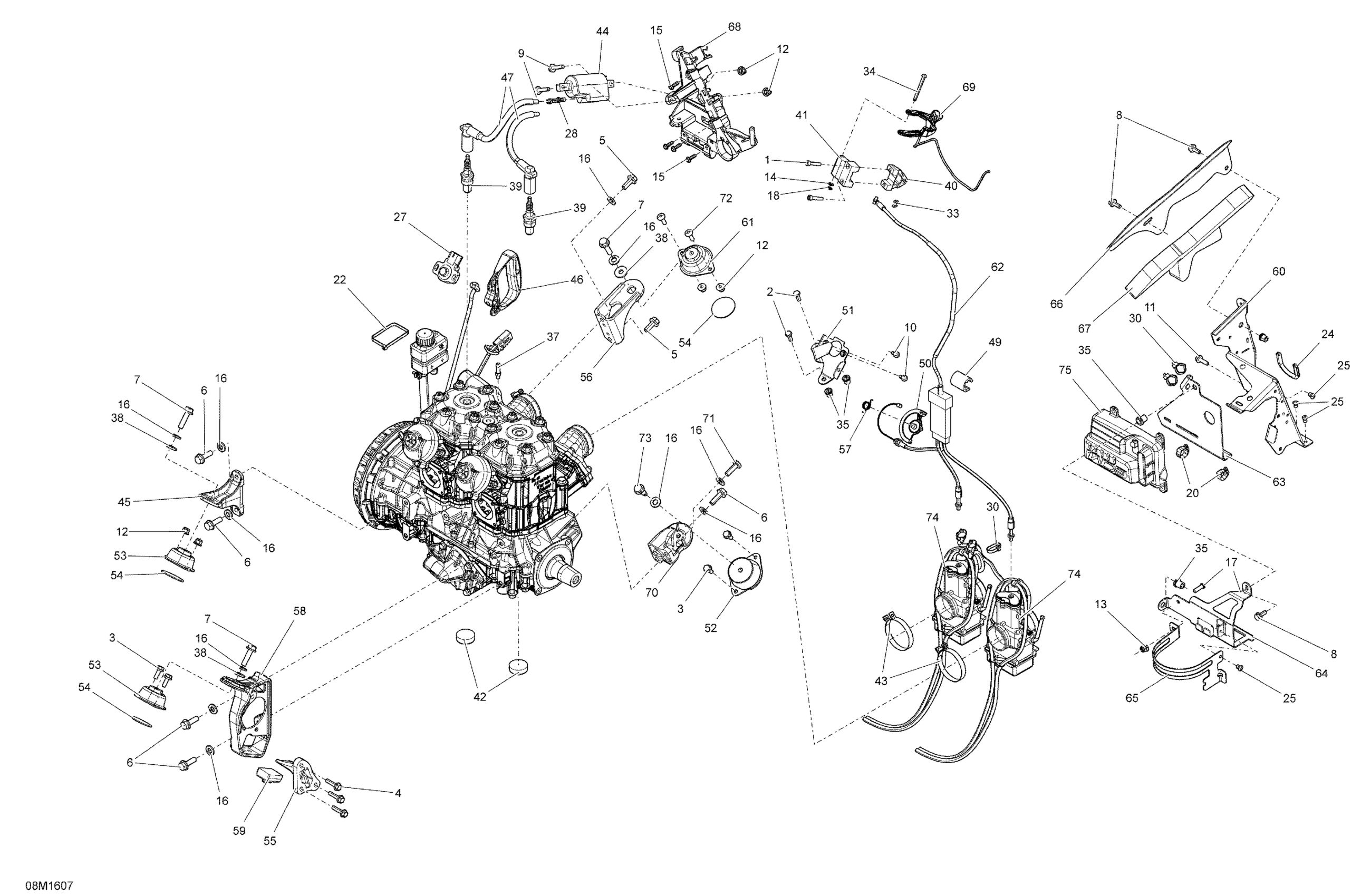

Ski-Doo MXZ 600 RS, 2016 01- Engine Diagram

#

Description
Price

1

Socket Screw M5 X 25

205052544

$1.68

2

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4

Hex. Flange Screw M6 X 25

207562544

$1.69

5

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

6

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

7

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

8

Hex. Flange Screw M6 X 16

207661644

$0.74

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

10

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

11

Hexagonal Head Screw

210262050

$2.11

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Elastic Flange Nut M6 X 1.0

233261416

$2.11

14

Flat Washer M5, Stainless

234051600

$0.77

15

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

16

Conical Spring Washer M8

250200146

$1.01

17

Clinch Stud M6 X 20

250300027

$2.09

18

Circlip

293370050

$0.46

20

Tridon Gear Clamp

293650172

$3.09

22

Tie Wrap 368 mm

293750008

$1.04

24

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

25

Avex Rivet

390909200

$0.30

27

Sensor Ass'y

404162079

$359.99

28

Plastic Clip, Spark Plug Wire

410914600

$5.61

30

Tie-Rap 180 mm

414115200

$0.11

33

Circlip

414274500

$0.90

34

Lever Pin

414438700

$11.64

35

Insert

293450275

$12.99

37

Hose Nipple

420924724

$14.83

38

Yellow, Washer

503183200

$3.19

39

Spark Plug NGK BR9ECS-5

512059552

$10.59

40

Lower Housing

512059537

$74.99

41

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

42

Stopper

512059738

$23.99

43

Gemi Clamp

512059835

$11.60

44

Ignition Coil

512059968

$51.99

45

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

Unavailable

46

Starter Grip

512060136

$14.83

47

Cable

512060291

$51.99

49

Protector

512060313

$10.33

50

CAP CAM - Call your local BRP dealership

512060335

Unavailable

51

TPS SUPPORT - Call your local BRP dealership

512060336

Unavailable

52

Rubber Mount

512060360

$60.99

53

Rubber Mount

512060385

$60.99

54

RUBBER WASHER - Call your local BRP dealership

512060410

Unavailable

55

Stopper Support

512060576

$29.49

56

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512060568

Unavailable

57

CAM SPRING - Call your local BRP dealership

512060638

Unavailable

58

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

59

Stopper

512060766

$10.33

60

GRIP SUPPORT - Call your local BRP dealership

512060770

Unavailable

61

Rubber Mount

512060772

$114.99

62

Throttle Cable

512060895

$111.49

63

ECM SUPPORT - Call your local BRP dealership

512060904

Unavailable

64

SUPPORT - Call your local BRP dealership

512060905

Unavailable

65

STRAP - Call your local BRP dealership

512060916

Unavailable

66

NOISE SHIELD - Call your local BRP dealership

512060917

Unavailable

67

NOISE FOAM - Call your local BRP dealership

512060918

Unavailable

68

COILS SUPPORT - Call your local BRP dealership

512060925

Unavailable

69

Handle Ass'y

512060960

$94.49

70

REAR SUPPORT, PTO - Call your local BRP dealership

512061159

Unavailable

71

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

72

Hex. Socket Screw M6 X 20

250000770

$2.09

73

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

74

CARBURATOR, TMX39-1Z1 - Call your local BRP dealership

403138819

Unavailable

75

Calibrated Module

512061115

Unavailable
