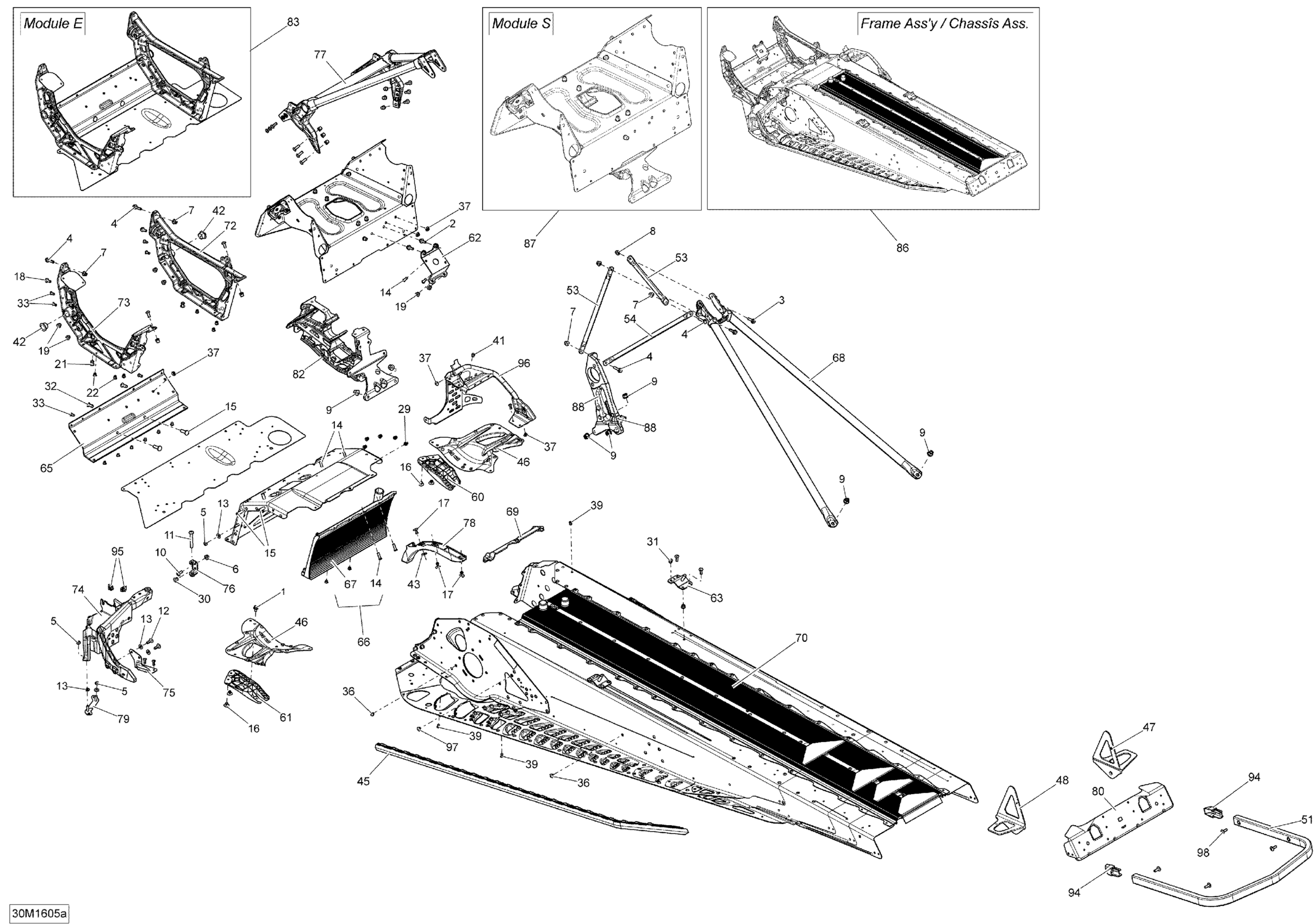

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 09- Frame - Package Sport Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 25

207662544

$0.64

5

Elastic Stop Nut M6

232561414

$0.55

6

Hex. Flange Nut M6

233061414

$1.68

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Elastic Flange Nut M6 X 1.0

233261416

$2.11

9

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Tork Screw M6 X 16

250000534

$2.11

11

Torx Screw M8 X 55

250000535

$3.17

12

Tork Screw M6 X 18

250000536

$2.11

13

Flat Washer

250200039

$0.74

14

Clinch Stud M6 X 20

250300027

$2.09

15

Clinch Stud

250300038

$4.29

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Pop Rivet 3/16”

293150108

$1.19

18

Hex. Flange Screw M6 X 16

210261650

$1.67

19

Hemlock Rivet, 6.5 mm

293150119

$4.29

21

Hemlock Rivet 6.5 mm

293150120

$7.41

22

Stavex Rivet

293150144

$0.82

29

Henrob Rivet

293150146

$2.09

30

Ornit Rivet 6,5 X 14.5

293150266

$2.40

31

Hemlock Rivet, 6.4 mm

293150174

$7.86

32

Monobolt Rivet 6.4

293150182

$3.09

33

Monobolt Rivet, 4.8 mm

293150191

$0.99

36

Full Moon Dart 8 mm

293730041

$2.21

37

Full Moon Dart 5 mm

293730042

$2.21

37

Black Dart 5 mm

293730053

$4.55

39

Avex Rivet

390909100

$0.30

41

Avex Rivet

390909200

$0.30

42

Leg Cushion

505073317

$8.66

43

Washer

517124300

$0.19

45

RH Roller

518324812

$194.99

45

LH Roller

518324813

$194.99

46

RH Reinforcement

518324874

$27.99

46

LH Reinforcement

518324875

$27.99

47

RH Slide Bracket

518324885

$39.99

48

LH Slide Bracket

518324886

$39.99

51

Clear Rear Bumper

518324980

$99.49

53

Upper Lateral Column Support

518325114

$22.49

54

Center Column Support

518325115

$22.49

60

RH Deflector, Black Polypropylene

518325782

$13.99

61

LH Deflector, Black Polypropylene

518325783

$13.99

62

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

63

RH Rear Base

518325973

$21.99

63

LH Rear Base | Includes 10v to 10x

518325974

$21.99

65

Front Member

518326198

$64.99

66

Front Radiator | Includes 10b to 10b2

518326485

$444.99

67

Front Radiator | Includes 10b to 10b2

518326485

$444.99

68

Rear Member

518326559

$264.99

69

Seal

518326656

$9.19

70

Rear Radiator 120''

518327580

$783.99

72

RH Member

518326795

$284.99

73

LH Member

518326796

$229.99

74

LH Stirup

518326820

$37.99

75

Support

518326960

$12.99

76

U-Attach

518326961

$10.99

77

Front Member

518326970

$299.99

78

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

79

Attach | Includes 10n to 10p

518326986

$12.99

80

Rear Cap

518327105

$22.49

82

Front Suspension Support

518327487

$289.99

83

E Module | Includes 10n to 10at

518327567

$469.99

86

FRAME 120 - Call your local BRP dealership | Includes 10 to 10av

415130275

$3.00

87

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

88

Pulley Support

518328346

$129.99

94

Full Moon Cap

520000567

$10.99

95

Panel Nut M5 X 0.8

250000958

$4.23

96

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

97

Full Moon Dart 10 mm

293730059

$4.55

98

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11
