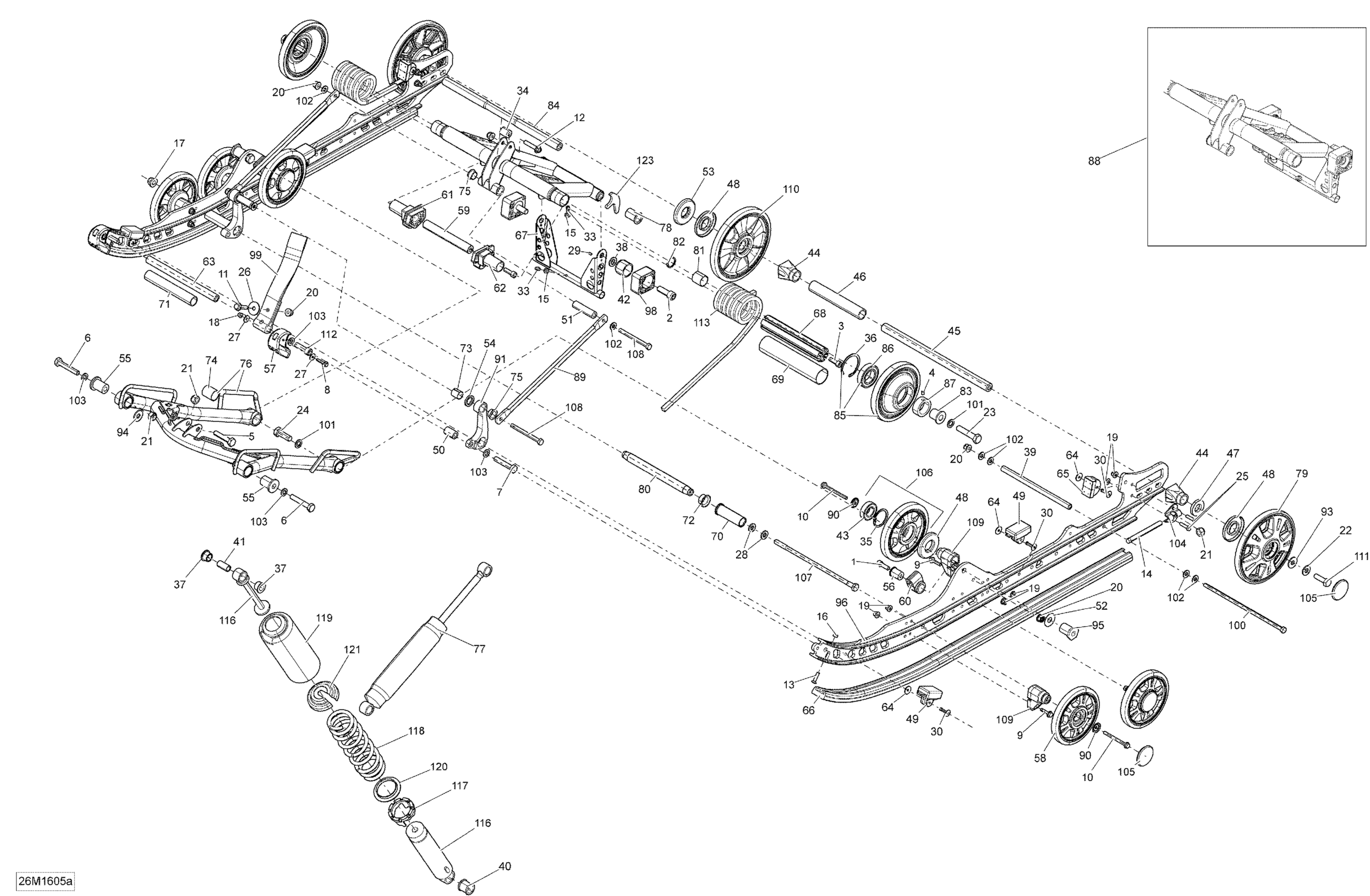

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 Rear Suspension - Package Sport Diagram

#

Description
Price

1

Socket Screw M8 X 25

205082554

$2.00

2

Socket Head Screw M12 X 35

205523554

$4.15

3

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

4

Socket Set Screw M6 X 8

206260844

$1.43

5

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

6

Hex. Cap Screw M10 X 60

207006056

$7.09

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

8

Hex. Flange Screw M5 X 25

207652544

$0.48

9

Hex. Flange Screw M6 X 25

207662556

$4.15

10

Hex. Flange Screw M6 X 70

207667056

$4.15

11

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

12

Hex. Flange Screw M8 X 40

207684044

$1.43

13

Phillips Screw M6 X 25

208562531

$2.00

14

Hex Screw M10 x 100

230100054

$6.07

15

Hexagonal Nut M6

232061404

$0.31

16

Elastic Stop Nut M6

232561414

$1.78

17

Flange Elastic Nut M10

233201466

$3.01

18

Hex. Flange Elastic Nut M5

233251414

$1.91

19

Hex. Flange Elastic Nut M6

233261466

$1.91

20

Elastic Flange Nut M8

233281466

$0.96

21

Elastic Locking Nut M10

233601466

$2.00

22

Conical Spring Washer 10 mm

234201474

$1.60

23

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$11.18

24

Hex. Cap Screw M12 X 35

250000537

$3.01

25

Hex Screw M6 X 25

250000619

$0.96

26

Flat Washer 8 mm

250200128

$2.00

27

Washer

250200140

$0.96

28

Flat Washer

250200143

$3.01

29

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

30

Pop Rivet 3/16"

293150013

$1.27

33

Grease Fitting

408200700

$3.21

34

Bushing

414936000

$11.21

35

Retaining Ring

415129371

$8.66

36

Retaining Ring

415129598

$8.66

37

Urethane Bushing

503189117

$6.67

38

Washer | 7415/7416. 7417/7418.

503189148

$2.64

39

Pivot Arm Axle

503189156

$20.12

40

Bushing

503189271

$10.15

41

Bushing | Includes 240d to 240d1

503189282

$4.06

42

Block Guide

503189488

$36.54

43

Ball Bearing | Package-STD

503190396

$8.18

44

Rear Wheel Spacer

503190428

$5.88

45

Rear Axle

503190429

$58.18

46

Spacer

503196317

$14.90

47

Washer

503190432

$12.15

48

Labyrinth Seal

503190434

$4.16

49

Rubber Stopper

503190576

$9.93

50

Central Shock Axle

503190604

$10.84

51

Axle Bar (Long)

503190643

$14.90

52

Washer

503190656

$2.82

53

Labyrinth Seal

503190682

$5.67

54

Plastic Spacer

503190694

$1.99

55

Axle

503190698

$17.13

56

Spring Support Kit

861805547

$7.90

57

Runner Protector

503191137

$9.90

58

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

59

Spring Cam Axe

503191178

$26.84

60

Spring Support Kit

861805547

$7.90

61

RH Spring Cam

503191190

$13.37

62

LH Spring Cam

503191191

$13.46

63

Axle Strap

503191260

$28.33

64

Washer

503191273

$1.03

65

Rubber Stopper

503191291

$17.88

66

Black Slider Shoe 120"

503191301

$26.84

67

Pivot Arm

503191302

$114.90

68

Spring Axle

503191344

$33.55

69

Plastic Bushing

503191345

$6.69

70

Center Bushing

503191351

Unavailable

71

Spacer

503196943

$7.36

72

Bushing

503191552

$5.54

73

Bushing

503191553

$5.54

74

Bushing

503191554

$5.70

75

Swivel Bushing

503191555

$5.54

76

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$429.82

77

Rear Shock

503191582

$152.96

78

Cushion

503191640

$5.54

79

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$48.48

80

Center Shaft

503191764

$58.93

81

Bushing

503191773

$13.19

82

Washer

503191774

$2.18

83

Bushing

503191775

$14.81

84

Upper Shaft

503191776

$44.75

85

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$35.04

86

Ball Bearing

503191778

$11.12

87

Retaining Ring

503191782

$13.54

88

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$214.15

89

Link Rod

503191802

$26.09

90

Wheel Cup M6

503191820

$4.52

91

LH Rocker Arm

503191890

$59.67

91

RH Rocker Arm

503191894

$59.67

93

Washer

503191910

$2.18

94

Washer

503191926

$1.52

95

Lower Axle

503191966

$14.90

96

Suspension Rail 120

503196633

$217.13

98

RH Block, 4 Positions

503192300

$23.85

98

LH Block, 4 Positions

503192301

$23.85

99

Stopper Strap

503192360

$19.37

100

Bolt M8 X 248mm

503192440

$29.07

101

Washer

503192491

$4.25

102

Washer

503192494

$3.01

103

Washer

503192496

$0.73

104

Tensioner

503192583

$5.67

105

Black, Wheel Cap

503192771

$2.21

106

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

107

Bolt M10 X 251MM

503193227

$15.64

108

Screw M8 X 90

503193372

$4.15

109

Casted Support

503193894

$12.37

110

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

111

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

112

Socket Head Screw M10 X 35

205503554

$7.09

113

Black LH Spring, Square

503191613

$58.18

113

Black RH Spring, Square

503191612

$58.18

116

Center Shock

503191590

$152.96

117

Adjustment Cam

505073625

$11.82

118

Black, Spring

503191329

$64.90

119

Protector

503193663

$34.30

120

Spring Guide

503191872

$2.12

121

Spring Stopper

706200881

$11.82

123

Lower Shaft

503192330

$44.75
