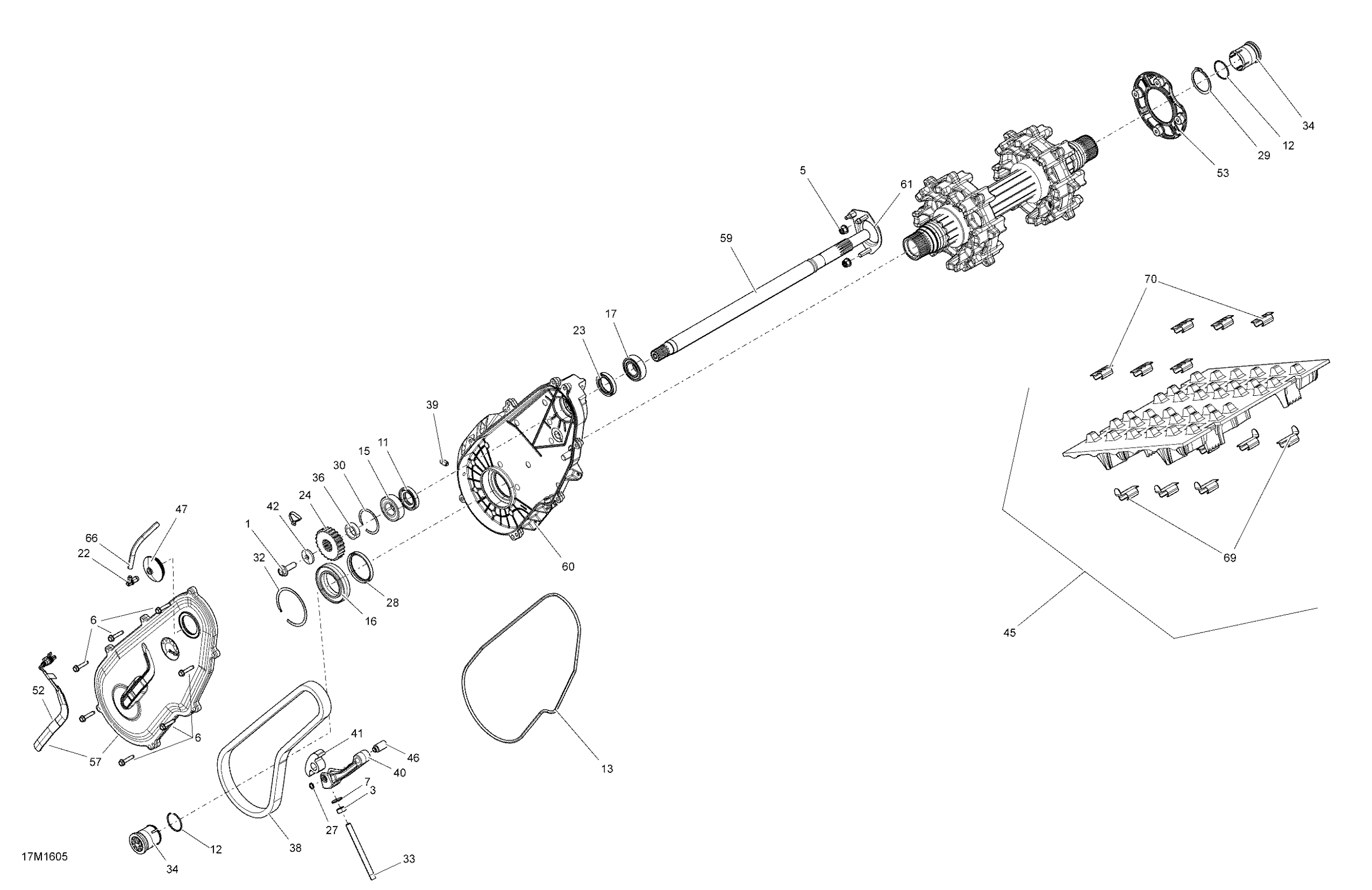

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 Drive - 600 CARB Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

3

Hex. Nut M10 X 1.5

232006414

$1.27

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.00

7

Bonded Washer

250200100

$2.00

11

Oil Seal

293200168

$13.24

12

O-Ring

293300122

$2.00

13

Tight Seal

293300130

$7.09

15

Ball Bearing

293350115

$10.82

16

Ball Bearing

293350059

$29.82

17

Ball Bearing

293350074

$38.49

22

Male Connector

414580700

$3.88

24

Sprocket 25 Teeth

504153912

$41.01

27

Circlip

504152282

$3.01

28

Oil Seal

293200159

$12.73

29

Circlip

504152572

$6.07

30

Circlip

504152576

$8.45

32

Circlip

504152582

$8.45

33

Adjustment Screw

504152602

$9.33

34

Magnetic Cap

504152619

$22.36

36

Shim

504152628

$8.15

38

Drive Chain, 104 Links

504152629

$168.63

39

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.69

40

Tensioner chain

504153429

$13.36

41

Slider Chain

504152739

$65.64

42

Spring Washer M10

504152784

$6.07

45

Track Ass'y 15"X120"X1.2RS" | Includes 3200 to 3200b

504152606

$859.99

46

Tensioner Axle

504152841

$14.21

47

Cap

504152860

$18.63

52

Rotation Sensor

504152896

$34.30

53

Retaining Ring

504153886

$17.88

54

Kit Sprocket This part replaces 504152593.

861805538

$148.48

57

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$314.90

59

Countershaft

504153000

$551.46

60

Chaincase

504153181

$314.90

61

Bearing Housing

504153185

$27.58

66

Polyurethane Hose 10000Mm Long

219704410

$52.96

69

Track Guide | Track Width 16''

415129528

$3.03

70

Cleat

504152651

$7.97
