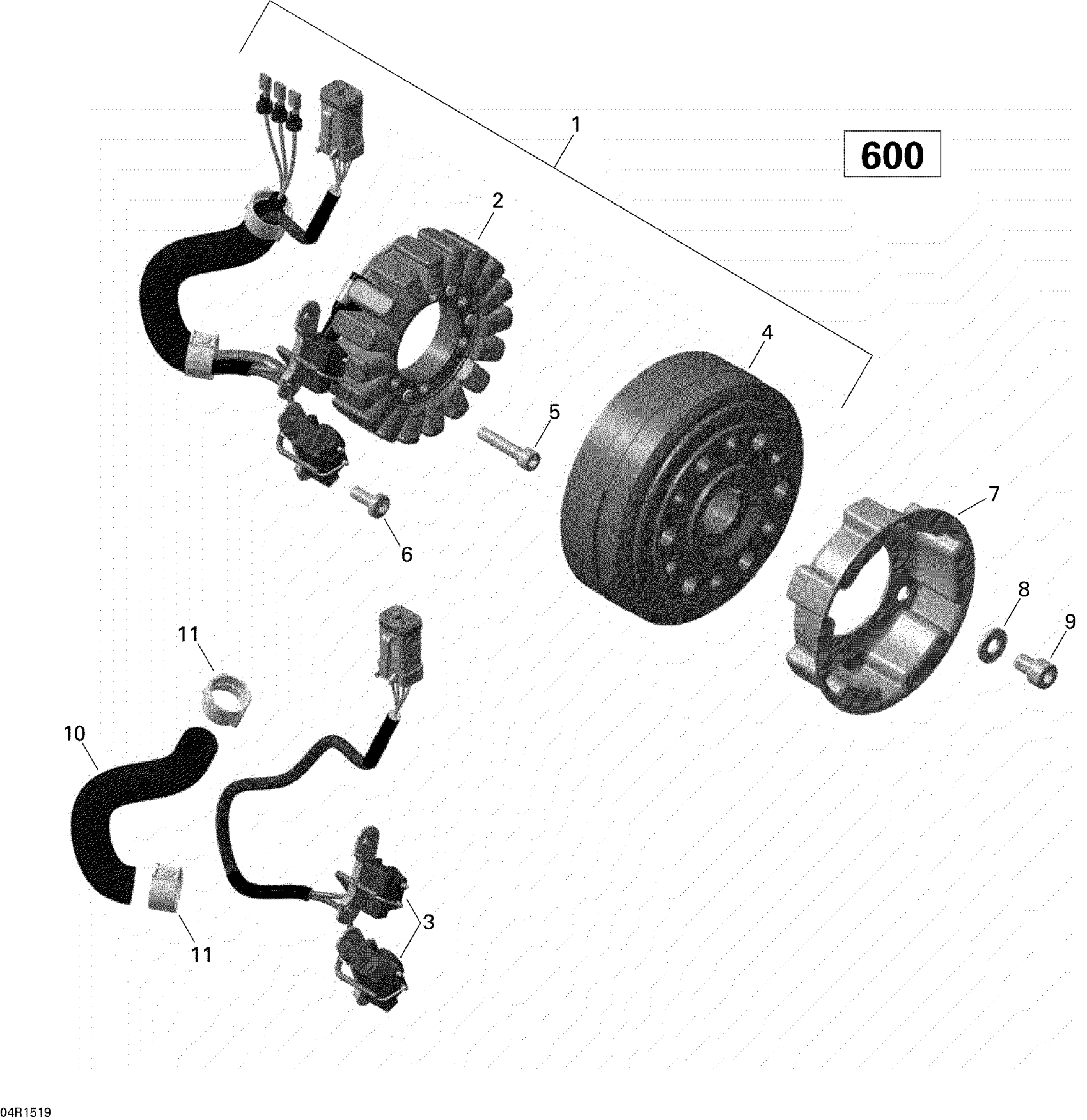

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 03- Magneto - 600 CARB Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate | Includes 2 to 3

420889904

$319.49

3

Pickup Ass'y

420966804

$219.99

4

Flywheel

420665722

$547.99

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Torx Screw M6 X 16

420640324

$2.11

7

Starting Pulley

420852590

$29.49

8

Flat Washer

420827405

$1.69

9

Socket Head Screw M8 X 12

420841520

$1.69

10

Tube

420460871

$2.11

11

Conduit Clip

420960896

$2.21
