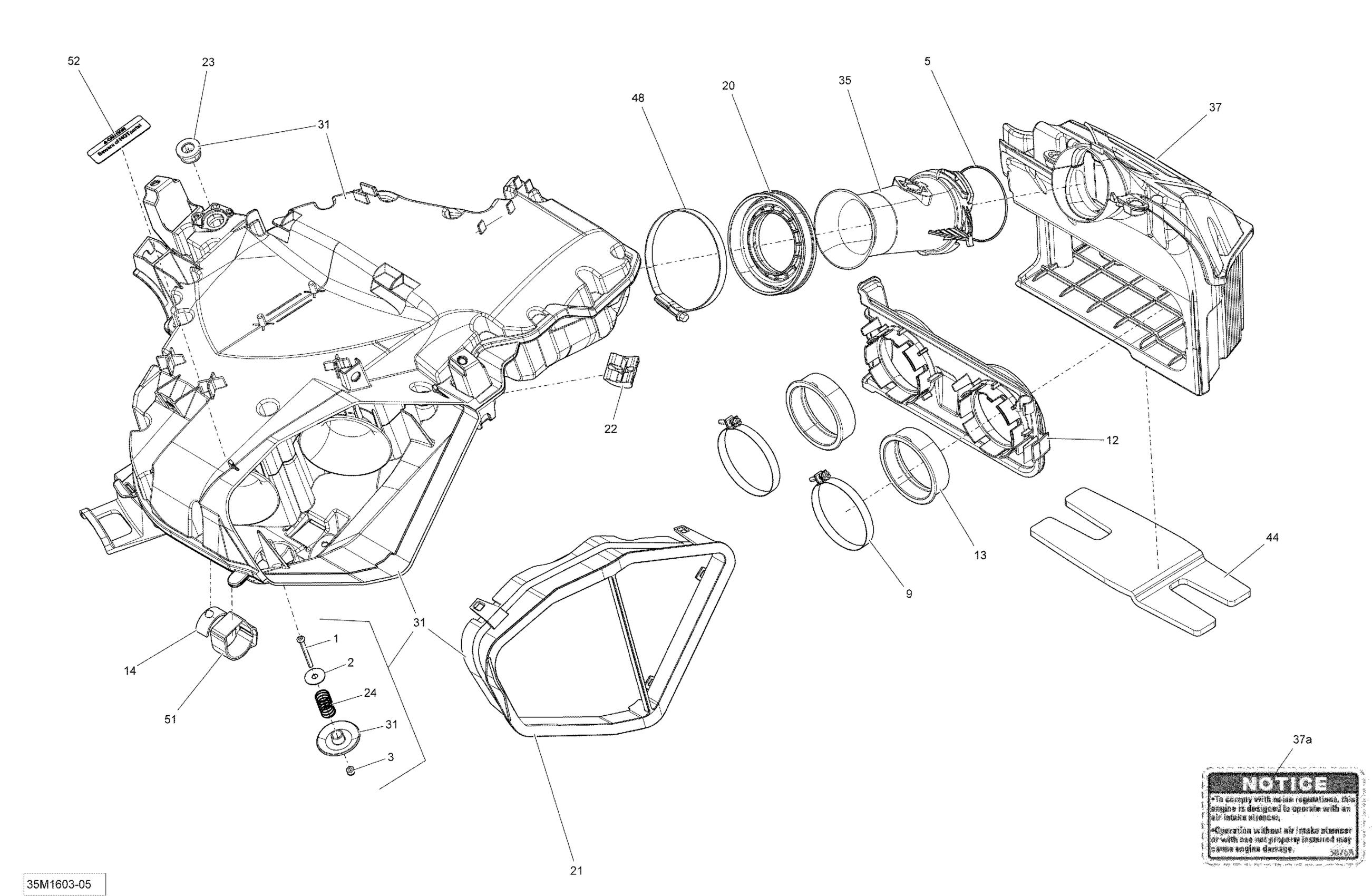

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 Air Intake System - 600 CARB Diagram

Description

Price

Socket Head Screw M4 X 40 | X

205444086

$1.63

Flat Washer

224060201

$1.12

Elastic Stop Nut M4

232541414

$0.55

O-Ring

293300115

$3.01

Gemi Clamp

508000346

$9.03

Plate Adapter

508000500

$17.88

Air Intake Adapter

508000501

$17.13

Stopper

508000537

$7.13

Boot

508000567

$16.39

Air Intake Filter

508000568

$26.09

Bumper

508000572

Unavailable

Grommet

508000574

$7.13

Spring

508000576

$7.13

Secondary Chamber Ass'y | Includes 10 to 10f

508000624

$141.76

Flute

508000661

$12.21

Primary Chamber Ass'y

508000680

$67.13

37a

Notice Decal, Air Intake Silencer

516005876

$4.00

Insulated Foam

508000739

$8.13

Norma Clamp

514052924

$12.15

Velcro Strip

508000820

$7.13

Caution Decal Hot Parts

516005280

Unavailable
