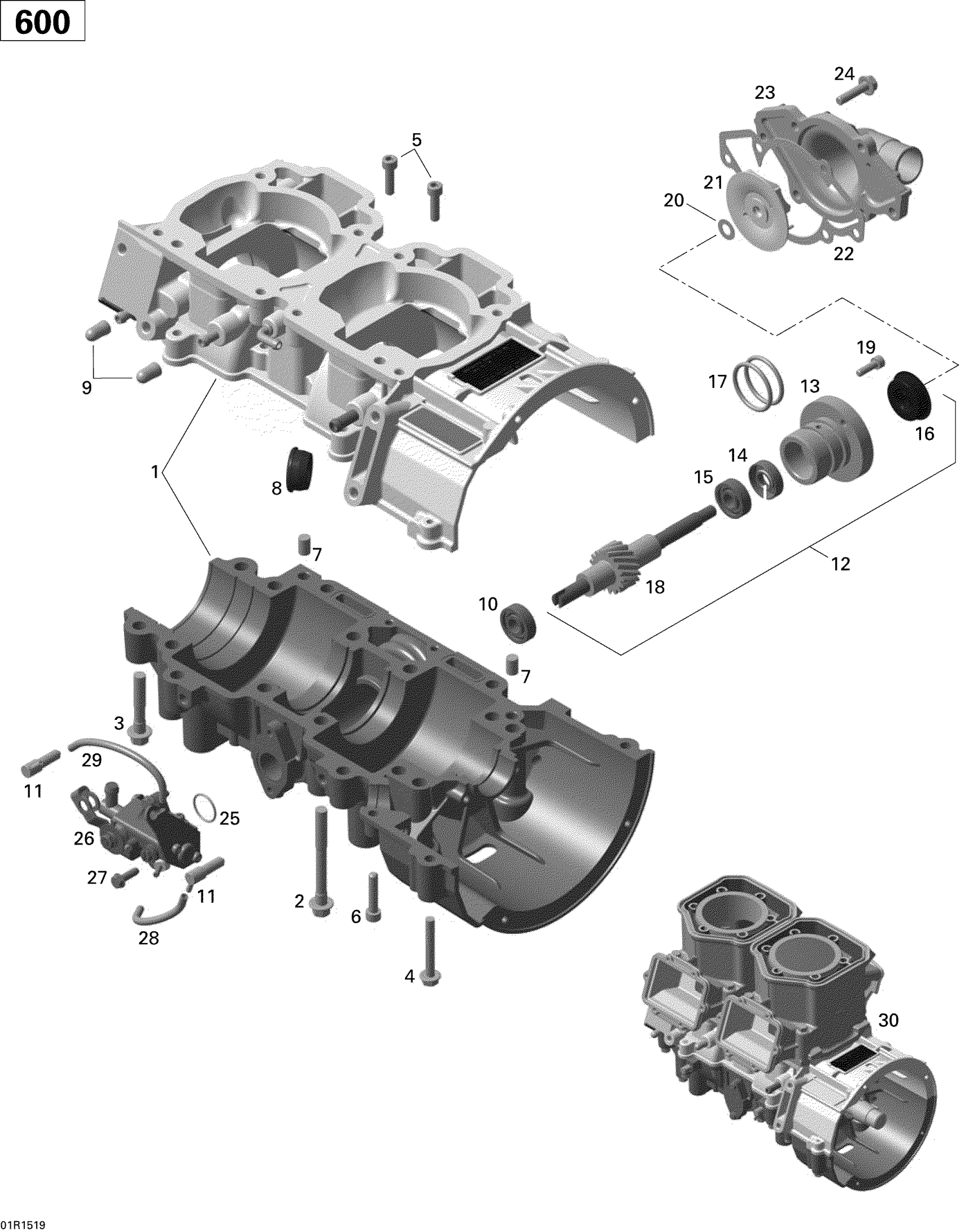

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 01- Crankcase, Water Pump and Oil Pump - 600 CARB Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 11

420892241

$1.00

2

Hex. Collar Screw M8 X 75

420640836

$13.16

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

6

Socket Head Screw M6 X 30

205063044

$1.69

7

Center Pin 8 X 12

420632010

$4.01

8

Cable Grommet

420860965

$14.28

9

Cap

420960770

$4.12

10

Ball Bearing

420232100

$20.99

11

Check Valve

420956511

$35.99

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$15.36

15

Ball Bearing

420232100

$20.99

16

Rotary Seal

420650371

$43.49

17

O-Ring

420950890

$4.44

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

$1.90

20

Thrust Washer

420227945

$4.01

21

Water Impeller

420222505

$19.99

22

Gasket This part replaces 420931810.

420931811

$13.76

23

Water Pump Housing

420922630

$61.49

24

Hex. Screw M6 X 25

420240034

$1.90

25

O-Ring

293300041

$8.57

26

Oil Pump Ass'y

420888780

$409.99

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Hose 1500Mm Long

219704404

$17.26

29

Oil Hose 1500Mm Long

219704404

$17.26

30

Short Block 593

420059312

$2.00

30

Short Block 593

420059312

$2.00
