Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Hex. Flange Screw, Scotch Grip

207584034

$2.11

3

Hex. Flange Screw M6 X 16

207661644

$0.74

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M6 X 25

207662544

$0.64

6

Flat Washer

224061201

$1.37

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Elastic Flange Nut M6 X 1.0

233261416

$2.11

9

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Conical Spring Washer M8

234281474

$1.48

11

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.11

12

Clinch Stud M6 X 20

250300027

$2.09

13

Clinch Stud M6 X 30

250300031

$2.09

14

Clinch Stud

250300038

$4.29

15

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

16

Pop Rivet 3/16”

293150108

$1.19

18

Hemlock Rivet, 6.5 mm

293150119

$4.29

19

Hemlock Rivet 6.5 mm

293150120

$7.41

20

Stavex Rivet

293150144

$0.82

28

Henrob Rivet

293150146

$2.09

30

Hemlock Rivet, 6.4 mm

293150174

$7.86

32

Monobolt Rivet 6.4

293150182

$3.09

33

Monobolt Rivet, 4.8 mm

293150191

$0.99

35

Insert M5 X 0.8

293450268

$2.09

37

Full Moon Dart 8 mm

293730041

$2.21

37

Black, Dart 8 mm

293730047

$2.21

38

Full Moon Dart 5 mm

293730042

$2.21

39

Black, Plug

293730052

$9.19

40

Full Moon Dart 10 mm

293730059

$4.55

40

Black, Dart 10 mm

293730060

$4.55

42

Avex Rivet

390909100

$0.30

43

Avex Rivet

390909200

$0.30

44

Insert

293450275

$12.99

48

Leg Cushion

505073317

$8.66

49

Vibration Damper

512061516

$61.99

50

Washer

517124300

$0.19

53

Clear Rear Bumper

518324980

$99.49

53

Black Rear Bumper 137"

518325481

$148.99

53

Black, Rear Bumper | Except Package Iron Dog

518327637

$164.99

55

Adhesive Patch

518325560

$4.69

58

RH Deflector, Black Polypropylene

518325782

$13.99

58

LH Deflector, Black Polypropylene

518325783

$13.99

60

RH Rear Base

518325973

$21.99

60

LH Rear Base | Includes 10v to 10x

518325974

$21.99

62

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

$69.99

64

Engine Support

518326178

$64.49

65

Front Member

518326198

$64.99

66

RH Side Member

518326328

$284.99

67

LH Side Member

518326330

$284.99

68

Center Column Support

518326355

$22.49

69

Rear Member

518326559

$264.99

70

Rear Radiator Ass'y

518326666

$720.49

70

REAR RADIATOR 128'' - Call your local BRP dealership

518328648

Unavailable

72

RH Slide Bracket

518324885

$39.99

72

LH Slide Bracket

518324886

$39.99

72

RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326654

Unavailable

72

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326655

Unavailable

72

RH Slide Suspension Bracket | Deep Black Models Except Package XRS

518328344

$39.99

72

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership | Sunburst Yellow Models

518328345

Unavailable

73

Seal

518326656

$9.19

76

Upper Column Support

518326848

$15.49

78

RH Reinforcement, Running Board

518326937

$27.99

78

LH Reinforcement, Running Board

518326938

$27.99

79

RH Roller

518328120

$189.99

79

LH ROLLER - Call your local BRP dealership

518328121

$189.99

79

RH ROLLER - Call your local BRP dealership | Package TNT

518326942

Unavailable

79

LH ROLLER - Call your local BRP dealership | Package TNT

518326943

Unavailable

79

RH Roller | Sunburst Yellow Models

518327472

$194.99

79

LH Roller | Sunburst Yellow Models

518327473

$194.99

83

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

86

Rear Cap

518327105

$22.49

87

Sub A Support

518327145

$79.99

88

E Module | Includes 10ad to 10ap

518328078

$519.99

89

Front Member

518327565

$349.99

92

Front Suspension Support

518327487

$289.99

93

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

99

Front Radiator Ass'y | Includes 10a to 10b

518327907

$529.99

102

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

105

FRAME ASS'Y 120 - Call your local BRP dealership | Package-Sport

415129933

Unavailable

105

FRAME ASS'Y 120 - Call your local BRP dealership | Package-TNT

415129934

Unavailable

105

BLACK FRAME 129 900ACE - Call your local BRP dealership | Deep Black Models

415130095

Unavailable

111

LH Stirup | Includes 10s to 10t

518328528

$169.49

122

RH Stirup | Includes 10p to 10q

518328942

$169.49

123

Full Moon Cap

520000567

$10.99

123

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$9.99

126

Torx Truss Screw M6 X 12

250000767

$2.00

127

Hex. Flange Screw M6 X 16

210261650

$1.67

128

Panel Nut M5 X 0.8

250000958

$4.23

129

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

130

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

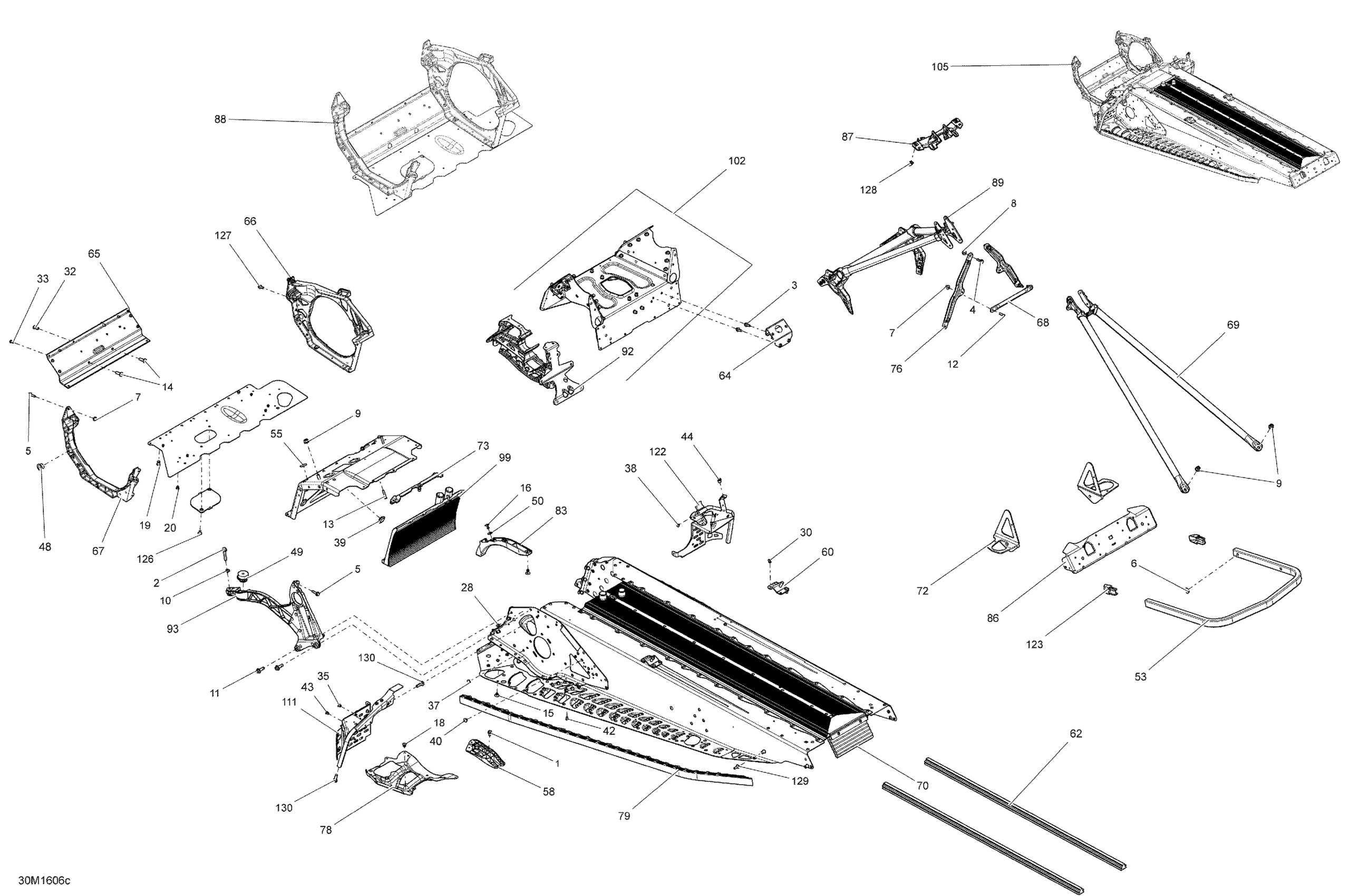

Ski-Doo MXZ - 4-STROKE, 2016 09- Frame - 600-900 ACE Diagram
