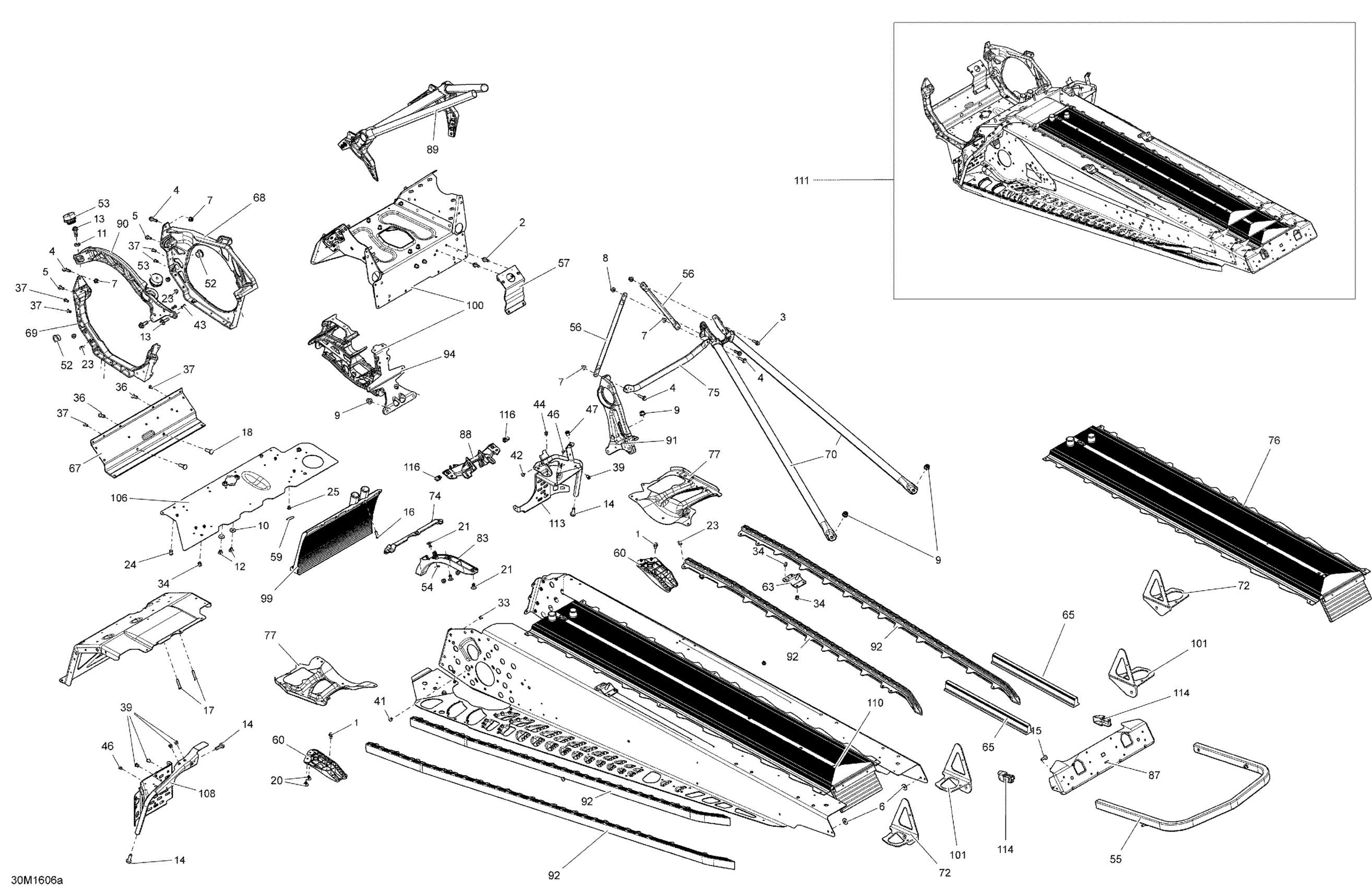

Ski-Doo MXZ - 4-STROKE, 2016 Frame - 1200 4-TEC Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

2

Hex. Flange Screw M6 X 16

207661644

$0.61

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M6 X 25

207662544

$0.53

5

Hex. Flange Screw M6 X 16

210261650

$1.22

6

Flat Washer

224061201

$1.11

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Elastic Flange Nut M6 X 1.0

233261416

$1.74

9

Hex. Flange Elastic Nut M8

233281414

$1.14

10

Flat Washer 6 mm

234062410

$0.64

11

Conical Spring Washer M8

234281474

$1.25

12

Torx Truss Screw M6 X 10

250000349

$7.09

13

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

14

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

15

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

16

Clinch Stud M6 X 20

250300027

$1.87

17

Clinch Stud M6 X 30

250300031

$1.87

18

Clinch Stud

250300038

$3.88

20

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

21

Pop Rivet 3/16”

293150108

$1.19

23

Hemlock Rivet, 6.5 mm

293150119

$3.88

24

Hemlock Rivet 6.5 mm

293150120

$7.01

25

Stavex Rivet

293150144

$0.75

25

Stavex Rivet

293150144

$0.75

33

Henrob Rivet

293150146

$1.87

34

Hemlock Rivet, 6.4 mm

293150174

$6.24

34

Hemlock Rivet, 6.4 mm

293150174

$6.24

36

Monobolt Rivet 6.4

293150182

$2.82

37

Monobolt Rivet, 4.8 mm

293150191

$0.93

39

Insert M5 X 0.8

293450268

$1.90

41

Black, Dart 8 mm

293730047

$2.07

41

Black Dart 5 mm

293730053

$3.73

41

Black, Dart 10 mm

293730060

$4.28

42

Full Moon Dart 5 mm

293730042

$2.06

43

Pop Rivet 3/16”

390407200

$0.64

44

Avex Rivet

390909100

$0.28

44

Avex Rivet

390909100

$0.28

46

Avex Rivet

390909200

$0.25

47

Insert

293450275

$9.89

52

Leg Cushion

505073317

$5.75

53

Vibration Damper

512061516

$55.94

54

Washer

517124300

$0.16

55

Black Rear Bumper 137"

518325481

$150.72

56

Upper Lateral Column Support

518325114

$20.12

57

MAG Engine Support

518325371

$73.10

59

Adhesive Patch

518325560

$4.21

60

RH Deflector, Black Polypropylene

518325782

$11.42

60

LH Deflector, Black Polypropylene

518325783

$11.42

63

RH Rear Base

518325973

$17.88

63

LH Rear Base | Includes 10v to 10x

518325974

$17.88

65

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

67

Front Member

518326198

$58.18

68

RH Side Member

518326328

$252.21

69

LH Side Member

518326330

$252.21

70

Rear Member

518326559

$237.28

72

RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326654

Unavailable

72

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326655

Unavailable

74

Seal

518326656

$8.18

75

Center Column Support

518326657

$17.88

76

Rear Radiator Ass'y

518326666

Unavailable

77

RH Reinforcement, Running Board

518326937

$24.60

77

LH Reinforcement, Running Board

518326938

$24.60

83

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

87

Rear Cap

518327105

$20.12

88

Sub A Support

518327145

$76.84

89

Front Member

518327565

$306.69

90

Brace Ass'y | Includes 200 to 200a

518327392

$179.82

91

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

92

RH ROLLER - Call your local BRP dealership | Package TNT

518326942

Unavailable

92

RH Roller | Sunburst Yellow Models

518327472

$175.34

92

LH ROLLER - Call your local BRP dealership | Package TNT

518326943

Unavailable

92

LH Roller | Sunburst Yellow Models

518327473

$175.34

94

Front Suspension Support

518327487

$259.67

99

Front Radiator Ass'y | Includes 10a to 10b

518327907

$502.21

100

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

101

RH Slide Suspension Bracket | Deep Black Models Except Package XRS

518328344

Unavailable

101

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership | Sunburst Yellow Models

518328345

Unavailable

106

Module E

518328947

$880.57

108

LH Stirup | Includes 10s to 10t

518328528

$155.94

110

REAR RADIATOR 128'' - Call your local BRP dealership

518328648

Unavailable

111

FRAME - Call your local BRP dealership | Package TNT

415130019

Unavailable

111

BLACK FRAME 129 - Call your local BRP dealership | Vehicle 129" Frame Deep Black Models

415130112

Unavailable

113

RH Stirup | Includes 10p to 10q

518328942

$155.94

114

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.45

116

Panel Nut M5 X 0.8

250000958

$3.48
