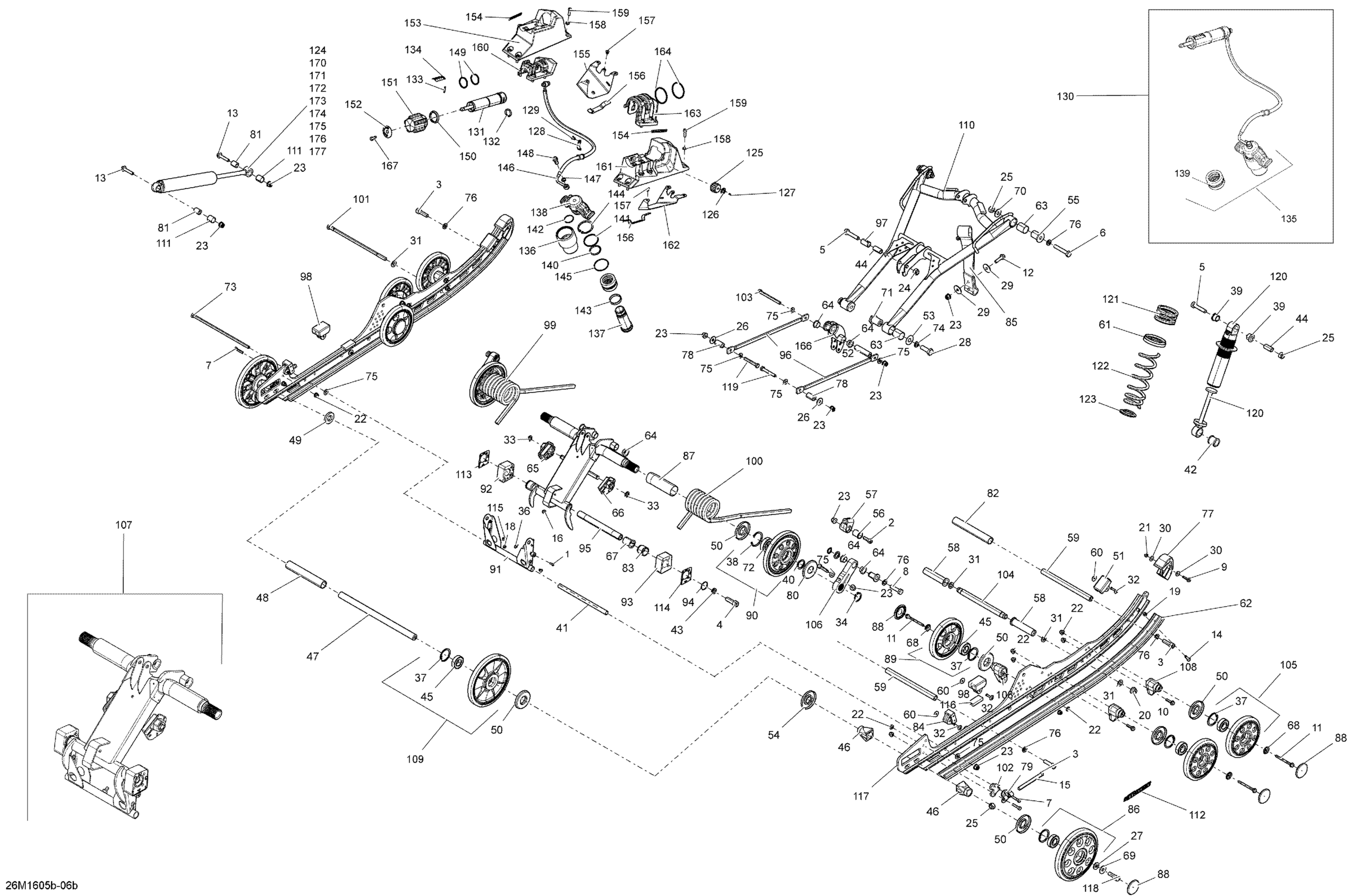

Ski-Doo MXZ - 4-STROKE, 2016 Rear Suspension - Package TNT-X Diagram

#

Description
Price

1

Socket Head Screw M4X 10

205041060

$1.74

2

Socket Screw M8 X 25

205082554

$1.74

3

Socket Head Screw M10 X 35

205503554

$6.18

4

Socket Head Screw M12 X 35

205523554

$4.28

5

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

6

Hex. Cap Screw M10 X 60

207006056

$6.18

7

Hex. Cap Screw M6 X 30

207063054

$4.41

8

Cap Screw Hex. M10 X 40

207204056

$6.18

9

Hex. Flange Screw M5 X 25

207652544

$0.42

10

Hex. Flange Screw M6 X 25

207662556

$3.61

11

Hex. Flange Screw M6 X 70

207667056

$3.61

12

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

13

Hex. Flange Screw M8 X 40

207684044

$1.25

14

Phillips Screw M6 X 25

208562531

$1.74

15

Hex Screw M10 x 100

230100054

$5.29

16

Hexagonal Nut M6

232061404

$0.32

18

Elastic Stop Nut M5

232551414

$0.72

19

Elastic Stop Nut M6

232561434

$1.55

20

Flange Elastic Nut M10

233201466

$2.63

21

Flange Elastic Nut M5

233251434

$1.66

22

Hex. Flange Elastic Nut M6

233261466

$1.66

22

Hex. Flange Elastic Nut M6

233261466

$1.66

23

Elastic Flange Nut M8

233281466

$0.83

24

Elastic Locking Nut M10 X 1.5

233601416

$1.68

25

Elastic Locking Nut M10

233601466

$1.74

26

Flat Washer 8 mm

234082410

$1.11

27

Conical Spring Washer 10 mm

234201474

$1.39

28

Hex. Cap Screw M12 X 35

250000537

$2.63

29

Flat Washer 8 mm

250200128

$1.74

30

Washer

250200140

$0.83

31

Flat Washer

250200143

$2.63

32

Pop Rivet 3/16"

293150013

$1.11

33

E-Circlip

293370013

$0.62

34

Retaining Ring

293370080

$2.12

35

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

36

Grease Fitting

408200700

$2.80

37

Retaining Ring

415129371

$8.92

38

Retaining Ring

415129780

$13.88

39

Urethane Bushing

503189117

$6.88

40

Axle Spring

503189146

$7.54

41

Pivot Arm Axle

503189156

$20.74

42

Bushing

503189271

$10.46

43

Washer

503189276

$3.20

44

Bushing | Includes 240d to 240d1

503189282

$4.18

45

Ball Bearing | Package-STD

503190396

$7.12

46

Rear Wheel Spacer

503190428

$6.06

47

Rear Axle

503190429

$59.97

48

Spacer

503196317

$15.35

49

Washer

503190432

$12.52

50

Labyrinth Seal

503190434

$4.29

51

Rubber Stopper

503190576

$10.23

52

Axle Bar (Long)

503190643

$15.35

53

Washer

503190656

$2.91

54

Labyrinth Seal

503190682

$5.85

55

Axle

503190698

$17.66

56

Spring Support Kit

861805547

$8.14

57

Spring Support Kit

861805547

$8.14

58

Center Bushing

503191259

$8.97

59

Axle Strap

503191260

$29.20

60

Washer

503191273

$1.06

61

Spring Spacer

503191281

$7.66

62

Black Slider Shoe 120"

503191301

$27.66

63

Bushing

503191554

$5.88

64

Swivel Bushing

503191555

$5.71

64

Swivel Bushing

503191555

$5.71

64

Pop Rivet 3/16"

390402200

$0.26

65

LH Cam Adjuster

503191565

$13.95

66

RH Cam Adjuster

503191566

$13.95

67

Cushion

503191640

$5.71

68

Wheel Cup M6

503191820

$4.66

69

Washer

503191910

$2.25

70

Washer

503191926

$1.57

71

Lower Axle

503191966

Unavailable

72

Ball Bearing

503193548

$16.89

73

Bolt M8 X 248mm

503192440

$29.97

74

Washer

503192491

$4.38

75

Washer

503192494

$3.11

76

Washer

503192496

$0.75

77

Slide Protector

503192530

$16.89

78

Axle Bar

503192555

$11.40

79

Tensioner

503192583

$5.85

80

Labyrinth Ring

503192592

$4.66

81

Axle Shock Absorber

503196509

$11.98

82

Spacer

503196943

$7.58

83

Guide Block

503192749

$5.85

84

Rubber Stopper

503192750

$12.65

85

Stopper Strap

503192759

$25.35

86

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$49.97

87

Bushing

503192767

$15.26

88

Black, Wheel Cap

503192771

$2.28

89

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$36.12

90

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

91

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

92

LH Cam Block

503192918

$12.65

93

RH Cam Block

503192919

$12.65

94

O-Ring

503192921

$2.25

95

Lower Shaft

503192981

$17.66

96

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

97

Bushing

503193037

$15.35

98

Rubber Stopper Ass'y

503195523

$5.25

99

Black, LH Spring Square

503193158

$77.66

100

Black, RH Spring Square

503193159

$77.66

101

Bolt M10 X 251MM

503193227

$16.12

102

Spacer

503193250

$13.95

103

Screw M8 X 90

503193372

$4.28

104

Pivot Axle

503193435

$38.43

105

Black, Wheel Ass'y 141 mm | Included 440 to 440b

503193477

$36.12

106

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

107

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$267.66

108

Casted Support

503193894

$12.75

109

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

110

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

111

Leg Cushion

505072663

$7.40

112

Runner Decal

516007816

$9.11

113

LH Block Sticker Decal

516004900

$16.12

114

RH Block Sticker Decal

516004901

$16.12

115

Flat Washer

517225900

$0.17

116

Reinforcement Stopper

572084800

$5.25

117

YELLOW RUNNER 120 - Call your local BRP dealership

503193950

Unavailable

117

RAIL_SUSPENSION 120 B-160 - Call your local BRP dealership

503193526

Unavailable

118

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

119

Hex. Screw M8 X 55

207085586

$6.11

120

Central Shock

503193283

$416.12

121

Black, Spring (51mm) Short

503193837

$66.89

122

Deep Black, Spring (189mm) Long

503193160

$88.43

122

Black, Spring (189mm) Long

503193067

$88.43

123

Spring Stopper

503194270

$16.89

124

Rear Shock HPGTA | Package TNT

503193284

$416.12

124

REAR SHOCK - Call your local BRP dealership | Includes 5500 to 5500,007

503194132

Unavailable

124

REAR SHOCK - Call your local BRP dealership | Includes 5500 to 5500,009

503194135

Unavailable

125

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

126

Shock Knob Adjustment Decal

516004752

$12.95

127

Allen Screw M3 X 0.5 X 10

250000644

$1.74

128

Plate

503193166

$15.35

129

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

130

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

131

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$288.43

132

O-Ring

293300036

$8.89

133

Spring Pin

250400014

$2.72

134

Adjustment Decal

516004917

$42.28

135

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

136

Cylinder

503192795

$66.89

137

Piston

503193779

$130.74

138

Spring Bracket

503192633

$155.35

139

Holder | Included 7000b.d to 7000b.d.e

503193485

$123.82

140

O-Ring

293300068

$5.29

141

O-Ring

503192832

$2.25

142

O-Ring

293300039

$9.31

143

Wear Ring

503192833

$15.35

144

Retaining Ring

503192834

$4.66

145

O-Ring

503193014

$2.25

146

Connector Hose

503193476

$46.12

147

Copper Washer

705601628

$4.34

148

Banjo Bolt

705600628

$11.05

149

O-Ring

293250269

$2.25

150

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

151

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$25.35

152

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

153

LH Support

503192811

$35.35

154

Decal

516006369

$12.65

155

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

156

Retaining Plate

503195712

$17.66

157

Stavex Rivet

293150144

$0.77

158

Stainless Flat Washer M6

234061600

$0.25

159

Socket Head Screw M6 X 20

205062060

$1.92

160

LH Half Housing

503192956

$10.23

161

RH Support

503192810

$34.58

162

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

163

RH Half-Housing

503192957

$11.45

164

O-Ring

293250085

$0.83

166

Rocker

503194079

$78.43

167

Socket Screw M4 X 16 (Scotch Grip)

205541660

$1.63

170

O-Ring

415093807

$34.58

171

Piston Ring | Not Shown

415093806

$14.97

172

Air Valve

505070398

$17.66

173

Screw | Not Shown

505070399

$4.00

174

O-Ring

505070400

$4.38

175

O-Ring

415093804

$4.38

176

Bolt

415093810

$14.97

177

O-Ring

415038700

$39.97
