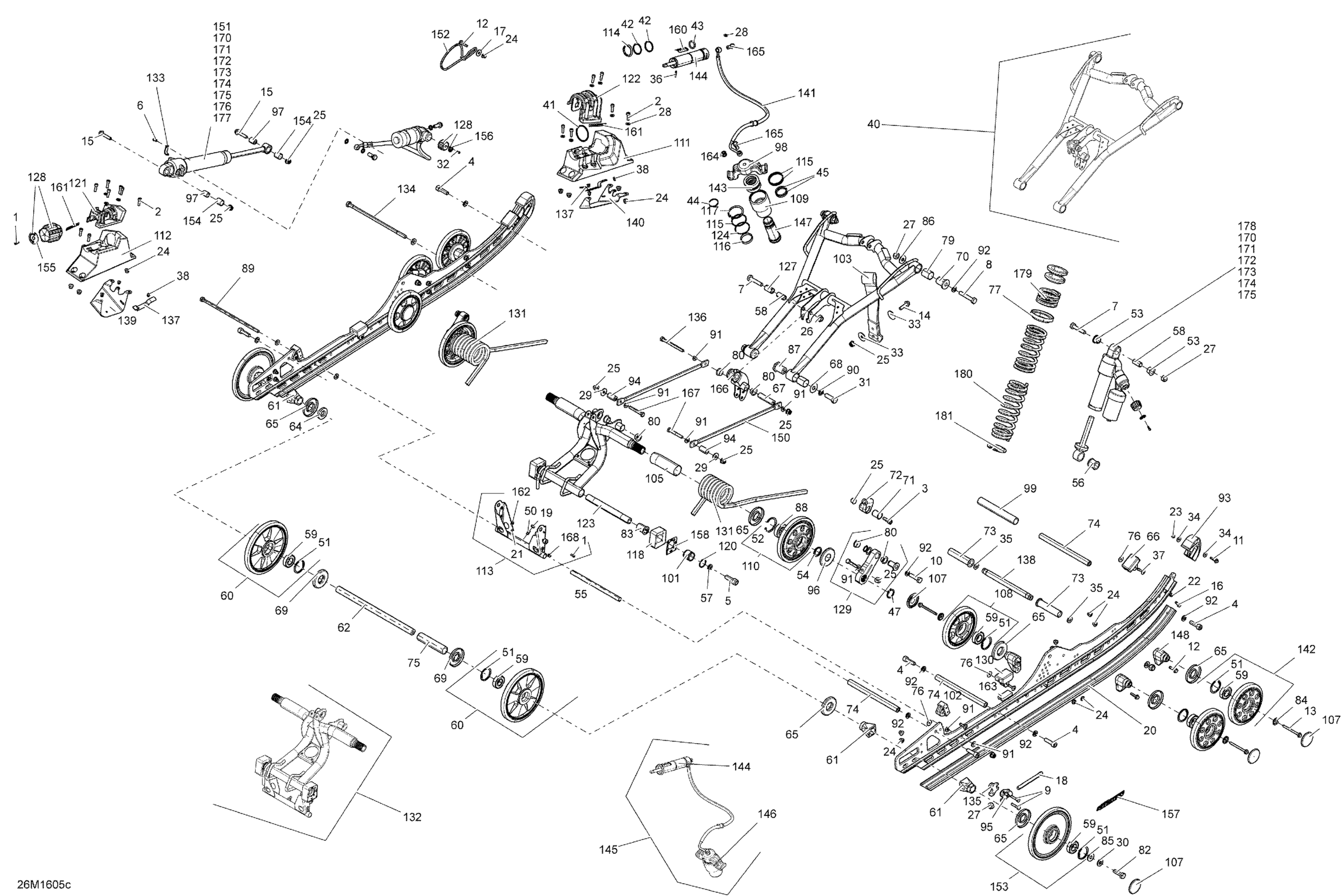

Ski-Doo MXZ - 4-STROKE, 2016 Rear Suspension - Package Blizzard Diagram

#

Description
Price

1

Socket Screw M4 X 16 (Scotch Grip)

205541660

$1.63

1

Socket Head Screw M4X 10

205041060

$1.74

2

Socket Head Screw M6 X 20

205062060

$1.92

3

Socket Screw M8 X 25

205082554

$1.74

4

Socket Head Screw M10 X 35

205503554

$6.18

5

Socket Head Screw M12 X 35

205523554

$4.28

6

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

7

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

8

Hex. Cap Screw M10 X 60

207006056

$6.18

9

Hex. Cap Screw M6 X 30

207063054

$4.41

10

Cap Screw Hex. M10 X 40

207204056

$6.18

11

Hex. Flange Screw M5 X 25

207652544

$0.42

12

Hex. Flange Screw M6 X 25

207662556

$3.61

12

Hex. Flange Screw M6 X 25

207662556

$3.61

13

Hex. Flange Screw M6 X 70

207667056

$3.61

14

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

15

Hex. Flange Screw M8 X 40

207684044

$1.25

16

Phillips Screw M6 X 25

208562531

$1.74

17

Flat Washer

224061201

$1.11

18

Hex Screw M10 x 100

230100054

$5.29

19

Hexagonal Nut M6

232061404

$0.32

20

Slider 128"

503193962

$27.66

21

Elastic Stop Nut M5

232551414

$0.72

22

Elastic Stop Nut M6

232561434

$1.55

23

Flange Elastic Nut M5

233251434

$1.66

24

Hex. Flange Elastic Nut M6

233261466

$1.66

24

Hex. Flange Elastic Nut M6

233261466

$1.66

25

Elastic Flange Nut M8

233281466

$0.83

26

Elastic Locking Nut M10 X 1.5

233601416

$1.68

27

Flange Elastic Nut M10

233201466

$2.63

27

Elastic Locking Nut M10

233601466

$1.74

28

Stainless Flat Washer M6

234061600

$0.25

29

Flat Washer 8 mm

234082410

$1.11

30

Conical Spring Washer 10 mm

234201474

$1.39

31

Hex. Cap Screw M12 X 35

250000537

$2.63

32

Allen Screw M3 X 0.5 X 10

250000644

$1.74

33

Flat Washer 8 mm

250200128

$1.74

34

Washer

250200140

$0.83

35

Flat Washer

250200143

$2.63

36

Spring Pin

250400014

$2.72

37

Pop Rivet 3/16"

293150013

$1.11

38

Stavex Rivet

293150144

$0.77

40

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

41

O-Ring

293250085

$0.83

42

O-Ring

293250269

$2.25

43

O-Ring

293300036

$8.89

44

O-Ring

293300039

$9.31

45

O-Ring

293300068

$5.29

46

E-Circlip

293370013

$0.62

47

Retaining Ring

293370080

$2.12

50

Grease Fitting

408200700

$2.80

51

Retaining Ring

415129371

$8.92

51

Retaining Ring

415129371

$8.92

52

Retaining Ring

415129780

$13.88

53

Urethane Bushing

503189117

$6.88

54

Axle Spring

503189146

$7.54

55

Pivot Arm Axle

503189156

$20.74

56

Bushing

503189271

$10.46

57

Washer

503189276

$3.20

58

Bushing | Includes 240d to 240d1

503189282

$4.18

59

Ball Bearing | Package-STD

503190396

$7.12

60

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$49.97

60

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

60

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

61

Rear Wheel Spacer

503190428

$6.06

61

Rear Wheel Spacer

503190428

$6.06

62

Rear Axle

503190429

$59.97

64

Washer

503190432

$12.52

65

Labyrinth Seal

503190434

$4.29

65

Labyrinth Seal

503190434

$4.29

66

Rubber Stopper

503190576

$10.23

67

Axle Bar (Long)

503190643

$15.35

68

Washer

503190656

$2.91

69

Labyrinth Seal

503190682

$5.85

69

Labyrinth Seal

503190682

$5.85

70

Axle

503190698

$17.66

71

Spring Support Kit

861805547

$8.14

72

Spring Support Kit

861805547

$8.14

73

Center Bushing

503191259

$8.97

74

Axle Strap

503191260

$29.20

75

Spacer

503196317

$15.35

75

Rear Spacer

503191263

$15.35

76

Washer

503191273

$1.06

77

Spring Spacer

503191281

$7.66

77

Spring Spacer

503192743

$12.65

79

Bushing

503191554

$5.88

80

Swivel Bushing

503191555

$5.71

81

RH Cam Adjuster

503191566

$13.95

81

LH Cam Adjuster

503191565

$13.95

82

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

83

Cushion

503191640

$5.71

84

Wheel Cup M6

503191820

$4.66

85

Washer

503191910

$2.25

86

Washer

503191926

$1.57

87

Lower Axle

503191966

Unavailable

88

Ball Bearing

503193548

$16.89

89

Bolt M8 X 248mm

503192440

$29.97

90

Washer

503192491

$4.38

91

Washer

503192494

$3.11

92

Washer

503192496

$0.75

93

Slide Protector

503192530

$16.89

94

Axle Bar

503192555

$11.40

95

Tensioner

503192583

$5.85

96

Labyrinth Ring

503192592

$4.66

97

Axle Shock Absorber

503196509

$11.98

98

Spring Bracket

503192633

$155.35

99

Spacer

503196943

$7.58

101

Guide Block

503192749

$5.85

102

Rubber Stopper

503192750

$12.65

103

Stopper Strap

503192759

$25.35

105

Bushing

503192767

$15.26

107

Black, Wheel Cap

503192771

$2.28

108

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$36.12

109

Cylinder

503192795

$66.89

110

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

111

RH Support

503192810

$34.58

112

LH Support

503192811

$35.35

113

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

114

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

115

O-Ring

503192832

$2.25

116

Wear Ring

503192833

$15.35

117

Retaining Ring

503192834

$4.66

118

RH Cam Block

503192919

$12.65

118

LH Cam Block

503192918

$12.65

120

O-Ring

503192921

$2.25

121

LH Half Housing

503192956

$10.23

122

RH Half-Housing

503192957

$11.45

123

Lower Shaft

503192981

$17.66

124

O-Ring

503193014

$2.25

126

Shock Adjuster Knob

503193033

$7.58

126

Shock Adjuster Knob

503193033

$7.58

127

Bushing

503193037

$15.35

128

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$25.35

128

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

129

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

130

Rubber Stopper Ass'y

503195523

$5.25

131

Black, RH Spring Square

503193159

$77.66

131

Black, LH Spring Square

503193158

$77.66

132

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$267.66

132

Rear Arm Ass'y | With Quick Adjust System

503193618

$286.12

133

Plate

503193166

$15.35

134

Bolt M10 X 251MM

503193227

$16.12

135

Spacer

503193250

$13.95

136

Screw M8 X 90

503193372

$4.28

137

Retaining Plate

503195712

$17.66

138

Pivot Axle

503193435

$38.43

139

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

140

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

141

Connector Hose

503193476

$46.12

142

Black, Wheel Ass'y 141 mm | Included 440 to 440b

503193477

$36.12

142

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

143

Holder | Included 7000b.d to 7000b.d.e

503193485

$123.82

144

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$288.43

145

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

146

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

147

Piston

503193779

$130.74

148

Casted Support

503193894

$12.75

149

Yellow, Runner 128" | Model Sunburst Yellow

503194156

$286.12

149

Black, Runner 128"

503193901

$286.12

149

White, Runner 128" | Includes 10,001 to 10,002

503194221

$286.12

150

Rod Link

503193903

$27.66

151

REAR SHOCK - Call your local BRP dealership | Includes 5500 to 5500g

503194136

Unavailable

151

Rear Shock | Package XRS

503194331

$877.49

151

Rear Shock

503194332

$416.12

152

Protector

503194113

$26.89

153

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$49.97

154

Leg Cushion

505072663

$7.40

155

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

156

Shock Knob Adjustment Decal

516004752

$12.95

157

Runner Decal

516007816

$9.11

158

RH Block Sticker Decal

516004901

$16.12

158

LH Block Sticker Decal

516004900

$16.12

160

Adjustment Decal

516004917

$42.28

161

Decal

516006369

$12.65

162

Flat Washer

517225900

$0.17

163

Reinforcement Stopper

572084800

$5.25

164

Copper Washer

705601628

$4.34

165

Banjo Bolt

705600628

$11.05

166

Rocker

503194079

$78.43

167

Hex. Screw M8 X 55

207085586

$6.11

168

Pop Rivet 3/16"

390402200

$0.26

170

O-Ring

415093807

$34.58

171

Piston Ring | Not Shown

415093806

$14.97

172

Air Valve

505070398

$17.66

173

Screw | Not Shown

505070399

$4.00

174

O-Ring

505070400

$4.38

175

O-Ring

415093804

$4.38

176

Bolt

415093810

$14.97

177

O-Ring

415038700

$39.97

178

Central Shock

503193283

$416.12

178

Center Shock | Includes 5000 to 5000j

503194071

$812.99

179

Black, Spring (52mm) Short

503193479

$88.43

179

Black, Spring (51mm) Short

503193837

$66.89

180

Black, Spring (162mm) Long

503193065

$71.51

180

Black, Spring (189mm) Long

503193067

$88.43

181

Spring Stopper

503194270

$16.89
