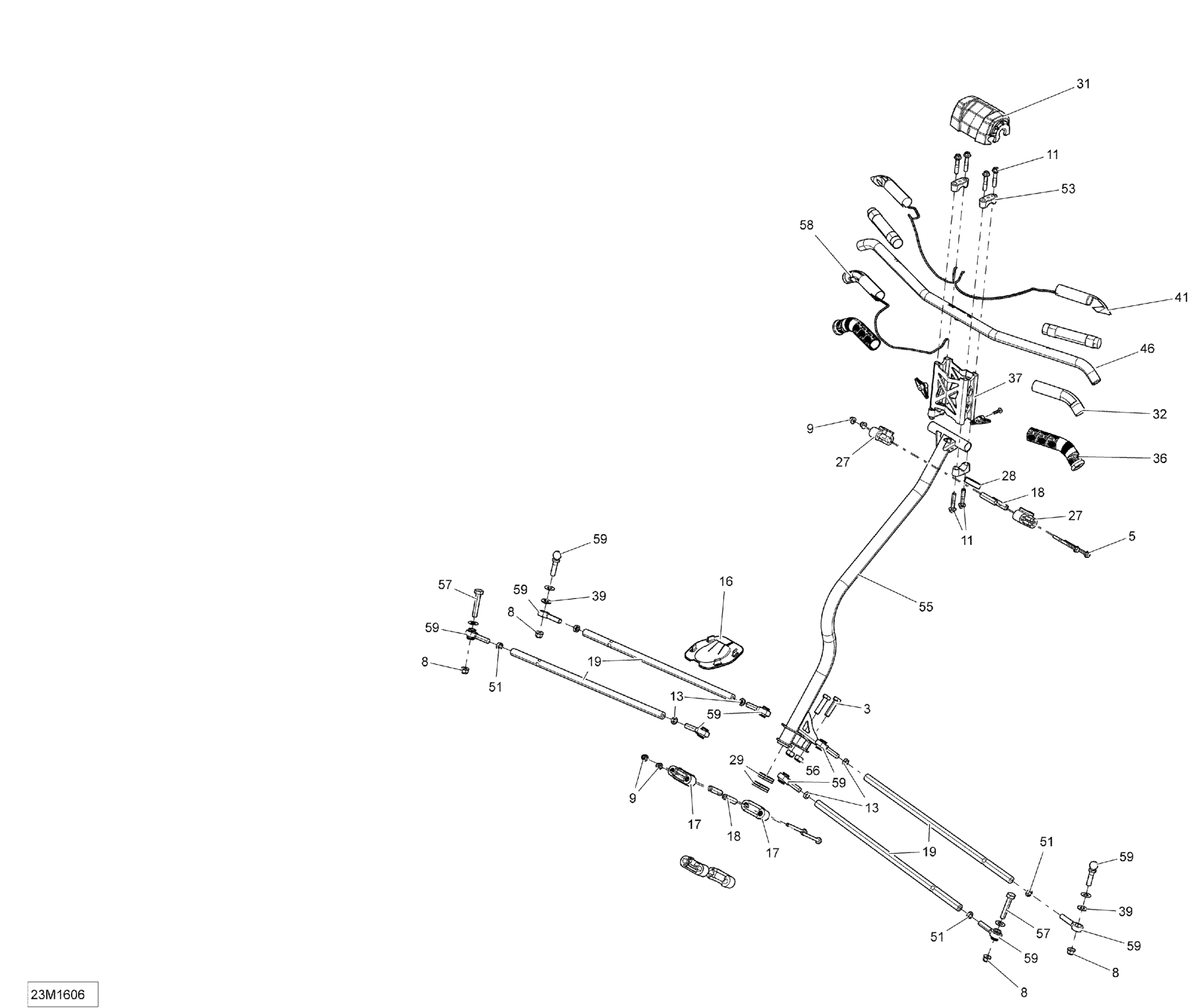

Ski-Doo MXZ - 4-STROKE, 2016 Steering - All Models Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

5

Hex. Flange Screw M6 X 70

207667056

$4.44

8

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

9

Elastic Flange Nut M6 X 1.0

233261416

$2.11

11

Hex. Flange Screw M8 X 40

250000352

$3.38

13

LH Threaded Hex. Jam Nut M10

250100016

$0.74

16

Plate

506152163

$12.99

17

Lower Half-Housing

506152217

$7.62

18

Housing Bushing

506152297

$12.99

19

Tie-Rod Ass'y

506152496

$62.49

27

Upper Half-Housing

506152508

$9.23

28

Upper Anti-Vibration Gasket

506152509

$4.79

29

Lower Vibration Ring

506152518

$4.79

31

Deep Black, Steering Pad

506152541

$41.99

32

Thermal Insulation

506153176

$6.09

36

Grip 148mm

506152560

$16.88

37

Black Handlebar Extension (115mm) | Package TNT & Blizzard

506152570

$147.99

37

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

$67.99

37

Black Handlebar Extension (130mm) | Package Extreme

506152616

$147.99

39

Washer

506152582

$4.55

41

Heating Element 32 Watt 3 Wires

506152798

$52.99

41

RH Heating Element 32 Watt

506152799

$37.99

41

Heating Element 32 Watt 2 Wires

506152758

$46.99

41

Heating Element 32 Watt 2 Wires

506152758

$46.99

46

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

51

RH Threaded Hex. Jam Nut M10

732610010

$0.74

53

Steering Support | Includes 40 to 40a

506152751

$13.99

53

Steering Support | Model-Extreme

548873704

$16.49

55

Steering Column

506152964

$199.99

56

Elastic Locking Nut M10

233601466

$2.11

57

Hex Screw M10 X 1.5 X 55

207005554

$7.51

58

RH Heating Element 32 Watt

506152799

$37.99

58

RH Heating Element 32 Watt

506152799

$37.99

59

RH Threaded Ball Joint

506152019

$41.49

59

LH Thread Ball Joint

506152081

$41.49

59

LH Thread Ball Joint

506152081

$41.49

59

RH Threaded Ball Joint

506152684

$44.49

60

Black Handlebar Extension (115mm) | Package TNT & Blizzard

506152570

$147.99

60

Black Handlebar Extension (130mm) | Package Extreme

506152616

$147.99
