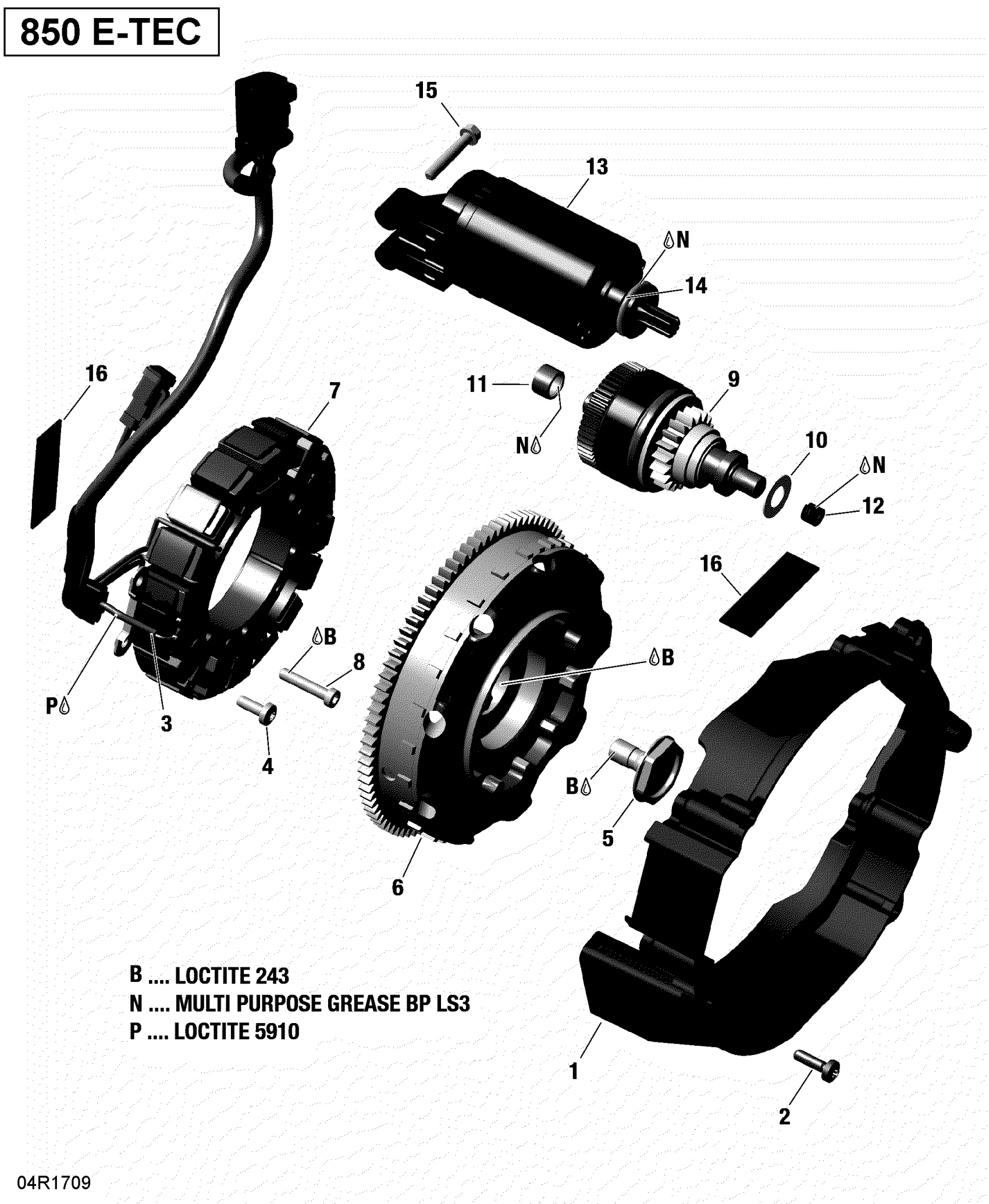

Ski-Doo MXZ - 2-STROKE - 850 E-TEC, 2017 Magneto And Electric Starter - All Models Diagram

Description

Price

Ignition Housing

420911854

$22.36

Torx Flange Screw M6 X 20

420441386

$2.00

Pickup Ass'y

420966842

$99.97

Torx Screw M6 X 16

420640324

$2.00

Collar Hex Screw M12 X 25

420840851

$17.88

Magneto Flywheel

420866048

$689.99

Stator Ass'y 55V/1300W

420864427

$478.99

Allen Screw M6 x 30

420540000

$3.01

9>10

E-Starter Drive Ass'y

420888044

$319.49

Thrust Washer

420827261

$7.09

Needle Bushing

420232482

$17.88

Spring

420938204

$6.07

13>14

Electric Starter | Includes no. 14-15

420893820

$319.49

To be determined

TBD

Unavailable

Torx Flange Screw M6 X 35

420440274

$0.96

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$1.70
