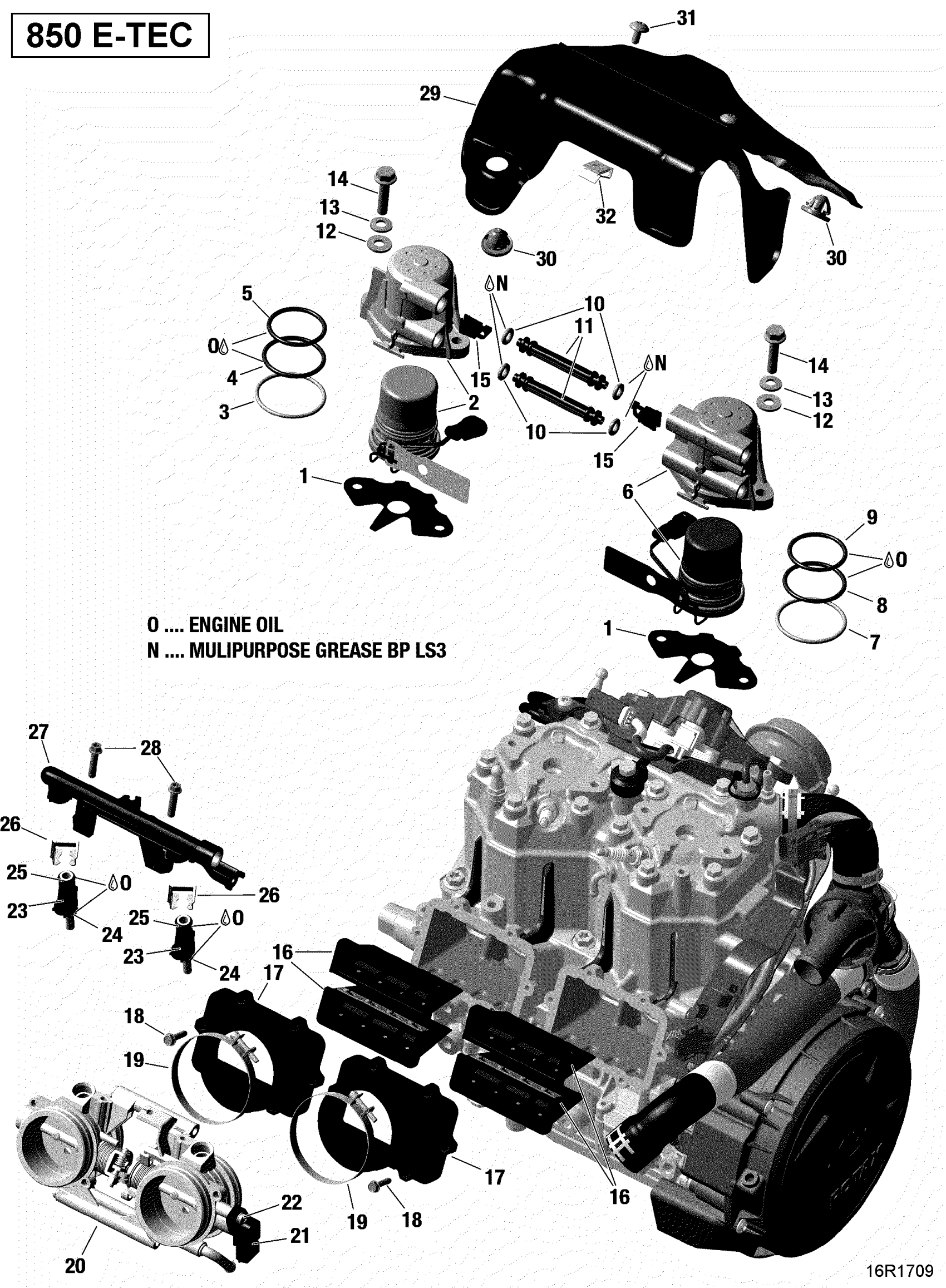

Ski-Doo MXZ - 2-STROKE - 850 E-TEC, 2017 EFI - All Models Diagram

#

Description
Price

1

Gasket

420430056

$7.57

2>5

Injector PTO

420874843

$498.48

3

Crush Ring

415129497

$7.16

4

O-Ring

415129498

$12.13

5

O-Ring

415129499

$6.61

6>9

Injector MAG

420874844

$498.48

7

Crush Ring

415129497

$7.16

8

O-Ring

415129498

$12.13

9

O-Ring

415129499

$6.61

10

O-Ring

420430775

$3.88

11

Tube

420874190

$5.06

12

Washer

420901550

$2.00

13

Spring Washer

420245462

$0.96

14

Hex Screw M8 x 35

420840090

$2.00

15

Tie Rap

420951785

$4.15

16

Reed Valve Ass'y

420924798

$38.03

17

Intake Socket

420867390

$105.94

18

Tapping Screw M5 X 22

420841550

$1.63

19

Clamp

420251209

$8.09

20>22

THROTTLE BODY SOCKET - Call your local BRP dealership This part replaces 420893802.

420893803

Unavailable

21>22

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

22

Not Available As Spare Part - Friction Washer

Unavailable

23>25

Injection Valve Ass'y | Includes 18 to 20

420874887

$166.24

24

O-Ring

420431890

$5.69

25

O-Ring

420631220

$13.18

26

Injector Clip

420853030

$2.82

27

FUEL RAIL - Call your local BRP dealership | Composante émission de type échappement.

420874152

Unavailable

28

Torx Flange Screw M6 X 25

420440235

$2.00

29>32

COVER - Call your local BRP dealership

420910827

Unavailable

30

Rubber Cap

420201630

$4.15

31

Hex Flat Head Screw M6 X 13 T30

420241537

$3.01

32

NUT M6 - Call your local BRP dealership

420242141

Unavailable
