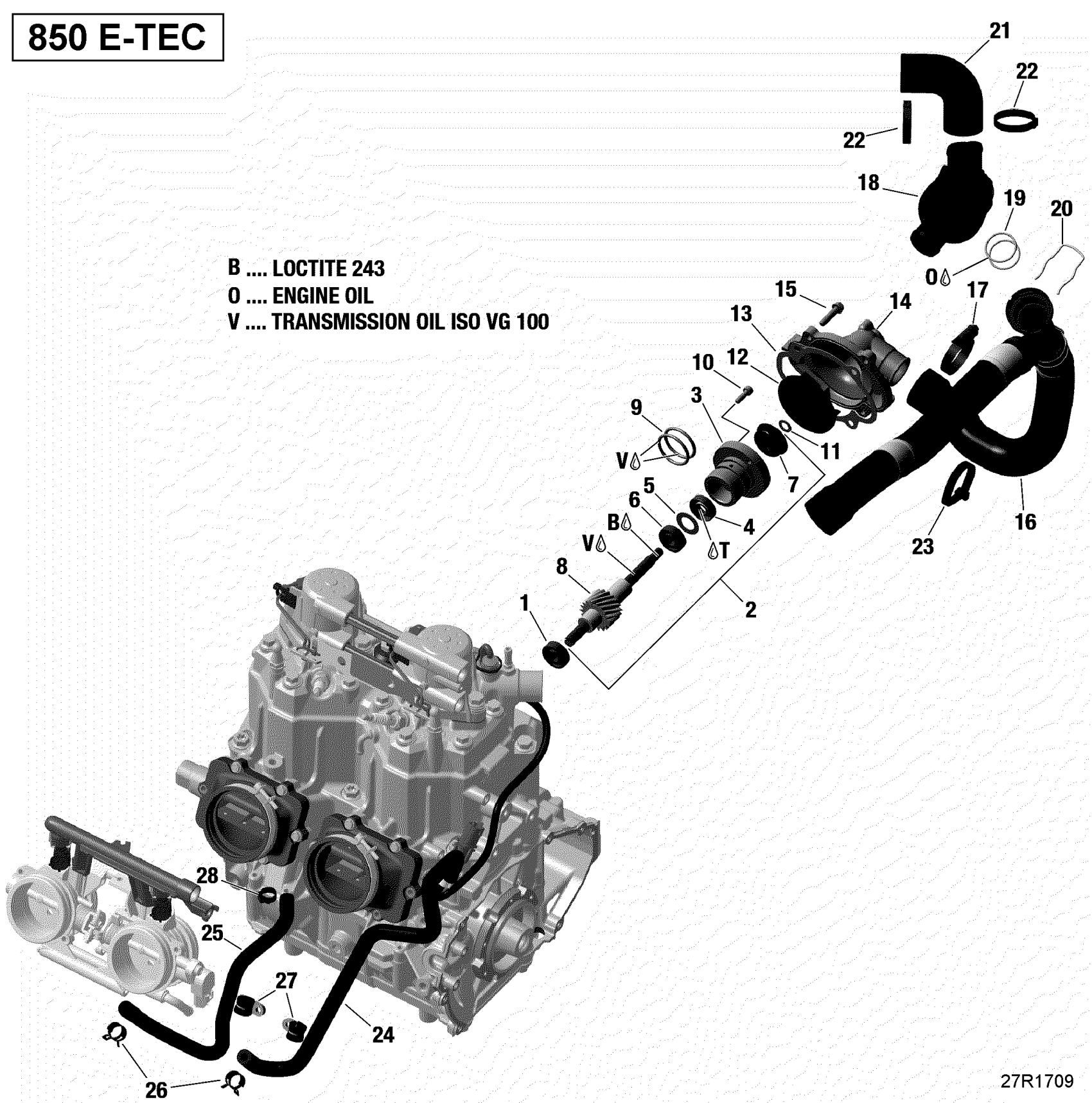

Ski-Doo MXZ - 2-STROKE - 850 E-TEC, 2017 Engine Cooling - All Models Diagram

#

Description
Price

1

Ball Bearing

420232100

$15.57

2>9

Water Pump Shaft Ass'y

420891473

Unavailable

3

STEP COLLAR - Call your local BRP dealership

420847930

Unavailable

4

Oil Seal

420230195

$12.65

5

THRUST WASHER - Call your local BRP dealership

420927057

Unavailable

6

Ball Bearing

420232100

$15.57

7

Rotary Seal

420650371

$35.72

8

Not Available As Spare Part - Friction Washer

Unavailable

9

O-Ring

420950890

$4.28

10

Allen Screw M5 x 16

420840514

$1.85

11

Washer 8.4

420944033

$0.98

12

Water Impeller

420922805

$36.89

13

Gasket Housing This part replaces 420430053.

420430054

$8.34

14

Water Pump Housing | Except SHOT Engine

420822285

$59.97

15

Torx Flange Screw M6 X 25

420440235

$1.74

16

Formed Hose This part replaces 420822801.

420822802

$75.99

17

Clamp 26-38MM

420951120

$4.15

18>19

Thermostat Housing | Includes 17 to 18

420822836

$73.05

19

O-ring

420430060

$9.31

20

Spring Clip

420939344

$2.06

21

Return Hose

420822820

$10.52

22

Clamp 34.9-38.1MM

420951123

$4.28

23

Tie-Rap

420866716

$1.56

24

Molded Hose

420201516

$10.52

25

Molded Hose

420201512

$10.52

26

Clamp

420853511

$7.31

27

Clamp

420851250

$9.31

28

Clamp

420851458

$7.23
