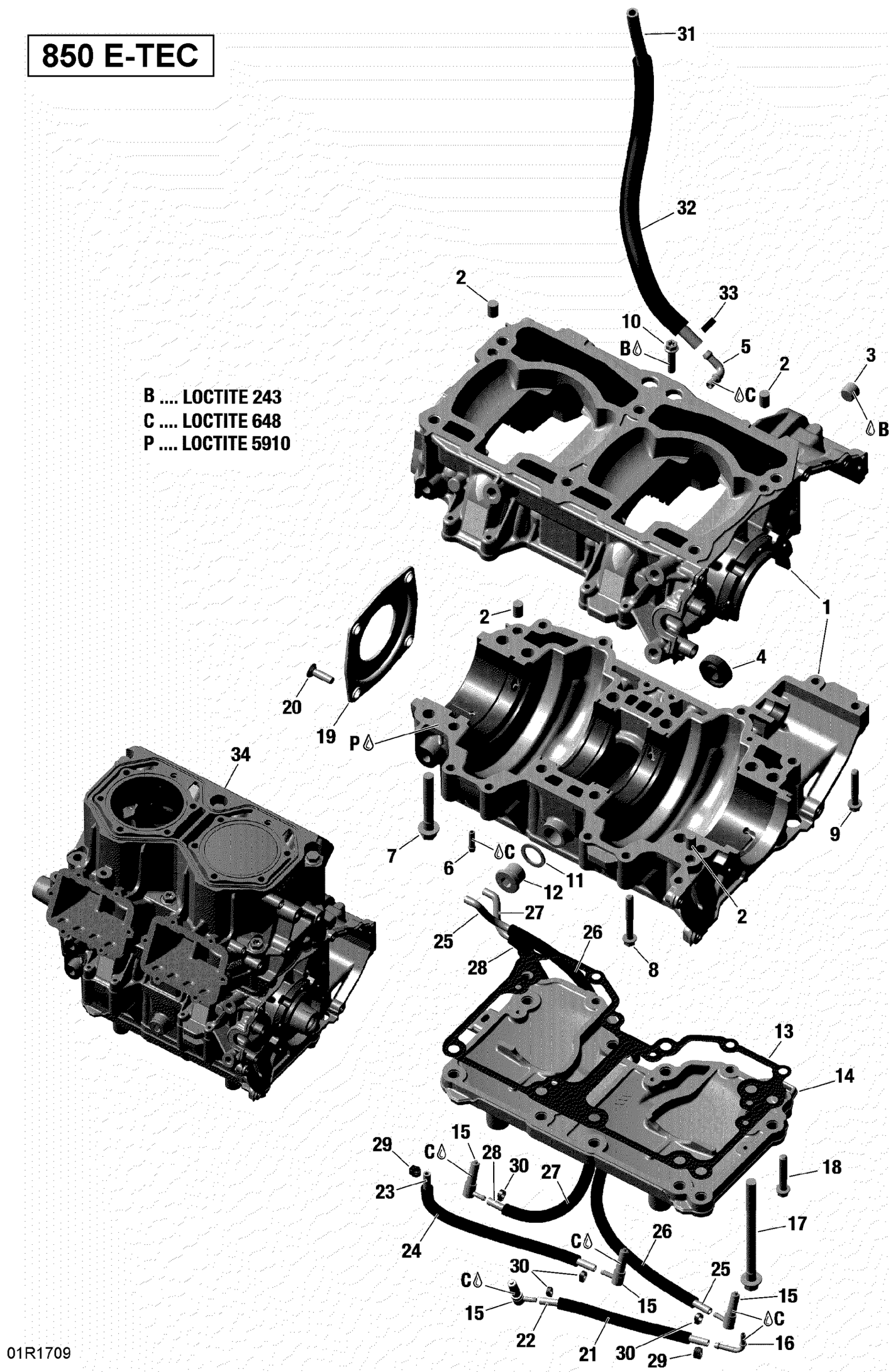

Ski-Doo MXZ - 2-STROKE - 850 E-TEC, 2017 Crankcase - All Models Diagram

#

Description
Price

1>6

Crankcase Ass'y

420893773

$1,149.99

2

Center Pin 8 X 12

420632010

$3.07

3

Plug Screw M12x1,5

420840658

$7.31

4

Ball Bearing

420232100

$15.57

5

Fittin 90D

420924802

$3.23

6

Fitting

420924159

$4.28

7

Hex. Screw M8 X 56.5

420941627

$8.34

8

Torx Flange Screw M6 X 45

420440324

$0.81

9

Torx Flange Screw M6 X 35

420440274

$0.83

10

Torx Flange Screw M6 X 25

420440235

$1.74

11

O-Ring

420430622

$3.61

12

Plug Screw

420640457

$14.54

13

Engine Support Gasket | Included in gasket kit

420430072

$23.82

14>16

ENGINE SUPPORT - Call your local BRP dealership

420812687

$179.97

15

Check Valve

420956511

$28.57

16

Fitting 90D

420924051

$9.31

17

Screw M8x105

420941518

$10.45

18

Torx Flange Screw M6 X 35

420440274

$0.83

19

Oil Seal Cover

420812422

$14.54

20

Screw M6 X 20

420941436

$2.37

21

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

22

Tube 390MM

420460042

$8.34

23

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

24

Tube 390MM

420460042

$8.34

25

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

26

Tube 390MM

420460042

$8.34

27

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

28

Tube 390MM

420460042

$8.34

29

Clamp 5.8-7.0MM

420853138

$2.06

30

Clamp

420851508

$12.52

31

Oil Line 310MM

420201551

$7.31

32

Protector Tube

420460047

$12.52

33

Clamp

420853653

$7.23

34

Engine

420084914

$3,153.83

34

Engine

420084914

$3,153.83

34

Engine

420084914

$3,153.83
