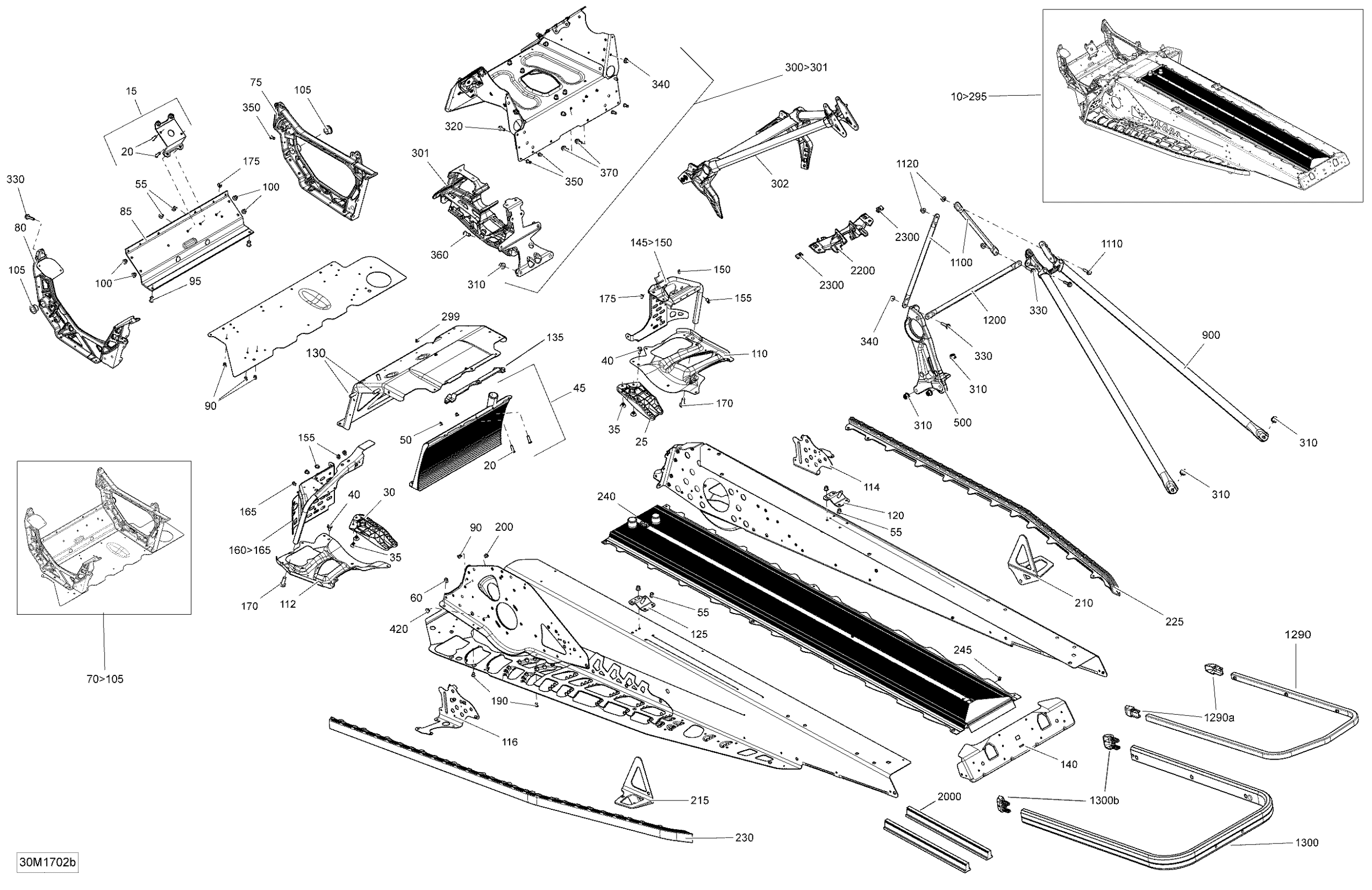

Ski-Doo MXZ - 2-STROKE - 800R E-TEC, 2017 Frame - 129 Diagram

BLACK FRAME XS 129 - Call your local BRP dealership | Deep Black Models

415130124

Unavailable

FRAME MXZ XRS - Call your local BRP dealership | Package XRS Model Hyper Silver

415130116

Unavailable

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

Clinch Stud M6 X 20

250300027

$1.92

RH Deflector, Black Polypropylene

518325782

$11.77

LH Deflector, Black Polypropylene

518325783

$11.77

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Front Radiator | Includes 10b to 10b2

518326485

$434.58

Rivet Avibulb 3/16

293150203

$0.29

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

E Module | Includes 10n to 10at

518327567

$428.43

RH Member

518326795

$259.97

LH Member

518326796

$210.74

Front Member

518326198

$59.97

Stavex Rivet

293150144

$0.77

Hemlock Rivet 6.5 mm

293150120

$7.23

Hemlock Rivet, 6.5 mm

293150119

$4.00

Leg Cushion

505073317

$5.92

RH Reinforcement, Running Board

518326937

$25.35

LH Reinforcement, Running Board

518326938

$25.35

Not Available As Spare Parts

XXX

Unavailable

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

RH Rear Base

518325973

$18.43

LH Rear Base | Includes 10v to 10x

518325974

$18.43

Clinch Stud

250300038

$4.00

Seal

518326656

$8.43

Rear Cap

518327105

$20.74

RH Stirup

518328940

$166.12

Avex Rivet

390909200

$0.29

Insert M5 X 0.8

293450268

$1.95

LH Stirup | Includes 10s to 10t

518328528

$166.12

Avex Rivet

390909200

$0.29

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

Full Moon Dart 5 mm

293730042

$2.12

Avex Rivet

390909100

$0.29

Henrob Rivet

293150146

$1.92

Hemlock Rivet, 6.4 mm

293150174

$6.43

RH Slide Suspension Bracket | Deep Black Models Except Package XRS

518328344

Unavailable

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership | Sunburst Yellow Models

518328345

Unavailable

RH Roller | Package Iron Dog

518327200

$152.28

RH Roller | Sunburst Yellow Models

518327472

$180.74

LH ROLLER - Call your local BRP dealership | Package Iron Dog

518327201

Unavailable

LH Roller | Sunburst Yellow Models

518327473

$180.74

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Socket Head Screw M6 X 40

250000038

$6.52

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

Cross Member S Module | Package Iron Dog

518328322

$439.20

Front Suspension Support

518327487

$267.66

Front Member

518327565

$316.12

Hex. Flange Elastic Nut M8

233281414

$1.14

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Monobolt Rivet, 4.8 mm

293150191

$0.95

Monobolt Rivet 6.4

293150182

$2.91

Hex. Flange Screw M6 X 16

207661644

$0.61

Black Dart 5 mm

293730053

$3.73

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

Rear Member

518326559

$244.58

Upper Lateral Column Support

518325114

$20.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Center Column Support

518325115

$20.74

Black, Rear Bumper | Except Package Iron Dog

518327637

$169.97

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.68

Black Rear Bumper, 154"

518326611

$123.05

Black RH Cap

520000965

$8.97

Black LH Cap

520000964

$8.97

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Sub A Support

518327145

$79.20

Panel Nut M5 X 0.8

250000958

$3.48
