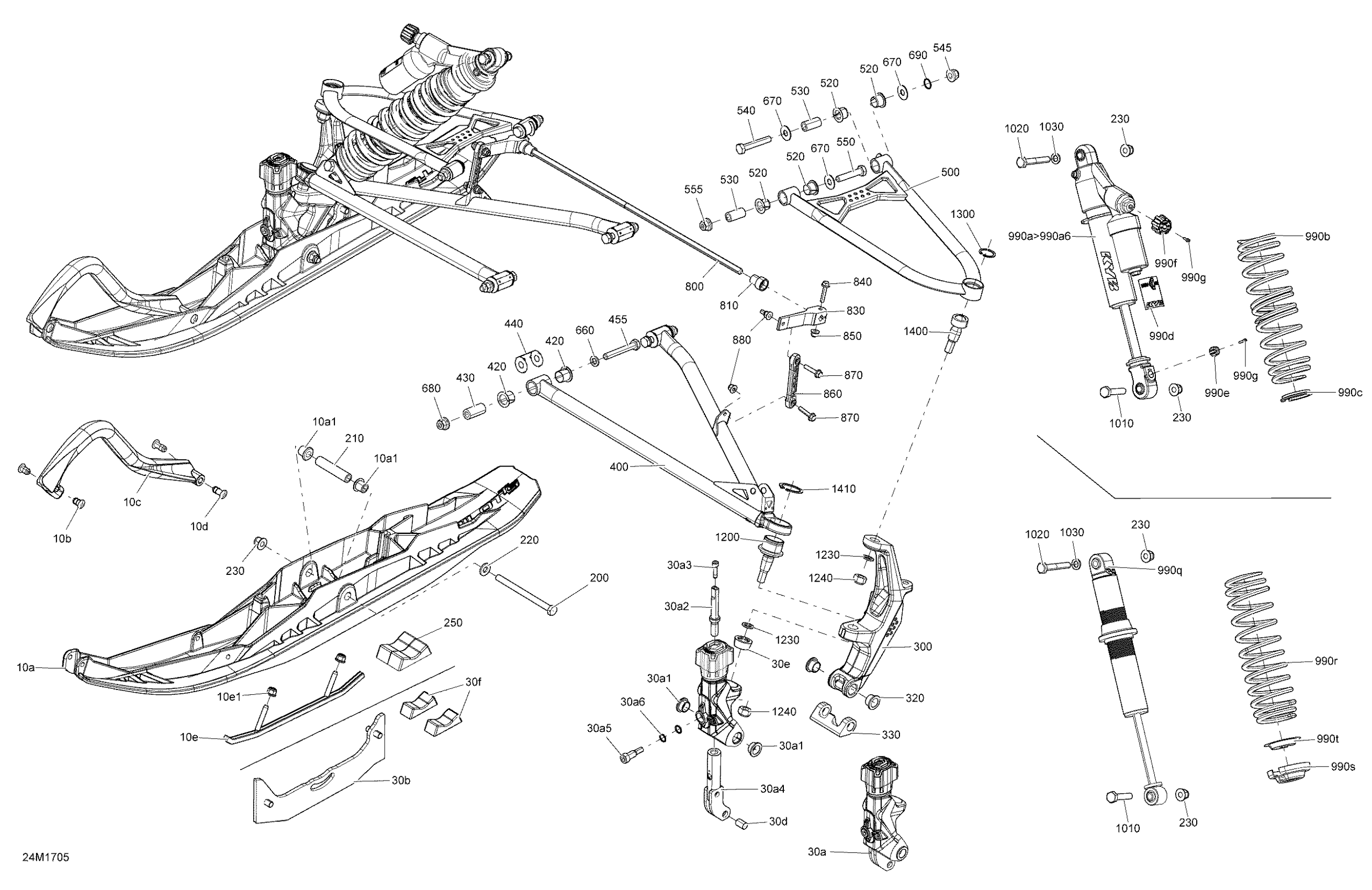

Ski-Doo MXZ - 2-STROKE - 800R E-TEC, 2017 07- Front Suspension And Ski Diagram

Deep Black, LH Ski Pilot TS | Included 10a to 10a.1

505074829

$169.49

Deep Black, RH Ski Pilot TS | Included 20a to 20a.1

505074830

$174.99

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

Sunburst Yellow LH Pilot 5.7 Ski | Model Sunburst Yellow

505073575

$169.49

Sunburst Yellow RH Pilot 5.7 Sk | Model Sunburst Yellow

505073576

$179.99

Sunburst Yellow LH Pilot TS Ski | Skis Touring Sport - Sunburst Yellow

505073851

$169.49

Sunburst Yellow, RH Pilot TS Ski | Skis Touring Sport - Sunburst Yellow

505073852

$169.49

Ski Bushing

505071781

$16.18

Retainer 17mm long

505071812

$5.95

Black, Handle

505070963

$35.99

White Handle

505072102

$35.99

Full Moon Handle

505071556

$35.99

Retainer 23mm Long

505072133

$6.78

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$92.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Black LH Support | Includes 30.001 to 30.001a

505073789

$379.99

Black RH Support | Includes 30.001 to 30.001a

505073792

$379.99

Bushing

505073773

$25.99

Shaft

505073771

$43.99

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

Tip

505073761

$70.99

Screw

505073767

$3.38

O-Ring

293300013

$8.18

Carbide Runner Kit, Ajustable TS Ski

860201178

$154.99

Pin

505073782

$11.01

Black, Rubber Grommet

505073772

$11.49

Ski Stopper

505073788

$15.72

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

Spacer

506133300

$23.99

Washer

503192496

$0.77

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Ski Stopper

505072594

$18.49

Clear LH Ski Leg | Package Sport

505073774

$239.99

Black LH Ski Leg

505073807

$254.99

SKI-LEG MACHINED - Call your local BRP dealership

505073867

Unavailable

SKILEG MACHINED - Call your local BRP dealership | Package Sport

505073775

$219.99

Black RH Ski Leg

505073808

$254.99

SKI LEG - Call your local BRP dealership

505073868

$234.99

Leg Bushing

505072690

$12.49

Leg Stopper

505073779

$16.49

RH Lower Arm 42", Black Epoxy

505073426

$204.99

LH Lower Arm 42", Black Epoxy

505073420

$204.99

Bushing

505072208

$3.28

Sleeve

505072209

$17.84

Wear Plate

505072634

$6.29

Screw Hex. M10 X 70

250001024

$2.11

LH Upper Arm 42", Black Epoxy

505073412

$154.99

RH Upper Arm 42", Black Epoxy

505073416

$154.99

Bushing

505072250

$3.28

Sleeve

505072143

$9.00

Screw Hex. M10 X 60

250001023

$2.11

Hex. Flange Elastic Nut M10

250100165

$0.85

Screw Hex. M10 X 50

250001022

$1.69

Hex. Flange Elastic Nut M10

250100165

$0.85

Washer

503189564

$0.74

Washer

505072392

$4.76

Hex. Flange Elastic Nut M10

250100165

$0.85

O-Ring

505072448

$2.32

Stabilisator

505072602

$68.99

Bushing

505072064

$2.32

Stabilisator Lever

505072394

$18.73

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

Hex. Flange Elastic Nut M6

233261466

$2.00

Sway Bar Double Joint Link

505072204

$21.99

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

Hex. Flange Elastic Nut M6

233261466

$2.00

RH Front Shock | Includes 1000 to 1000,007

505073613

$877.49

LH Front Shock | Includes 990 to 990,007

505073612

$877.49

O-Ring

415093807

$35.99

Piston Ring | Not Shown

415093806

$16.86

Air Valve

505070398

$20.99

Screw | Not Shown

505070399

$4.12

O-Ring

505070400

$4.54

O-Ring

415093804

$4.54

Deep Black, Spring

505072760

$52.99

Spring Stopper

503194270

$19.99

Shock Adjustment Decal

516005534

$16.49

Adjustment Knob

505072753

$2.19

Shock Adjuster Knob

503193033

$10.99

Allen Screw M3 X 0.5 X 10

250000644

$2.11

Front Shock | Europe

505073699

$434.49

Deep Black, Spring

505072537

$67.99

Spring Stopper

706200881

$12.99

Cap

706200785

$4.69

Hex Screw M10 X 1.5 X 55

207005554

$7.51

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

Washer

503189564

$0.74

Ball Joint

505073636

$51.99

Washer

503192491

$4.54

Hex Elastic Nut M12 X 1.25

232521464

$2.11

Circlip

293370070

$8.99

Upper Ball Joint

505072913

$72.99

Circlip

293370035

$2.64

Washer

503192496

$0.77

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Ski Stopper

505072594

$18.49

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
