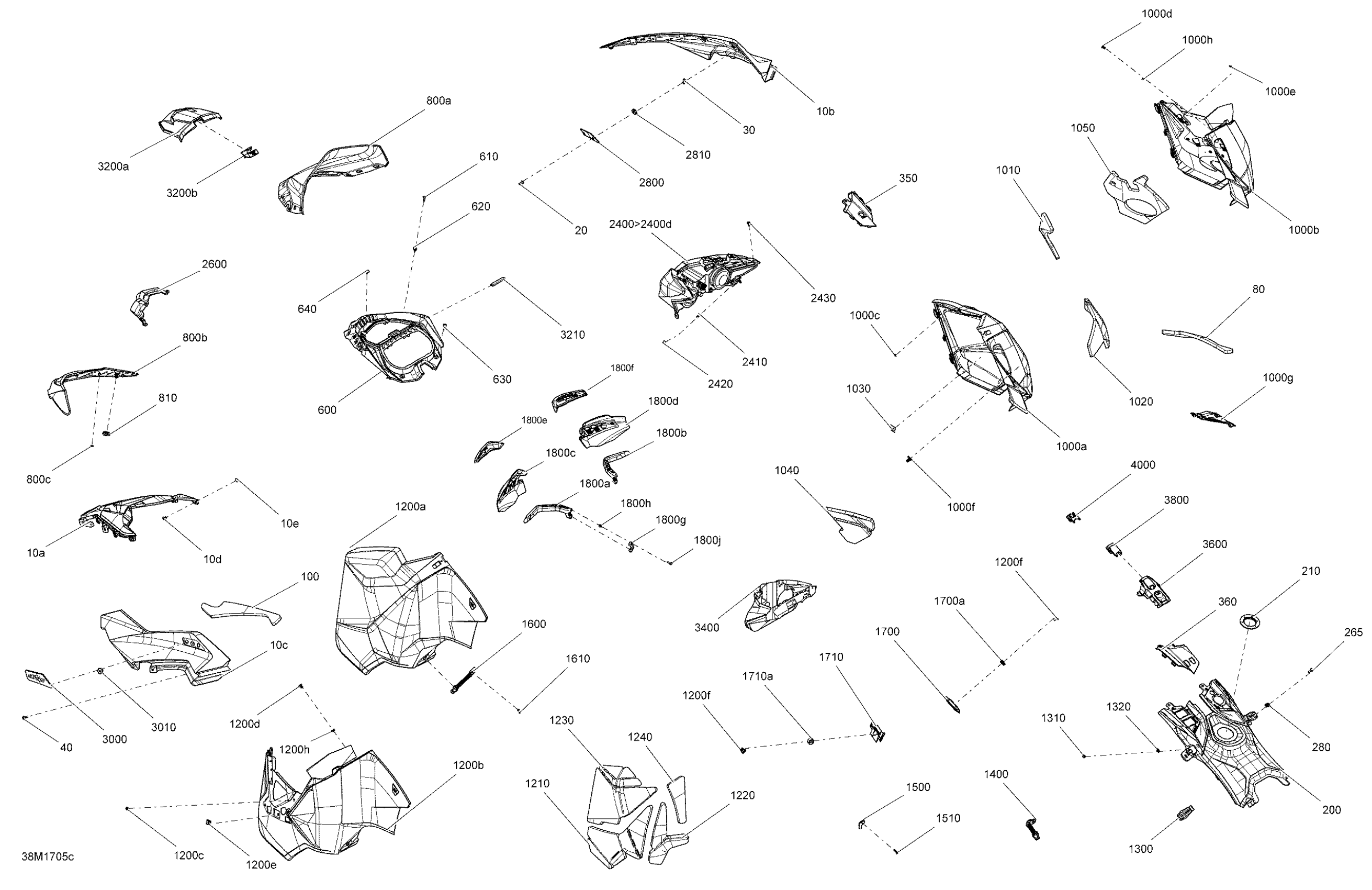

Ski-Doo MXZ - 2-STROKE - 600HO E-TEC, 2017 Hood - Package Iron Dog Diagram

#

Description
Price

10a

Deep Black, Center Hood

517304796

$214.99

10b

Deep Black, RH Hood

517305239

$199.99

10c

Deep Black, LH Hood

517305240

$199.99

10d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10e

Washer

517124300

$0.19

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

40

Torx Screw M5 X 26

250000587

$4.44

80

RH Rear Hood Foam

517305090

$16.49

100

LH Rear Hood Foam

517305091

$16.49

200

Deep Black, Rear Console

517305641

$224.99

210

Console Nut

517304518

$15.29

265

Torx Truss Screw M6 X 20

250000705

$2.11

280

Panel Nut M6 X 1.0

250100198

$2.11

350

Deep Black, RH Front Console

517305549

$21.99

360

Deep Black, LH Front Console

517305143

$31.99

400>400a

Deep Black RH Console | Package XRS

517305060

$35.99

400a

Black, Cap

275500241

$3.49

410

Screw M4 X 16

250000725

$3.49

600

Deep Black, Indicator Support

517305511

$60.99

610

Torx Screw M5 X 20

250000528

$2.11

620

Panel Nut M5 X 0.8

250000958

$4.23

630

Torx Screw M5 X 26

250000587

$4.44

640

Black, Dart

414644300

$0.98

800a

Pare-Brise Ub *Windshield | Package XRS This part replaces 517304931.

860200901

$99.99

800b

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

$25.49

800c

Push Nut

732610072

$2.19

810

Grommet

517303756

$4.09

1000a

Black Panel RH | Package TNT, X, Blizzard & XRS

517304801

$189.99

1000b

Black, RH Panel Trim

517305058

$249.99

1000c

Push Nut

250100158

$2.11

1000d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000e

Rivet Plate

517305109

$4.99

1000f

Pin

517305734

$3.49

1000g

Deep Black, RH Panel Vent Grid

517304935

$31.99

1000h

Washer

517124300

$0.19

1010

RH Foam Central

517305197

$16.49

1020

RH Foam Rear

517305199

$21.99

1030

Heat Shield | Europe

517305451

$2.29

1040

RH Foam Upper

517305196

$30.99

1050

RH Foam Lower

517305198

$28.99

1200a

Black LH Panel | Package TNT, X, Blizzard & XRS

517304804

$189.99

1200b

Black, LH Flashing Panel

517304805

$189.99

1200c

Push Nut

250100158

$2.11

1200d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200e

Rivet Plate

517305109

$4.99

1200f

Pin

517305734

$3.49

1200h

Washer

517124300

$0.19

1210

LH Center Panel Foam

517305201

$14.49

1220

LH Lower Panel Foam

517305202

$21.99

1230

LH Upper Panel Foam

517305200

$21.99

1240

LH Rear Panel Foam

517305203

$21.99

1300

Panel Latch

517305279

$18.99

1310

Hexalob Screw M4 X 10

250000565

$2.11

1320

Weld Nut M4

250100156

$4.34

1400

RH Panel Latch

517303612

$9.99

1500

Latch Support

517304221

$9.19

1510

Torx Screw M5 X 20

250000792

$2.11

1600

LH Panel Latch

517303808

$11.49

1610

Pop Rivet 3/16”

293150108

$1.19

1700>1700a

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

1700a

Ring

517305723

$3.49

1710>1710a

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

1710a

Ring

517305723

$3.49

1800a

Deep Black, LH Arm

517305290

$24.99

1800b

Deep Black, RH Arm

517305293

$24.99

1800c

LH Deflector, Smoked 60%

517305291

$24.99

1800d

RH Deflector, Smoked 60%

517305294

$23.99

1800e

Deep Black, LH Cap, SKI-DOO

517305601

$35.99

1800f

Deep Black, RH Cap SKI-DOO

517305602

$35.99

1800g

Clamp

517305296

$4.76

1800h

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1800j

Torx Screw M5 X 20

250000724

$1.69

2600

Headlight Trim Cap

517305010

$37.99

2800

RH Hood Filler Plate, SKI-DOO | Package XRS

517305137

$16.49

3000

LH Hood Filler Plate, SKI-DOO | Package XRS

517305138

$16.49

3200a

Deep Black, Upper Storage Access Cover

517304912

$18.49

3200b

Cover Latch

517304917

$12.99

3210

Seal Joint

517305157

$2.39

3400

Deep Black, Trunk

517305095

$21.99

3600

Deep Black, Console Support

517304970

$14.49

3800

Deep Black, Support Console Cap

517305148

$4.99

4000

Deep Black, Support Console Cap

517305147

$4.99
