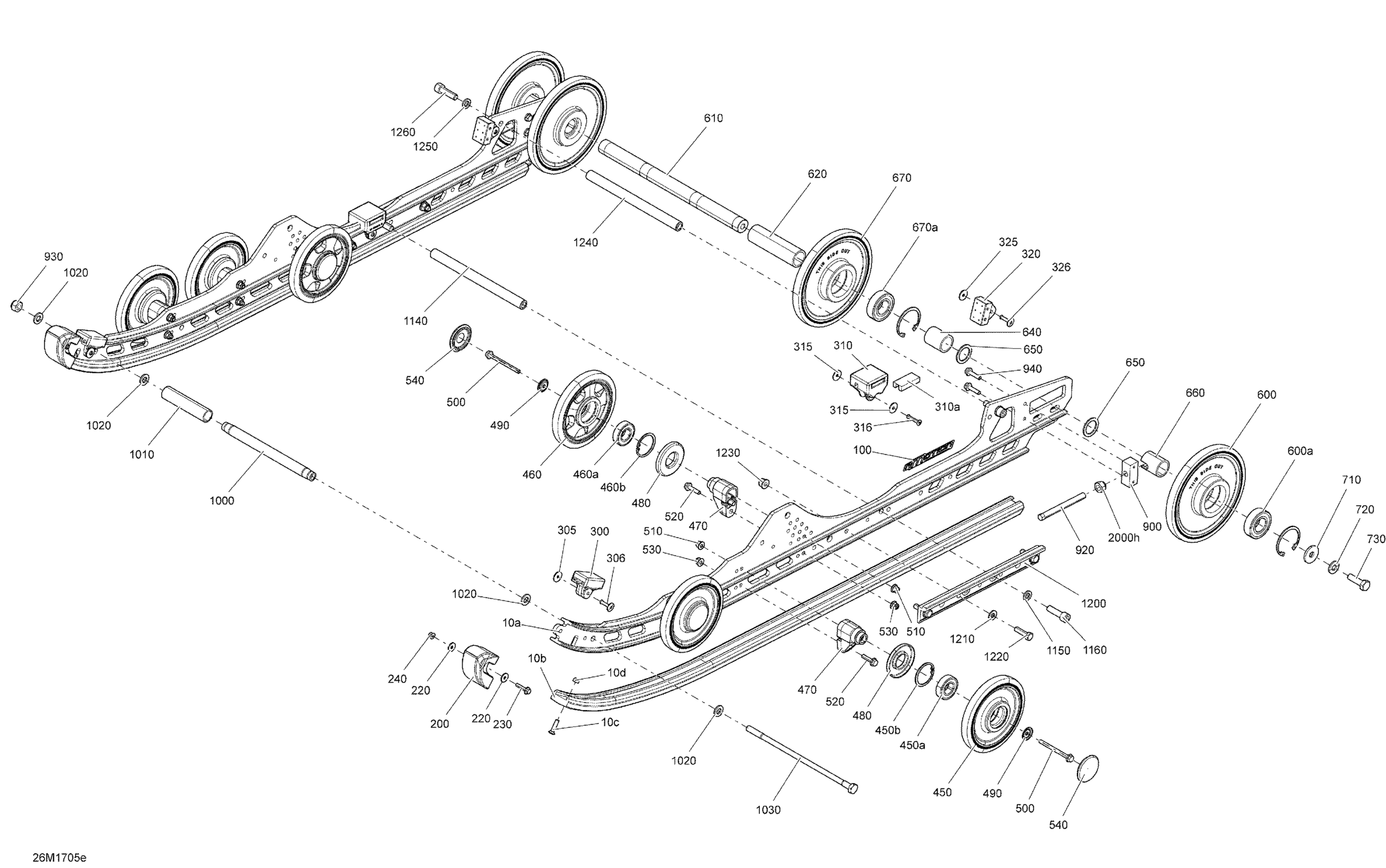

Ski-Doo MXZ - 2-STROKE - 600HO E-TEC, 2017 Rear Suspension - rMotion - Package Iron Dog - Inferior Diagram

#

Description
Price

10a

Black, Runner 128"

503193901

$272.36

10b

Slider 128"

503193962

$26.84

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561414

$1.78

100

Runner Decal

516007816

$8.84

200

Slide Protector

503192530

$16.39

220

Washer

250200140

$0.96

230

Hex. Flange Screw M5 X 25

207652544

$0.48

240

Hex. Flange Elastic Nut M5

233251414

$1.91

300

Rubber Stopper

503190576

$9.93

305

Washer

503191273

$1.03

306

Pop Rivet 3/16

293150224

$0.96

310>310a

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$17.13

310a

Reinforcement Stopper

572084800

$5.09

315

Washer

503191273

$1.03

316

Pop Rivet 3/16"

293150013

$1.27

320

Rubber Stopper

503192750

$12.27

325

Washer

503191273

$1.03

326

Pop Rivet 3/16

293150224

$0.96

450>450b

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$35.04

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

460>460b

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

460a

Ball Bearing | Package-STD

503190396

$8.18

460b

Retaining Ring

415129371

$8.66

470

Casted Support

503193894

$12.37

480

Labyrinth Seal

503190434

$4.16

490

Wheel Cup M6

503191820

$4.52

500

Hex. Flange Screw M6 X 70

207667056

$4.15

510

Hex. Flange Elastic Nut M6

233261466

$1.91

520

Hex. Flange Screw M6 X 25

207662556

$4.15

530

Hex. Flange Elastic Nut M6

233261466

$1.91

540

Black, Wheel Cap

503192771

$2.21

600>600a

Wheel 180 | Includes 600 to 600a

503191491

$48.48

600a

Ball Bearing

293350115

$10.82

610

Rear Axle

503167900

$125.34

620

Center Spacer

503156000

$8.66

640

Inner Spacer

503182900

$9.88

650

Washer

503180400

$3.27

660

Outer Spacer

503189809

$14.90

670>670a

Wheel 180 | Includes 600 to 600a

503191491

$48.48

670a

Ball Bearing

293350115

$10.82

710

Washer

503183300

$5.51

720

Conical Spring Washer 10 mm

234201474

$1.60

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

900

Tensioner

503193808

$37.28

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1000

Pivot Axle

503193435

$37.28

1010

Spacer

503189265

$4.61

1020

Washer

503192496

$0.73

1030

Bolt M10 X 251MM

503193227

$15.64

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1200

Black Reinforcement Runner

503193726

$52.96

1210

Washer

503192494

$3.01

1220

Hex. Cap Screw M8 X 30

207183054

$4.15

1230

Elastic Flange Nut M8

233281466

$0.96

1240

Axle Strap

503191260

$28.33

1250

Washer

503192496

$0.73

1260

Socket Head Screw M10 X 35

205503554

$7.09
