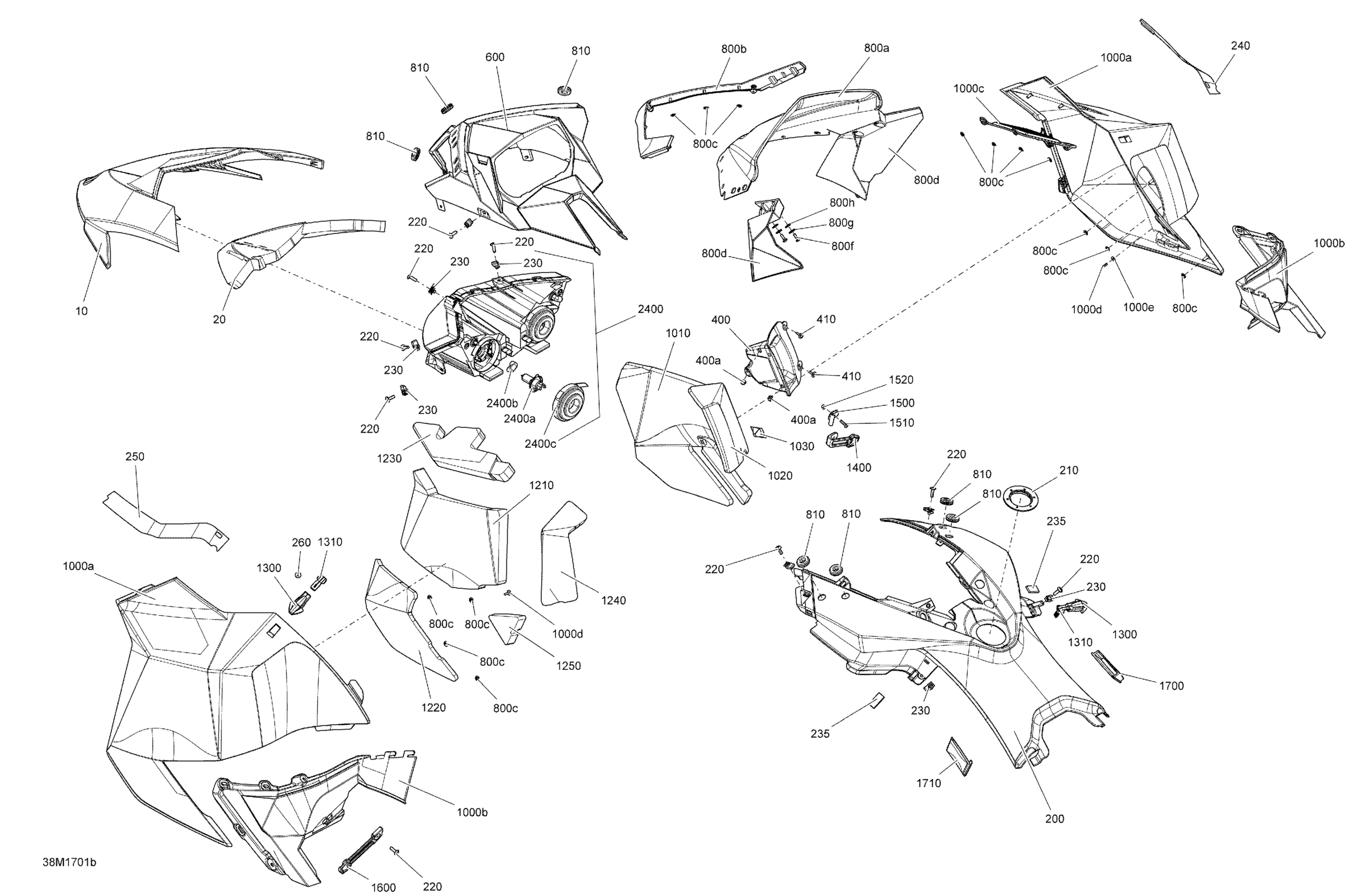

Ski-Doo MXZ - 2-STROKE - 600 CARB, 2017 Hood Diagram

#

Description
Price

10

Deep Black Hood | Deep Black

517304530

$192.51

20

Hood Foam

517304913

$20.12

200

Deep Black Console

517303923

$206.69

210

Console Nut

517304518

$13.37

220

Torx Truss Screw M6 X 20

250000705

$2.00

230

Panel Nut M6 X 1.0

250100198

$1.99

260

Torx Truss Screw M6 X 16

250000721

$1.60

410

Screw M4 X 16

250000725

$3.30

600

Gauge Support

517304575

$63.40

810

Grommet

517303756

$3.61

1010

RH Center Foam

517304883

$39.52

1020

RH Panel Rear Foam

517304884

$14.90

1030

Heat Shield | Europe

517305451

$2.12

1210

LH Panel Center Foam

517304887

$25.34

1220

LH Panel Lower Foam

517304888

$20.12

1230

LH Panel Upper Foam

517304889

$17.88

1240

LH Panel Rear Foam

517304890

$13.54

1250

Foam

517304891

$17.88

1300

End Piece Latch

517304075

$4.30

1310

Panel Latch

517303981

$9.49

1400

RH Panel Latch

517303612

$9.21

1500

Latch Support

517304221

$6.30

1510

Torx Screw M5 X 20

250000792

$2.00

1600

LH Panel Latch

517303808

$9.61

1700

RH Panel Clip

513033471

$5.36

1710

LH Panel Clip

513033472

$5.36

1000a

Deep Black, RH Panel

517304029

$200.72

1000a

Deep Black, LH Panel

517304030

$200.72

1000b

Deep Black RH Moulding Panel

517303671

$26.09

1000b

Deep Black, LH Moulding Panel

517303673

$26.09

1000c

Grille

517303622

$28.33

1000d

Hex. Flange Screw K40 X 16

241141660

$1.43

1000e

Flat Washer 4 mm, Stainless

234042600

$1.06

2400>2400c

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

2400>2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

2400a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2400b

Cap

515176498

$11.82

2400c

Rubber Cap Protector

219800280

$17.13

400>400b

Black, RH Console | Includes 400 to 400b

517304322

$32.81

400a

Black, Cap

275500241

$3.16

800a

Windsheld 375mm | Deep Black

517304395

$147.73

800b

Windshield Support

517303607

$32.06

800c

Push Nut

732610072

$1.97

800d

RH Air Deflector

517303604

$39.52

800d

LH Air Deflector

517303605

$39.52

800f

Torx Screw K50 X 16

250000720

$1.60

800g

Washer M5

250200025

$0.70

800h

Rubber Washer 5 mm

250200024

$2.03
