Description

Price

10>10bc

FRAME 120 - Call your local BRP dealership | Includes 10 to 10av

415130275

$3.00

10a>10a1

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

10a1

Clinch Stud M6 X 20

250300027

$2.09

10b

RH Deflector, Black Polypropylene

518325782

$13.99

10c

LH Deflector, Black Polypropylene

518325783

$13.99

10d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10e

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

10f>10f2

Front Radiator | Includes 10b to 10b2

518326485

$444.99

10f1

Front Radiator | Includes 10b to 10b2

518326485

$444.99

10f2

Clinch Stud M6 X 20

250300027

$2.09

10g

LH Stirup

518326820

$37.99

10h

Panel Nut M5 X 0.8

250000958

$4.23

10j

Rivet Avibulb 3/16

293150203

$2.09

10k

Hemlock Rivet, 6.5 mm

293150119

$4.29

10l

Hemlock Rivet, 6.4 mm

293150174

$7.86

10m

Support

518326960

$12.99

10n

Tork Screw M6 X 18

250000536

$2.11

10p

Flat Washer

250200039

$0.74

10q>10q1

Attach | Includes 10n to 10p

518326986

$12.99

10q1

Clinch Stud M6 X 20

250300027

$2.09

10r

Elastic Stop Nut M6

232561414

$0.55

10s

Torx Screw M8 X 55

250000535

$3.17

10t

RH Member

518326795

$284.99

10u

LH Member

518326796

$229.99

10v

Front Member

518326198

$64.99

10w

Clinch Stud

250300038

$4.29

10x

Stavex Rivet

293150144

$0.82

10y

Hemlock Rivet 6.5 mm

293150120

$7.41

10z

Hemlock Rivet, 6.5 mm

293150119

$4.29

10aa

Leg Cushion

505073317

$8.66

10ab

RH Reinforcement

518324874

$27.99

10ac

LH Reinforcement

518324875

$27.99

10ad

RH Rear Base

518325973

$21.99

10ad

LH Rear Base | Includes 10v to 10x

518325974

$21.99

10af

Clinch Stud

250300038

$4.29

10ag

Clinch Stud M6 X 20

250300027

$2.09

10ah

Seal

518326656

$9.19

10aj

Rear Cap

518327105

$22.49

10ak

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

10al

Avex Rivet

390909200

$0.30

10am

Full Moon Dart 5 mm

293730042

$2.21

10am

Rivet Avibulb 3/16

293150203

$2.09

10an

Avex Rivet

390909100

$0.30

10aq

Henrob Rivet

293150146

$2.09

10ar

Hemlock Rivet, 6.4 mm

293150174

$7.86

10as

U-Attach

518326961

$10.99

10at

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10au

Tork Screw M6 X 16

250000534

$2.11

10av

Hex. Flange Nut M6

233061414

$1.68

10aw

RH Slide Bracket

518324885

$39.99

10ax

LH Slide Bracket

518324886

$39.99

10ay

RH Roller

518324812

$194.99

10az

LH Roller

518324813

$194.99

10bb

Rear Radiator 120''

518327580

$783.99

30

Pop Rivet 3/16"

390402400

$0.35

300a>300a1

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

300a1

Front Suspension Support

518327487

$289.99

300b

Front Member

518326970

$299.99

310

Hex. Flange Elastic Nut M8

233281414

$1.47

330

Hex. Flange Screw M6 X 25

207662544

$0.64

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Monobolt Rivet, 4.8 mm

293150191

$0.99

360

Monobolt Rivet 6.4

293150182

$3.09

370

Hex. Flange Screw M6 X 16

207661644

$0.74

420

Black Dart 5 mm

293730053

$4.55

500

Pulley Support

518328346

$129.99

510

Hex. Flange Elastic Nut M8

233281414

$1.47

900

Rear Member

518326559

$264.99

910

Hex. Flange Elastic Nut M8

233281414

$1.47

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1300

Rear Bumper, 146"

518325374

$111.49

1340

Full Moon Cap

520000567

$10.99

1400

Full Moon Dart 8 mm

293730041

$2.21

1405

Full Moon Dart 10 mm

293730059

$4.55

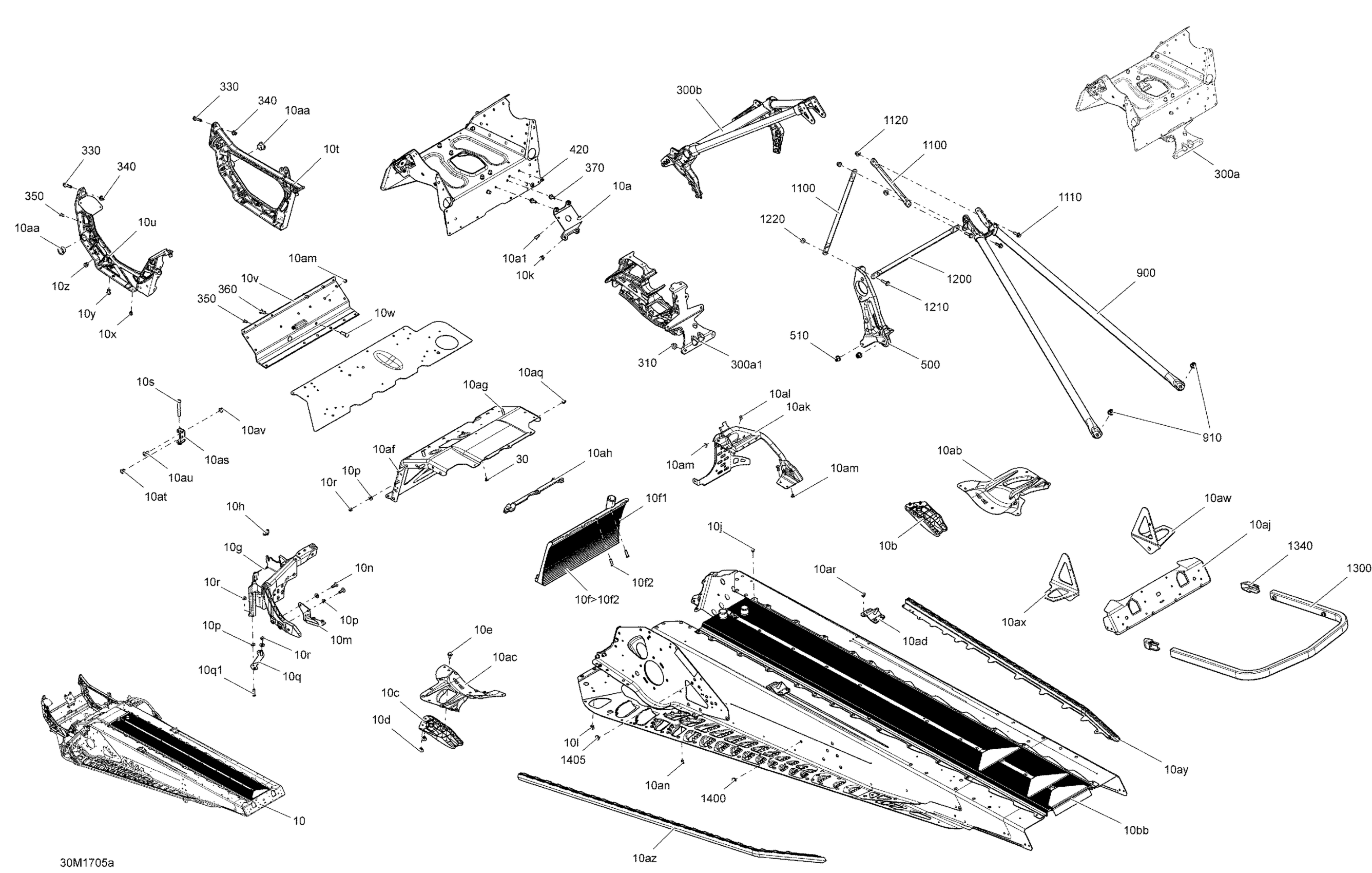

Ski-Doo MXZ - 2-STROKE - 600 CARB, 2017 09- Frame Diagram
