Description

Price

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

1050

Stopper Strap

503192360

$20.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

1090

Center Shaft

503191764

$63.49

1100

Center Bushing

503191351

$8.29

1110

Flat Washer

250200143

$3.17

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

2000>2000a

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

2000a

Bushing

503191554

$6.14

2010

Axle

503190698

$20.99

2030

Washer

503192496

$0.77

2040

Washer

503191926

$1.58

2050

Hex. Cap Screw M10 X 60

207006056

$7.51

2060

Elastic Locking Nut M10

233601466

$2.11

2070

Lower Axle

503191966

$15.89

2090

Washer

503190656

$2.96

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000>3000u

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$232.99

3000b

Swivel Bushing

503191555

$7.83

3000c

Spring Cam Axe

503191178

$28.99

3000d

LH Spring Cam

503191191

$15.79

3000e

RH Spring Cam

503191190

$15.29

3000f

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

3000g

Cushion

503191640

$5.93

3000h

Lower Shaft

503192330

$45.99

3000j

Pivot Arm

503191302

$124.99

3000k

Block Guide

503189488

$39.99

3000m

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

3000n

LH Block, 4 Positions

503192301

$25.99

3000n

RH Block, 4 Positions

503192300

$25.99

3000q

Washer | 7415/7416. 7417/7418.

503189148

$2.85

3000r

Socket Head Screw M12 X 35

205523554

$4.44

3000s

Grease Fitting

408200700

$3.49

3000t

Washer

503191774

$2.32

3000u

Bushing

503191773

$16.79

3010

Black LH Spring, Square

503191613

$62.49

3010

Black RH Spring, Square

503191612

$62.49

3030

Spring Axle

503191344

$36.99

3040

Plastic Bushing

503191345

$7.83

3050

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

3070>3070b

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$37.99

3070a

Ball Bearing

503191778

$12.49

3070b

Retaining Ring

415129598

$12.01

3120

Upper Shaft

503191776

$45.99

3130

Bushing

503191775

$17.39

3140

Retaining Ring

503191782

$17.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192491

$4.54

3180

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$13.16

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503191802

$28.49

4030

Axle Bar (Long)

503190643

$17.39

4040

Bushing

503191553

$5.93

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

4140

LH Rocker Arm

503191890

$62.49

4150

RH Rocker Arm

503191894

$62.49

4160

Swivel Bushing

503191555

$7.83

4170

Bushing

503191552

$5.93

4180

Plastic Spacer

503190694

$2.11

4190

Central Shock Axle

503190604

$14.15

4200

Washer

503192496

$0.77

4210

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

5000a

Center Shock

503191590

$164.49

5000b

Adjustment Cam

505073625

$12.99

5000c

Black, Spring

503191329

$67.99

5000d

Protector

503193663

$37.99

5000e

Spring Guide

503191872

$2.29

5000f

Spring Stopper

706200881

$12.99

5000g

Urethane Bushing

503189117

$8.19

5000h

Bushing | Includes 240d to 240d1

503189282

$4.34

5000j

Bushing

503189271

$13.99

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5020

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock

503191582

$164.49

5570

Bushing

414936000

$13.99

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01

6000

Black, Wheel Cap

503192771

$2.39

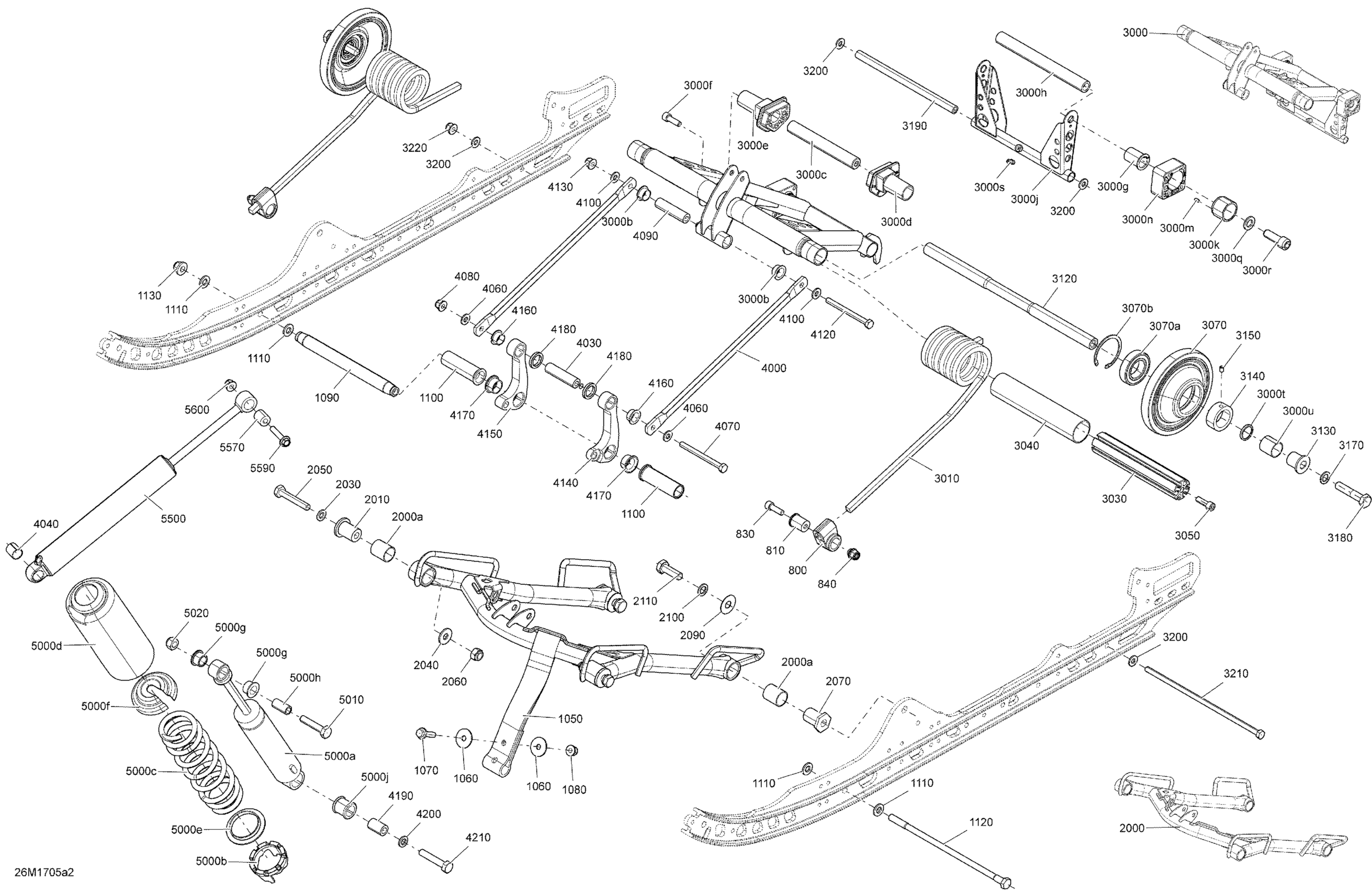

Ski-Doo MXZ - 2-STROKE - 600 CARB, 2017 08- Rear Suspension - Superior Diagram

Spring Support Kit

Spring Support Kit

Socket Screw M8 X 25

Elastic Flange Nut M8

Stopper Strap

Flat Washer 8 mm

Hex. Flange Screw M8 X 30 | DS 650 X

Elastic Flange Nut M8

Center Shaft

Center Bushing

Flat Washer

Bolt M10 X 251MM

Flange Elastic Nut M10

Front Arm Ass'y | Includes 2000 to 2000b

Bushing

Axle

Washer

Washer

Hex. Cap Screw M10 X 60

Elastic Locking Nut M10

Lower Axle

Washer

Washer

Hex. Cap Screw M12 X 35

Rear Arm Ass'y | Includes 3000 to 3000v

Swivel Bushing

Spring Cam Axe

LH Spring Cam

RH Spring Cam

Socket Head Screw M8 X 25, Scotch Grip | XXC

Cushion

Lower Shaft

Pivot Arm

Block Guide

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

LH Block, 4 Positions

RH Block, 4 Positions

Washer | 7415/7416. 7417/7418.

Socket Head Screw M12 X 35

Grease Fitting

Washer

Bushing

Black LH Spring, Square

Black RH Spring, Square

Spring Axle

Plastic Bushing

Socket Head Screw M8 X 25, Scotch Grip | XXC

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

Ball Bearing

Retaining Ring

Upper Shaft

Bushing

Retaining Ring

Socket Set Screw M6 X 8

Washer

Hex. Cap Screw M12 X 60, Scotch Grip

Pivot Arm Axle

Washer

Bolt M8 X 248mm

Elastic Flange Nut M8

Link Rod

Axle Bar (Long)

Bushing

Washer

Screw M8 X 90

Elastic Flange Nut M8

Axle Bar (Long)

Washer

Screw M8 X 90

Elastic Flange Nut M8

LH Rocker Arm

RH Rocker Arm

Swivel Bushing

Bushing

Plastic Spacer

Central Shock Axle

Washer

Hex. Screw M10 X 55, Scotch Grip | RT

Center Shock
