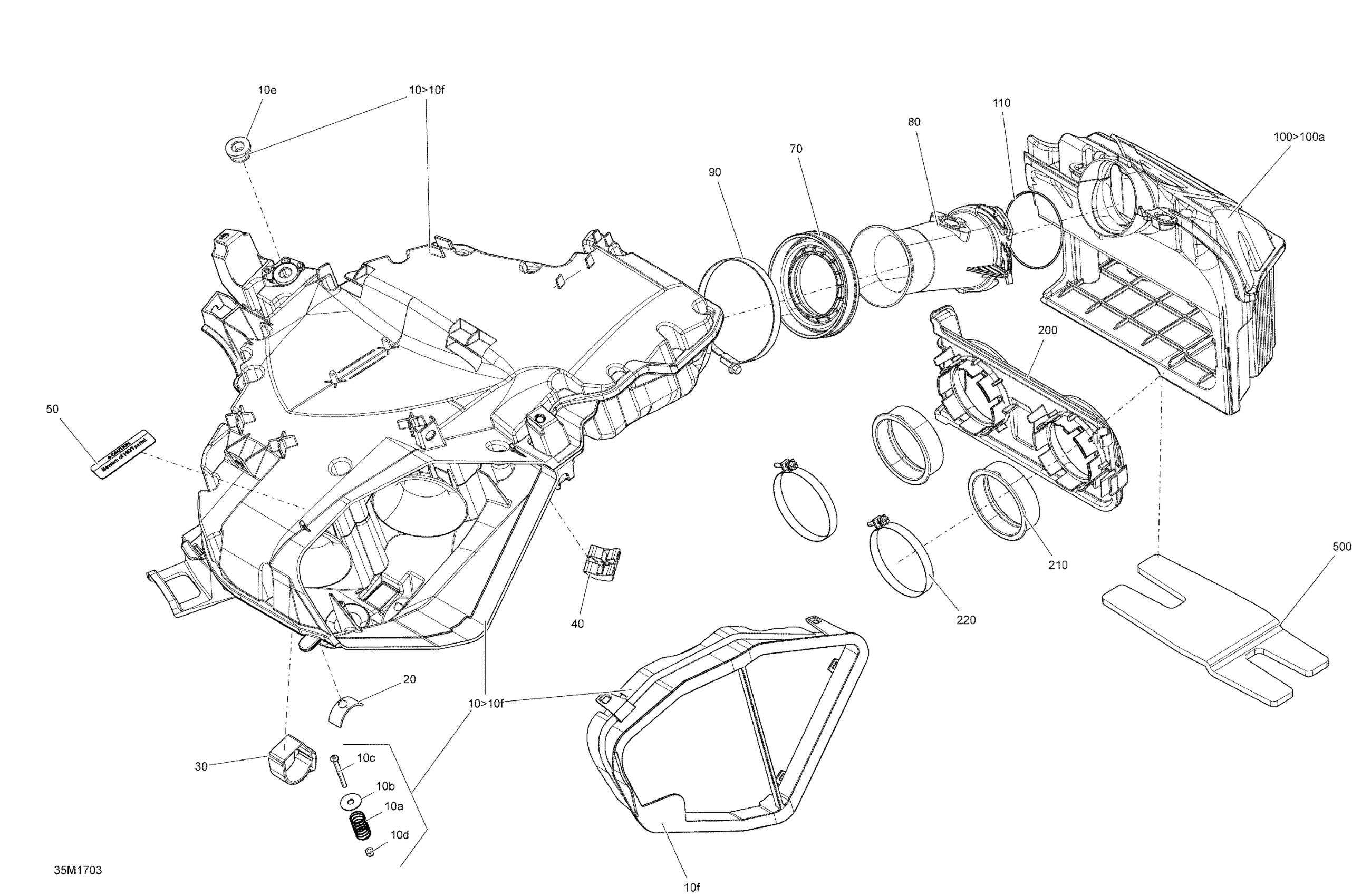

Ski-Doo MXZ - 2-STROKE - 600 CARB, 2017 Air Intake System Diagram

Description

Price

10>10f

Secondary Chamber Ass'y | Includes 10 to 10f

508000624

$146.12

10a

Spring

508000576

$7.35

10b

Flat Washer

224060201

$1.15

10c

Socket Head Screw M4 X 40

205444056

$1.74

10d

Elastic Stop Nut M4

232541414

$0.48

10e

Grommet

508000574

$7.35

10f

Air Intake Filter

508000568

$26.89

Stopper

508000537

$7.35

Velcro Strip

508000820

$7.35

Velcro Strip

508000820

$7.35

Bumper

508000572

Unavailable

Caution Decal Hot Parts

516005280

Unavailable

Boot

508000567

$16.89

Flute

508000661

$12.58

Norma Clamp

514052924

$10.58

100>100a

Primary Chamber Ass'y

508000680

$69.20

100a

Notice Decal, Air Intake Silencer

516005876

$4.12

110

O-Ring

293300115

$2.63

200

Plate Adapter

508000500

$18.43

210

Air Intake Adapter

508000501

$17.66

220

Gemi Clamp

508000346

$9.31

500

Insulated Foam

508000739

$8.38
