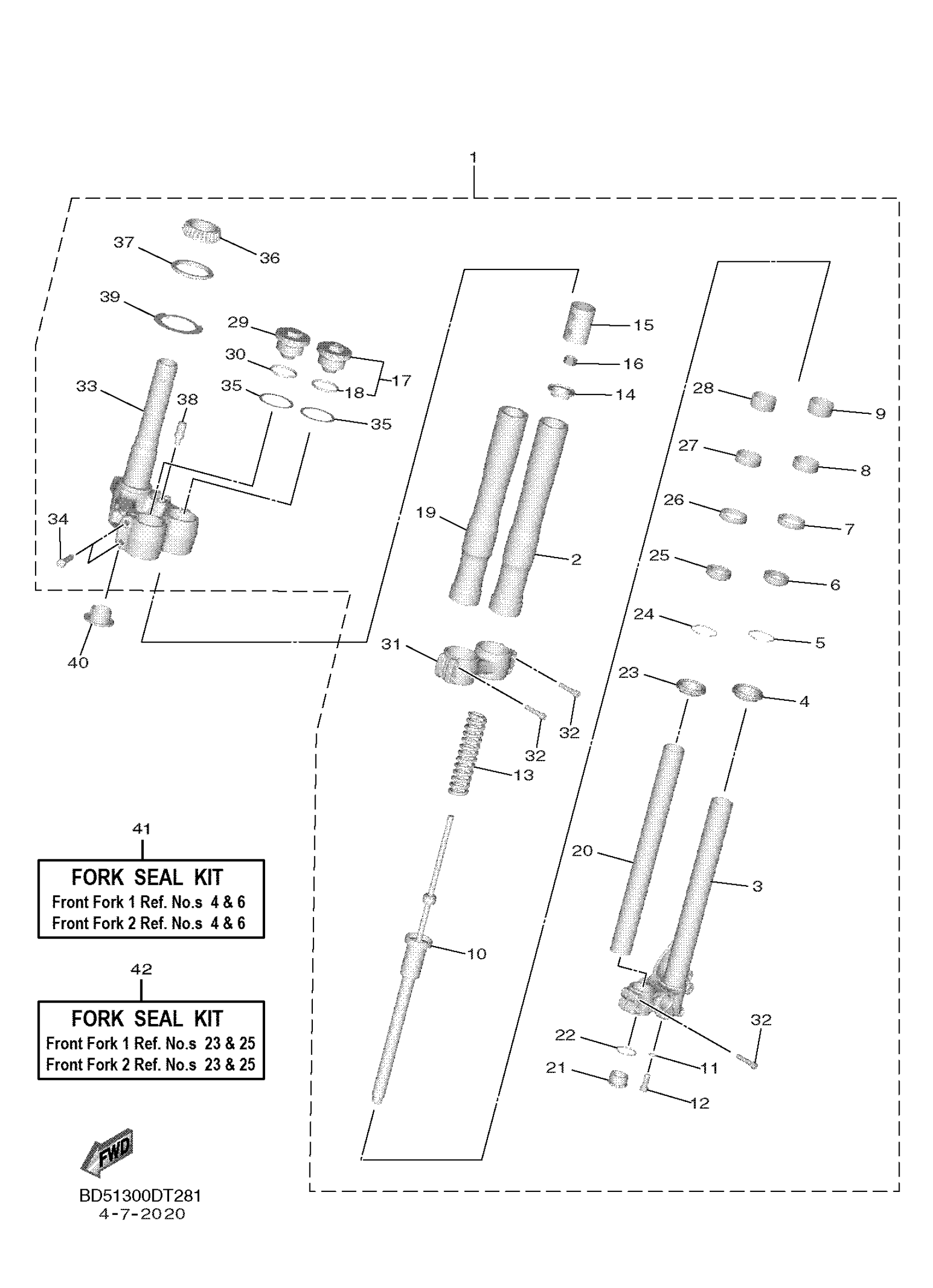

Yamaha MXT9KGY (NIKEN) BD5A 2019 FRONT FORK 1 Diagram

#

Description
Price

1

FORK UNIT ASSY

BD5-23130-01-00

$2,206.99

2

TUBE, OUTER (L.H)

BD5-23126-00-00

$460.99

3

INNER TUBE COMP.1

BD5-23110-00-00

$416.99

4

SEAL, DUST

4PU-23144-00-00

$24.99

5

RING, SNAP

4V4-23153-L0-00

$9.99

6

OIL SEAL

4PU-23145-01-00

$25.99

7

WASHER

4V4-23146-L0-00

$6.99

8

METAL, SLIDE 1

2CR-23125-00-00

$11.99

9

PISTON, FRONT FORK

5EB-23171-00-00

$34.99

10

CYLINDER COMP., FRONT FORK

BD5-23170-00-00

Unavailable

11

GASKET

509-23158-L0-00

$16.49

12

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

13

SPRING, FRONT FORK

BD5-23141-00-00

Unavailable

14

SEAT, SPRING UPPER

4XV-23142-00-00

Unavailable

15

SPACER

BD5-23118-00-00

Unavailable

16

NUT

3LC-23357-00-00

Unavailable

17

BOLT, CAP

BD5-23111-00-00

Unavailable

18

O-RING

3XJ-23147-L0-00

Unavailable

19

TUBE, OUTER 2

BD5-23136-00-00

Unavailable

20

TUBE, INNER

BD5-2332L-00-00

Unavailable

21

CAP

BD5-2384M-00-00

Unavailable

22

O-RING

1TP-23188-01-00

Unavailable

23

SEAL, DUST

4EB-23144-00-00

Unavailable

24

CLIP, OIL SEAL

26H-23156-00-00

Unavailable

25

OIL SEAL

4EB-23145-01-00

Unavailable

26

WASHER, OIL SEAL

36Y-23146-10-00

Unavailable

27

METAL, SLIDE 1

1RC-23125-00-00

Unavailable

28

METAL, SLIDE

4FM-23171-40-00

Unavailable

29

BOLT, CAP 2

BD5-2311J-00-00

Unavailable

30

O-RING

3XJ-23147-L0-00

Unavailable

31

BRKT., STABILIZER FR.

BD5-2386B-00-00

Unavailable

32

BOLT, SOCKET

91314-08035-00

Unavailable

33

UNDER BRACKET COMP.

BD5-23340-00-00

Unavailable

34

BOLT

BD5-23436-00-00

Unavailable

35

RING, SNAP

BD5-23153-00-00

Unavailable

36

INNER RACE ASSY.2

BD5-234H0-00-00

Unavailable

37

SEAL, DUST

BD5-23462-00-00

Unavailable

38

SCREW,STOPPER

BD5-2348H-00-00

Unavailable

39

COVER, BALL RACE 2

BD5-23416-00-00

Unavailable

40

CAP

BD5-2319U-00-00

Unavailable

41

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable

42

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
