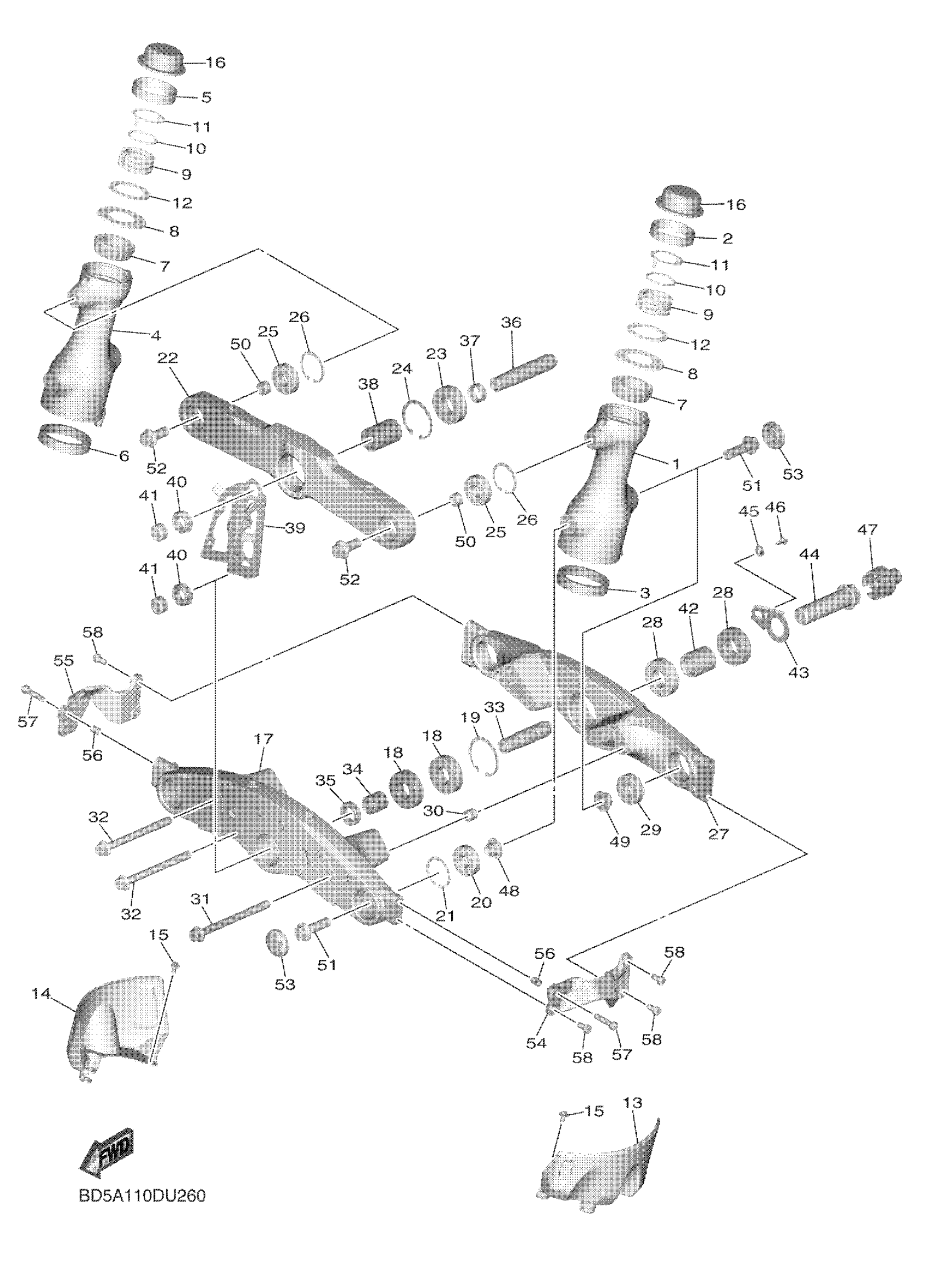

Yamaha MXT9GTLB (NIKEN GT) B5BA 2020 STEERING Diagram
#
1
PIPE STEERING HEAD
BD5-21311-10-00
Unavailable
3
RACE,OUTER 2
BD5-234G2-00-00
Unavailable
4
PIPE STEERING HEAD
BD5-21311-20-00
Unavailable
6
RACE,OUTER 2
BD5-234G2-00-00
Unavailable
7
INNER RACE ASSY.
BD5-234G0-00-00
Unavailable
8
COVER, BALL RACE 1
BD5-23415-00-00
Unavailable
9
NUT
BD5-23357-00-00
Unavailable
10
WASHER, SPECIAL 2
BD5-23386-00-00
Unavailable
11
WASHER, SPECIAL
BD5-23418-00-00
Unavailable
12
WASHER, PLATE
90201-400R2-00
Unavailable
16
CAP ASSY
BD5-24610-00-00
Unavailable
17
ARM 1
BD5-23361-00-98
Unavailable
18
BEARING(3JN)
93306-20531-00
Unavailable
19
CIRCLIP
93420-61M07-00
Unavailable
20
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
21
CIRCLIP(48Y)
99009-47500-00
Unavailable
22
ARM 3
BD5-23375-00-98
Unavailable
23
BEARING(3JN)
93306-20531-00
Unavailable
24
CIRCLIP
93420-61M07-00
Unavailable
25
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
26
CIRCLIP(48Y)
99009-47500-00
Unavailable
27
ARM 2
BD5-23371-00-98
Unavailable
28
BEARING(3JN)
93306-20531-00
Unavailable
29
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
30
PIN, DOWEL(3BM)
99530-17016-00
Unavailable
31
BOLT, FLANGE
95817-12150-00
Unavailable
32
BOLT, FLANGE
95812-12140-00
Unavailable
33
BOLT 1
BD5-23346-10-00
Unavailable
34
COLLAR
90387-24004-00
Unavailable
35
COLLAR
90387-24002-00
Unavailable
36
BOLT 2
BD5-23356-10-00
Unavailable
37
COLLAR
90387-24003-00
Unavailable
38
COLLAR
90387-24005-00
Unavailable
39
PLATE, FRONT ARM
BD5-23325-00-00
Unavailable
40
NUT, SELF-LOCKING
90185-22009-00
Unavailable
41
CAP, BOLT
BD5-23469-00-00
Unavailable
42
COLLAR
90387-28027-00
Unavailable
43
PLATE, BACK UP
BD5-23788-00-00
Unavailable
44
BOLT, SPECIAL
BD5-23394-10-00
Unavailable
45
COLLAR
90387-08079-00
Unavailable
46
BOLT, HEXAGON SOCKET HEAD
90110-06341-00
Unavailable
47
CAP 1
BD5-23741-01-00
Unavailable
48
COLLAR
90387-14022-00
Unavailable
49
COLLAR
90387-15021-00
Unavailable
50
COLLAR
90387-14023-00
Unavailable
51
BOLT
BD5-23493-00-00
Unavailable
52
BOLT
BD5-23492-00-00
Unavailable
53
CAP
BD5-2319W-00-00
Unavailable
54
STOPPER, STEERING 1
BD5-23432-00-00
Unavailable
55
STOPPER, STEERING 2
BD5-23439-00-00
Unavailable
56
PIN, DOWEL(2VG)
99530-10116-00
Unavailable
57
BOLT, SOCKET
91317-08035-00
Unavailable
58
BOLT, SOCKET
91317-08014-00
Unavailable
