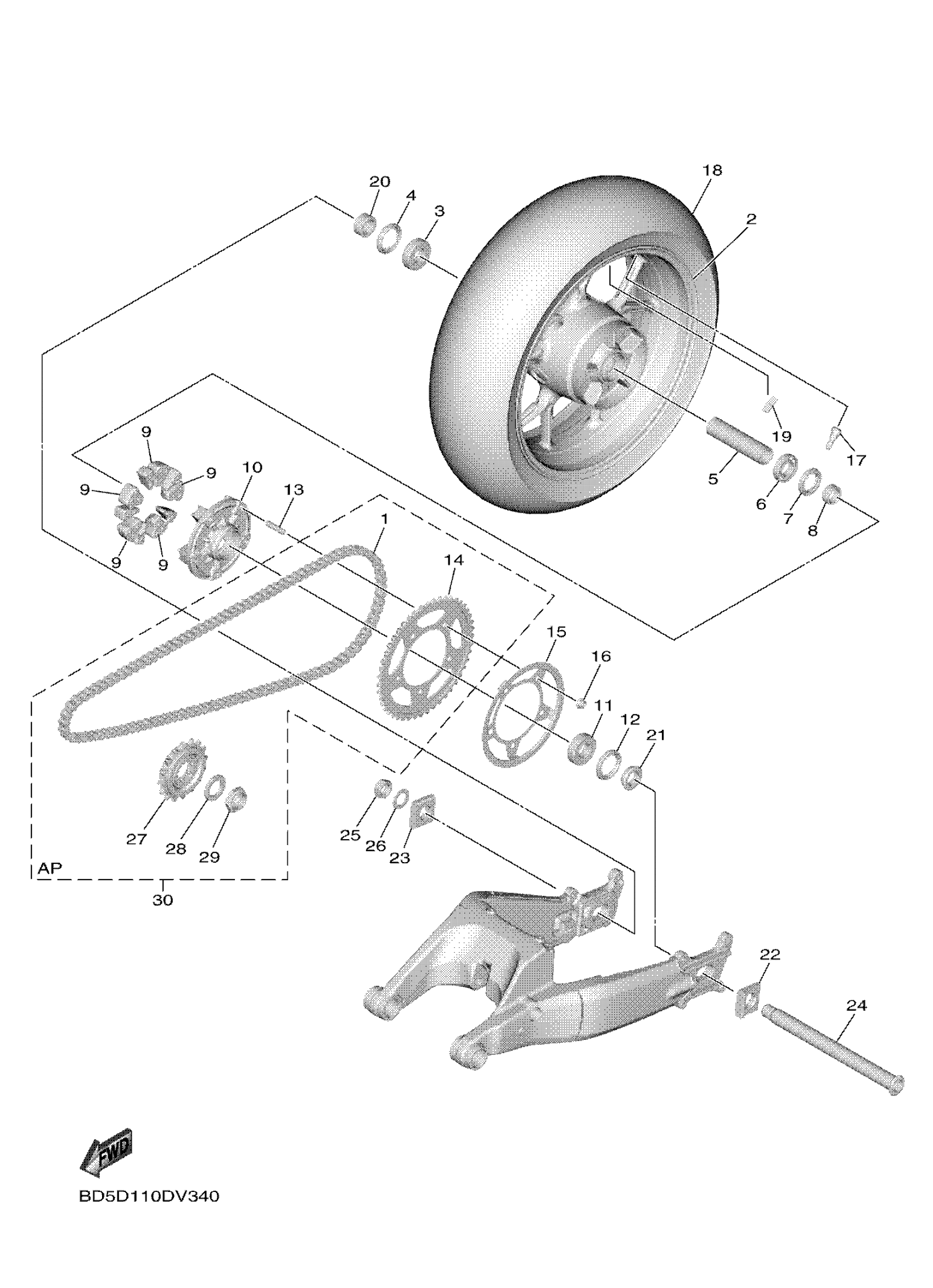

Yamaha MXT9GTLB (NIKEN GT) B5BA 2020 REAR WHEEL Diagram
#
Description
Price
1
CHAIN
94582-56114-00
Unavailable
5
SPACER, BEARING
2CR-25317-00-00
Unavailable
9
DAMPER
BD5-25364-00-00
Unavailable
13
BOLT, STUD
90116-10048-00
Unavailable
14
SPROCKET, DRIVEN (47T)
BD5-25447-00-00
Unavailable
15
BRACKET 1
BD5-2537W-00-00
Unavailable
16
NUT, S/L FLANGE
95602-10200-00
Unavailable
17
VALVE, RIM(2GH)
93900-00030-00
Unavailable
18
TIRE(190/55R17 M/C 75V)
94119-17076-00
Unavailable
19
BALANCER, WHEEL
2CR-25398-00-00
Unavailable
20
COLLAR
90387-28017-00
Unavailable
21
COLLAR
90387-28029-00
Unavailable
22
PULLER, CHAIN 1
5VY-25388-00-00
Unavailable
23
PULLER, CHAIN 2
5VY-25389-01-00
Unavailable
24
AXLE, WHEEL
4C8-25381-00-00
Unavailable
25
NUT, SELF-LOCKING
90185-24007-00
Unavailable
26
WASHER, PLATE
90201-25020-00
Unavailable
27
SPROCKET, DRIVE (16T)
5PS-17460-00-00
Unavailable
28
WASHER, CONICAL SPRING
90208-22002-00
Unavailable
29
NUT
90179-22018-00
Unavailable
30
CHAIN & SPROCKET KIT
B5B-W001A-00-00
Unavailable
