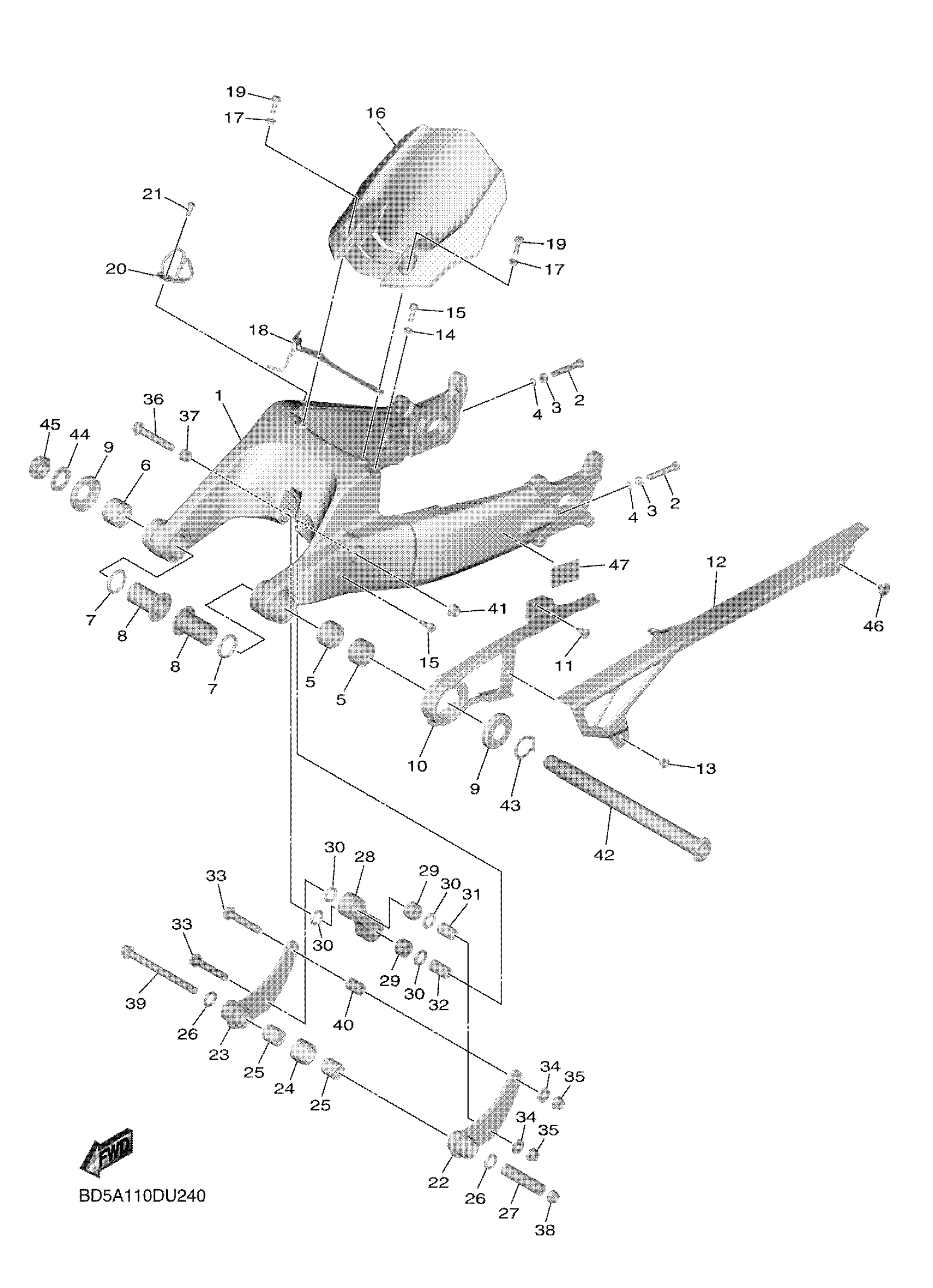

Yamaha MXT9GTLB (NIKEN GT) B5BA 2020 REAR ARM Diagram
#
1
REAR ARM COMP.
BD5-22110-00-00
Unavailable
8
COLLAR
90387-25039-00
Unavailable
9
COVER, THRUST 1
2C0-22128-00-00
Unavailable
10
SEAL, GUARD
BD5-22151-00-00
Unavailable
16
REAR FENDER COMP.
B67-21650-00-00
Unavailable
18
HOLDER, BRAKE HOSE 5
BD5-2588F-00-00
Unavailable
20
GUIDE, WIRE
BD5-27267-00-00
Unavailable
21
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
22
ARM, RELAY
BD5-2217A-00-00
Unavailable
23
ARM, RELAY 2
BD5-2217E-00-00
Unavailable
24
HOSE
90445-32002-00
Unavailable
25
BEARING, CYLINDRICAL(4PT)
93315-31750-00
Unavailable
26
OIL SEAL
93109-17071-00
Unavailable
27
SPACER
3GB-23448-00-00
Unavailable
28
ARM 1
BD5-2217M-00-00
Unavailable
29
BEARING
93315-31758-00
Unavailable
30
OIL SEAL
93109-17071-00
Unavailable
31
COLLAR
90387-1012A-00
Unavailable
32
COLLAR(1WG)
90387-102R4-00
Unavailable
33
BOLT, FLANGE
90105-10210-00
Unavailable
34
WASHER, PLATE
90201-10036-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
Unavailable
36
BOLT, FLANGE
90105-10211-00
Unavailable
37
COLLAR
90387-1013U-00
Unavailable
38
NUT, S/L FLANGE
95602-10200-00
Unavailable
39
BOLT, FLANGE
90105-10219-00
Unavailable
40
COLLAR
90387-1012A-00
Unavailable
41
NUT, S/L FLANGE
95602-10200-00
Unavailable
42
SHAFT, PIVOT
BD5-22141-00-00
Unavailable
43
WASHER, SPRING LOWER
BD5-22159-01-00
Unavailable
44
WASHER, PLATE
90201-22014-00
Unavailable
45
NUT, SELF-LOCKING
90185-22009-00
Unavailable
46
RIVET(4JH)
90269-07076-00
Unavailable
47
LABEL, TIRE
BD5-21668-10-00
Unavailable
