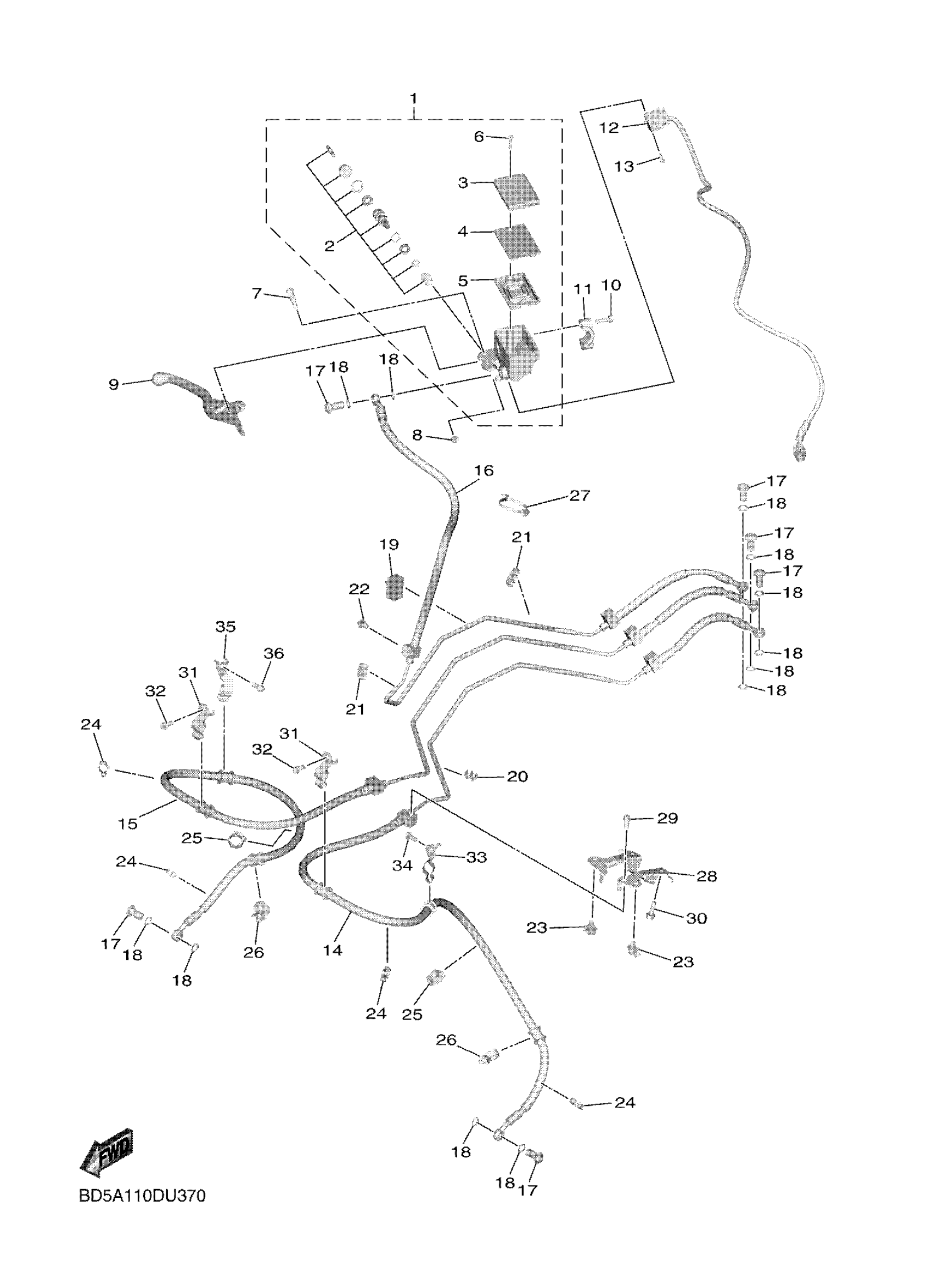

Yamaha MXT9GTLB (NIKEN GT) B5BA 2020 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

BD5-2580A-00-00

$115.12

2

CYLINDER KIT, MASTER

BD5-25807-00-00

Unavailable

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$13.33

5

GASKET, DIAPHRAGM

20S-25854-00-00

$21.07

6

SCREW

5VS-2589H-00-00

$3.16

7

BOLT, LEVER

5VS-2589F-00-00

$11.48

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

LEVER 2

5VS-83922-00-00

$68.90

10

BOLT

5VS-26332-00-00

$3.67

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$29.63

12

FRONT STOP SWITCH ASSY

BD5-83980-02-00

Unavailable

13

SCREW, PAN HEAD WITH WASHER

97602-04214-00

$5.20

14

BRAKE HOSE ASSY

BD5-2584A-00-00

Unavailable

15

HOSE, BRAKE

BD5-2584B-00-00

Unavailable

16

HOSE, BRAKE

BD5-2584C-02-00

Unavailable

17

BOLT, UNION

90401-10172-00

Unavailable

18

GASKET

90430-10005-00

Unavailable

19

CLAMP

90464-07262-00

Unavailable

20

CLIP(33M)

90468-15139-00

Unavailable

21

CLAMP

90464-07003-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06160-00

Unavailable

23

CLAMP

90464-07001-00

Unavailable

24

CLAMP

90464-12013-00

Unavailable

25

CLAMP

90464-16003-00

Unavailable

26

CLAMP

90464-14013-00

Unavailable

27

CLAMP

90464-45009-00

Unavailable

28

BRKT,BRAKE PIPE 2

BD5-2133J-00-00

Unavailable

29

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

30

BOLT, FLANGE

95817-06020-00

Unavailable

31

HOLDER, BRAKE HOSE 1

BD5-25875-00-00

Unavailable

32

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

33

HOLDER, BRAKE HOSE 2

BD5-25876-00-00

Unavailable

34

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

35

HOLDER, BRAKE HOSE

BD5-25887-00-00

Unavailable

36

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable
