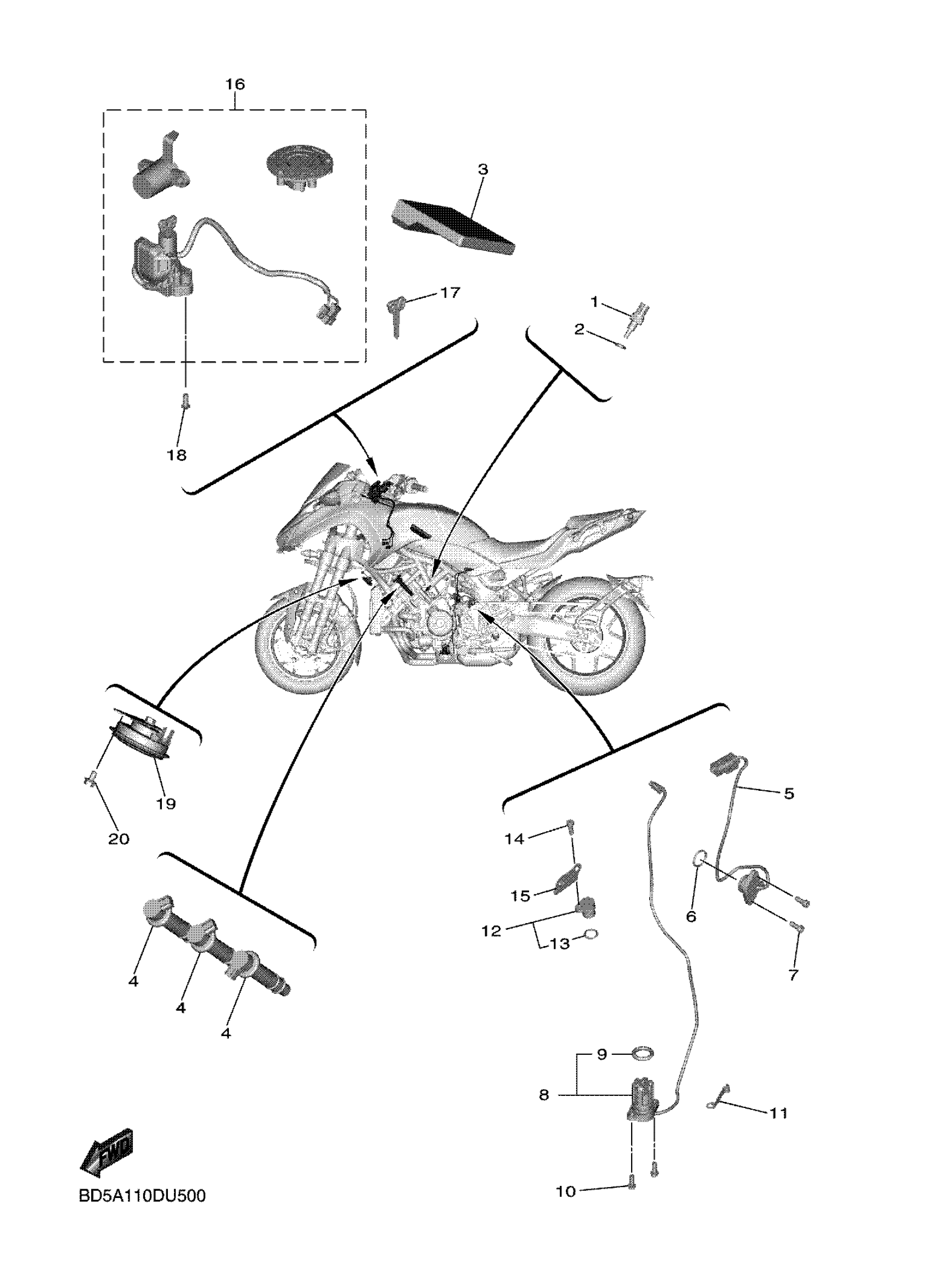

Yamaha MXT9GTLB (NIKEN GT) B5BA 2020 ELECTRICAL 2 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$5.55

2

THERMO UNIT

52B-H3591-00-00

Unavailable

3

ENGINE CONTROL UNIT ASSY

BD5-8591A-10-00

Unavailable

4

IGNITION COIL ASSY

39P-82310-10-00

$142.11

5

NEUTRAL SWITCH ASSY

BD5-82540-00-00

Unavailable

6

O-RING

93210-21001-00

$4.46

7

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$5.86

8

OIL LEVEL GAUGE ASSY

5S7-85720-00-00

$89.65

9

O-RING

5VY-8A8E0-00-00

$10.21

10

BOLT, FLANGE

95022-06016-00

$3.11

11

CLAMP

90465-08053-00

Unavailable

12

PLUG, BLIND

3P6-15399-00-00

Unavailable

13

O-RING (22U)

93210-15566-00

$5.39

14

BOLT,SOCKET

91317-06016-00

$1.15

15

PLATE

BD5-15113-00-00

Unavailable

16

MAIN SWITCH SET

BD5-Y825C-01-00

Unavailable

17

BLANK KEY

4BH-82511-09-00

Unavailable

18

BOLT

90109-08196-00

Unavailable

19

HORN

BD5-83371-00-00

Unavailable

20

BOLT, FLANGE

95817-06010-00

Unavailable
