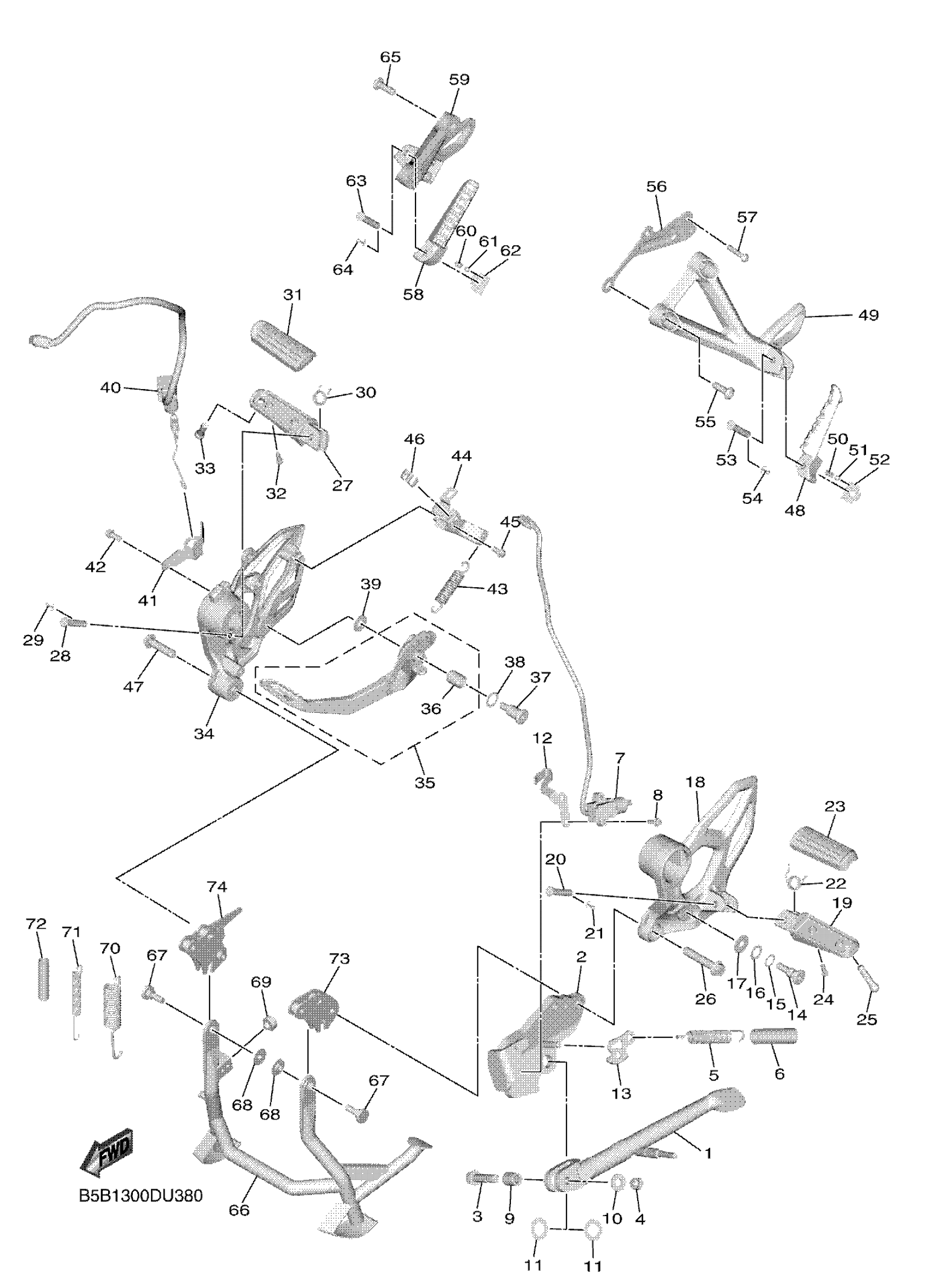

Yamaha MXT9GTKL (NIKEN GT) B5B7 2019 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

BD5-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

BD5-27321-00-00

Unavailable

3

BOLT (4R4)

90105-10188-00

$13.49

4

NUT, U

95617-10100-00

$8.49

5

SPRING, MAIN STAND

2S3-27116-00-00

Unavailable

6

HOSE (L60)

90445-197J2-00

$4.61

7

SWITCH, SIDE STAND

1RC-82566-51-00

$67.99

8

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

9

COLLAR

90387-10050-00

Unavailable

10

WASHER, PLATE

90201-10035-00

$4.19

11

WASHER, PLATE

90201-17018-00

Unavailable

12

BRACKET 1

BD5-27323-00-00

Unavailable

13

LINK, SIDE STAND

2S3-27315-00-00

Unavailable

14

BOLT

2S3-27217-10-00

Unavailable

15

WASHER, WAVE (17W)

90206-12074-00

$9.49

16

WASHER, PLATE

90201-12013-00

Unavailable

17

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

18

BRACKET 2

BD5-27442-00-00

Unavailable

19

FOOTREST

4BH-27451-01-00

Unavailable

20

PIN, CLEVIS

91702-08040-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

22

SPRING, TORSION

90508-183B9-00

Unavailable

23

COVER, FOOTREST

BD5-27413-00-00

Unavailable

24

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

25

BOLT

90109-08202-00

Unavailable

26

BOLT, FLANGE

90105-10209-00

Unavailable

27

FOOTREST

4BH-27461-01-00

Unavailable

28

PIN, CLEVIS

91702-08040-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable

30

SPRING, TORSION

90508-184B0-00

Unavailable

31

COVER, FOOTREST

BD5-27413-00-00

Unavailable

32

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

33

BOLT

90109-08202-00

Unavailable

34

BRACKET 3

BD5-27443-00-00

Unavailable

35

PEDAL, BRAKE

BD5-27211-00-00

Unavailable

36

BUSH

90386-14171-00

Unavailable

37

BOLT

4C8-27434-10-00

Unavailable

38

WASHER, WAVE(6T4)

90206-14086-00

Unavailable

39

WASHER 6154275100

90201-08103-00

Unavailable

40

STOP SWITCH ASSY

BD5-82530-00-00

Unavailable

41

STAY, STOP SWITCH

BD5-2144G-00-00

Unavailable

42

BOLT, HEXAGON SOCKET HEAD

90110-06398-00

Unavailable

43

SPRING, TENSION

90506-26012-00

Unavailable

44

BRACKET 1

BD5-27263-00-00

Unavailable

45

BOLT, FLANGE

95022-06012-00

Unavailable

46

CLAMP

90464-11015-00

Unavailable

47

BOLT, FLANGE

90105-10252-00

Unavailable

48

FOOTREST, REAR 1

B5C-27431-00-00

Unavailable

49

BRACKET 4

BD5-2741L-00-00

Unavailable

50

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

51

BALL

93501-04011-00

Unavailable

52

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

53

PIN, CLEVIS

91702-08040-00

Unavailable

54

PIN, COTTER

91490-25020-00

Unavailable

55

BOLT,HEX. SOCKET BUTTON

90111-08057-00

Unavailable

56

HOLDER

BD5-27911-00-00

Unavailable

57

BOLT, BUTTON

92017-06030-00

Unavailable

58

FOOTREST, REAR 2

B5C-27441-00-00

Unavailable

59

BRACKET 5

BD5-2742L-00-00

Unavailable

60

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

61

BALL

93501-04011-00

Unavailable

62

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

63

PIN, CLEVIS

91702-08040-00

Unavailable

64

PIN, COTTER

91490-25020-00

Unavailable

65

BOLT,HEX. SOCKET BUTTON

90111-08057-00

Unavailable

66

STAND, MAIN

B5B-27111-00-00

Unavailable

67

BOLT

90109-10065-00

Unavailable

68

COLLAR

90387-10119-00

Unavailable

69

STOPPER, MAIN STAND

B5B-27114-00-00

Unavailable

70

SPRING, MAIN STAND

2PP-27116-00-00

Unavailable

71

SPRING, MAIN STAND

2PP-27116-10-00

Unavailable

72

HOSE (L75)

90445-19003-00

Unavailable

73

BRACKET, MAIN STAND

B5B-27151-00-00

Unavailable

74

BRACKET, MAIN STAND 2

B5B-27152-00-00

Unavailable
