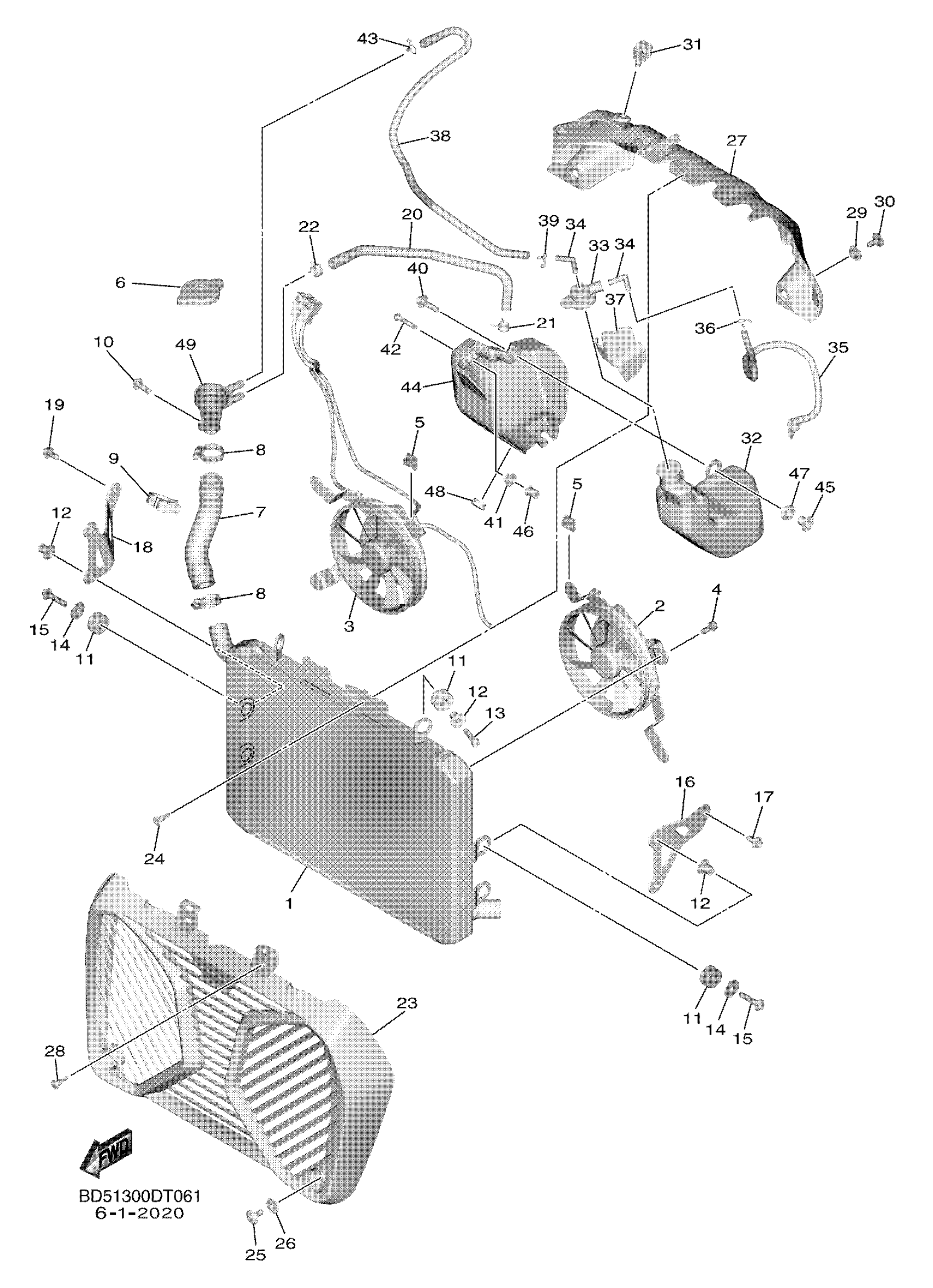

Yamaha MXT9GTKL (NIKEN GT) B5B7 2019 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR COMP

BD5-12461-00-00

Unavailable

2

BLOWER ASSY

BD5-12405-00-00

Unavailable

3

BLOWER ASSY

BD5-12405-10-00

Unavailable

4

BOLT, BLOWER HOLDING

3D8-12675-00-00

$7.99

5

PLATE

1AA-12535-00-00

$14.49

6

CAP, RADIATOR

4FL-12462-00-00

$62.99

7

HOSE 6

BD5-12589-00-00

Unavailable

8

HOSE CLAMP ASSY

90450-32003-00

$16.99

9

CLAMP

90464-23004-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-06048-00

Unavailable

11

GROMMET (29L)

90480-15363-00

$8.49

12

COLLAR

90387-06158-00

$8.49

13

BOLT,SOCKET

91317-06025-00

$5.60

14

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

15

BOLT, HEXAGON SOCKET HEAD

90110-06415-00

Unavailable

16

BRACKET, RADIATOR

BD5-2142K-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06428-00

Unavailable

18

BRACKET, RADIATOR 2

BD5-2142L-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06428-00

Unavailable

20

HOSE 1

BD5-12576-00-00

Unavailable

21

CLIP (3G0)

90467-10039-00

Unavailable

22

CLIP(3YX)

90467-13133-00

Unavailable

23

GRILL, AIR INTAKE 1

BD5-2837N-00-00

Unavailable

24

RIVET

90269-06001-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

26

COLLAR

90387-06066-00

Unavailable

27

COVER, RADIATOR

BD5-12467-00-00

Unavailable

28

RIVET

90269-06001-00

Unavailable

29

COLLAR

90387-06066-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

31

CLAMP

90464-12018-00

Unavailable

32

TANK, RECOVERY

1RC-21871-00-00

Unavailable

33

CAP

1RC-21875-01-00

Unavailable

34

ELBOW

1RC-21828-00-00

Unavailable

35

PIPE, BREATHER

1RC-21826-00-00

Unavailable

36

CLIP (16G)

90467-08021-00

Unavailable

37

PROTECTOR 1

1RC-22825-00-00

Unavailable

38

PIPE 1

BD5-21816-00-00

Unavailable

39

CLIP (8L2)

90467-08017-00

Unavailable

40

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

41

COLLAR

1RC-21748-00-00

Unavailable

42

BOLT, BUTTON HEAD

92012-05030-00

Unavailable

43

CLIP

90467-100A1-00

Unavailable

44

COVER

1RC-2172W-00-00

Unavailable

45

COLLAR

90387-06285-00

Unavailable

46

NUT(1KT)

90179-05523-00

Unavailable

47

COLLAR

1RC-21749-00-00

Unavailable

48

GROMMET (420)

90480-14153-00

Unavailable

49

SUPT, FILLER NECK

BD5-12591-00-00

Unavailable
