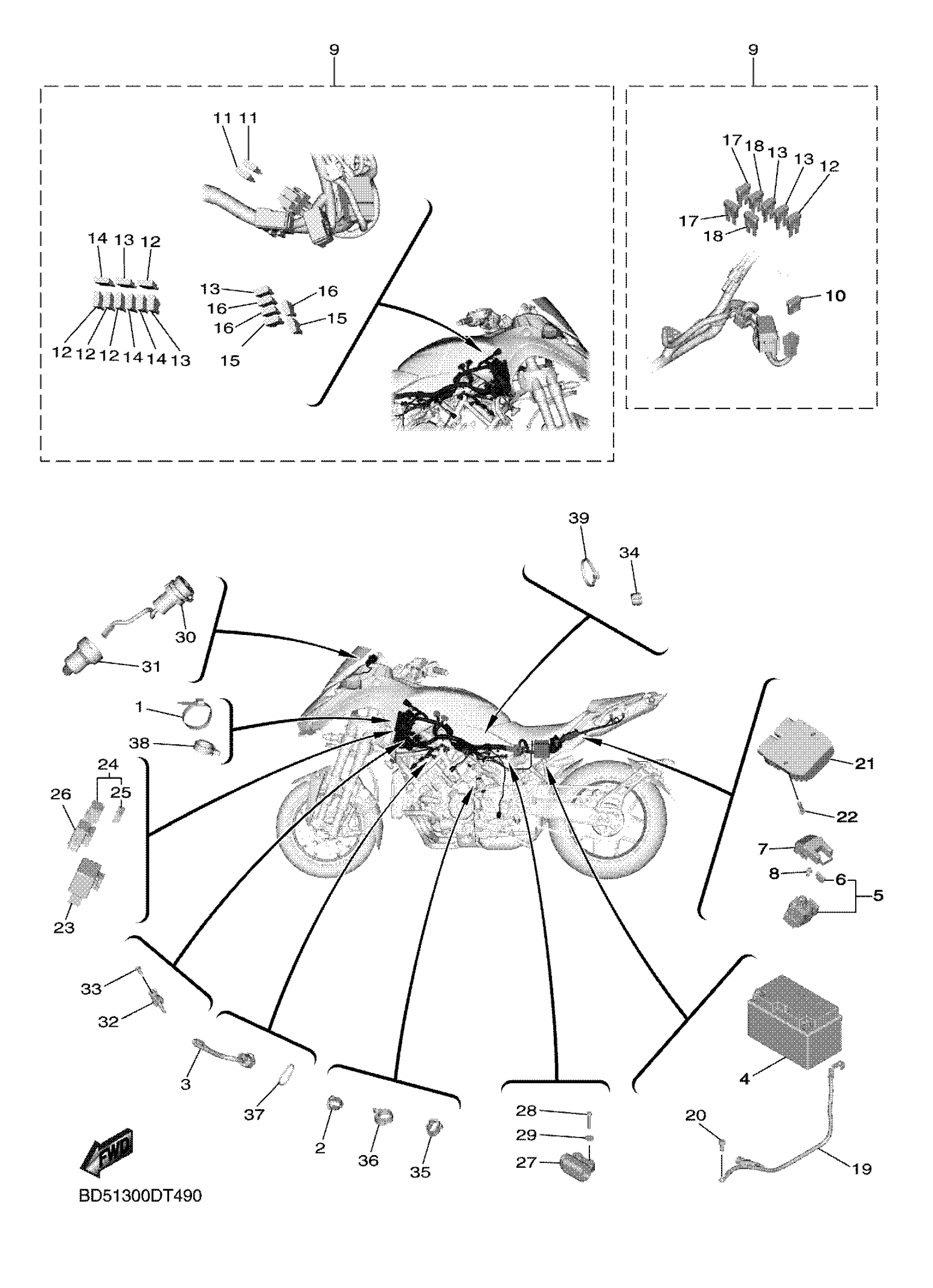

Yamaha MXT9GTKL (NIKEN GT) B5B7 2019 ELECTRICAL 1 Diagram

#

Description
Price

1

CLAMP(4FM)

90464-15195-00

$4.41

2

CLAMP

90464-14010-00

$3.40

3

WIRE, SUB LEAD

1RC-82509-00-00

$20.99

4

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

5

STARTER RELAY ASSY

1XC-81940-00-00

$65.99

6

FUSE (12V 30A)

1AE-82151-00-00

$7.99

7

COVER, LEAD WIRE

5SL-82119-30-00

$3.74

8

BOLT, FLANGE

95022-06008-00

$8.49

9

WIRE HARNESS ASSY

BD5-82590-10-00

Unavailable

10

FUSE (50A)

5JW-82151-10-00

$16.49

11

FUSE

1MC-82151-00-00

$3.22

12

. FUSE (10A)

67F-82151-40-00

Unavailable

13

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

14

FUSE (2A-BL)

5JJ-82151-80-00

$7.99

15

FUSE (15A)

67F-82151-50-00

Unavailable

16

FUSE (5A)

67F-82151-20-00

Unavailable

17

FUSE (25A-BL)

5JJ-82151-70-00

Unavailable

18

FUSE

5JJ-82151-20-00

Unavailable

19

WIRE, MINUS LEAD

BD5-82116-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

Unavailable

22

BOLT, FLANGE

95022-06025-00

Unavailable

23

RELAY ASSY

5VK-81950-43-00

Unavailable

24

RELAY ASSY

1TP-81950-00-00

Unavailable

25

HOLDER,RELAY

5EA-81952-00-00

Unavailable

26

RELAY ASSY

5DM-81950-01-00

Unavailable

27

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

28

BOLT

91312-04025-00

Unavailable

29

WASHER, PLATE

90201-04030-00

Unavailable

30

TERMINAL COMP.

BD5-8254B-00-00

Unavailable

31

COVER, TERMINAL

BD5-81916-00-00

Unavailable

32

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

33

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

34

CLAMP

90464-14010-00

$3.40

35

CLAMP

90464-14010-00

$3.40

36

CLAMP(4AP)

90464-20181-00

Unavailable

37

CLAMP(4FM)

90464-15195-00

$4.41

38

CLAMP(JN2)

90464-12183-00

Unavailable

39

CLAMP

90464-16061-00

Unavailable
