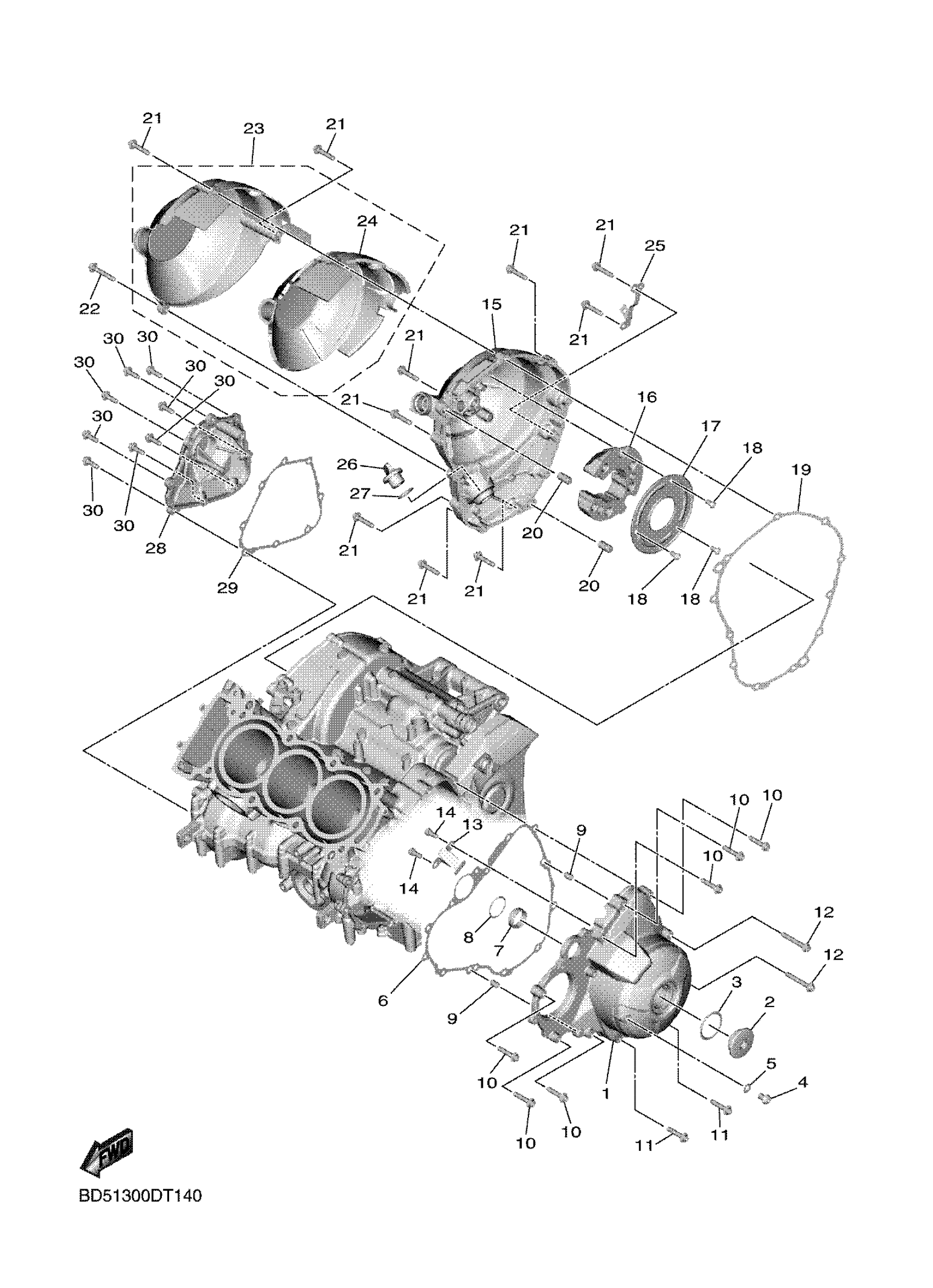

Yamaha MXT9GTKL (NIKEN GT) B5B7 2019 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1RC-15411-01-00

$131.99

2

PLUG, STRAIGHT SCREW

90340-36003-00

$25.99

3

O-RING

93210-35804-00

$0.48

4

BOLT, BUTTON HEAD

92017-08012-00

$8.49

5

. GASKET

90430-08143-00

Unavailable

6

GASKET, CRANKCASE COVER 1

BD5-15451-01-00

$17.99

7

PIPE, WATER

1RC-12564-00-00

$6.99

8

O-RING

93210-28543-00

Unavailable

9

PIN, DOWEL

99530-08012-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

11

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

12

BOLT, HEXAGON SOCKET HEAD

90110-06394-00

$2.17

13

CLAMP 2

1RC-15484-00-00

$5.49

14

BOLT (33M)

91312-06014-00

$5.60

15

COVER, CRANKCASE 2

1RC-15421-11-00

$117.99

16

DAMPER 1

B90-15316-00-00

Unavailable

17

COVER

B90-15492-00-00

Unavailable

18

SCREW

90149-06156-00

Unavailable

19

GASKET, CRANKCASE COVER 2

1RC-15461-00-00

Unavailable

20

PIN, DOWEL(72M)

93610-20189-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

22

BOLT, HEXAGON SOCKET HEAD

90110-06321-00

Unavailable

23

COVER ASSY

BS2-15490-10-00

Unavailable

24

DAMPER 2

B90-15326-00-00

Unavailable

25

PLATE

BD5-15191-00-00

Unavailable

26

PLUG, OIL

5GJ-15363-10-00

Unavailable

27

O-RING (646)

93210-19123-00

Unavailable

28

COVER, OIL PUMP

1RC-15416-10-00

Unavailable

29

GASKET, OIL PUMP COVER 1

1RC-15456-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable
