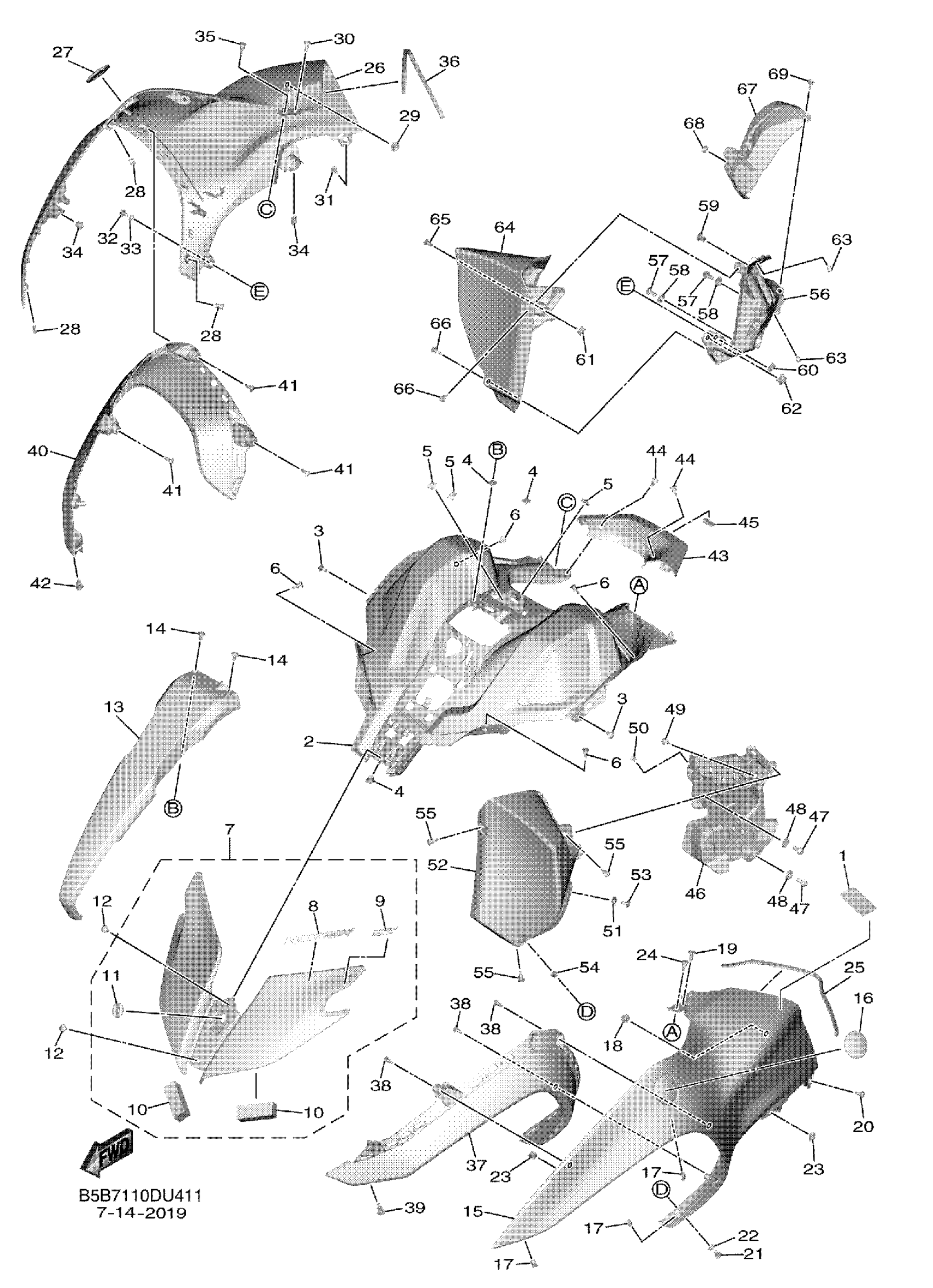

Yamaha MXT9GTKL (NIKEN GT) B5B7 2019 COWLING 2 Diagram

#

Description
Price

1

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

$3.38

2

COVER, UPPER 1

BD5-23121-00-00

Unavailable

3

BOLT

90111-05002-00

$7.49

4

NUT, SPRING

90183-050A6-00

$8.49

5

NUT, SPRING(1YT)

90183-05042-00

$5.60

6

RIVET

90269-06008-00

$9.49

7

COVER, HEADLIGHT 1 ASSY

BD5-Y2B38-10-P1

$363.99

8

EMBLEM 3D

BD5-2839B-10-00

$77.99

9

EMBLEM 3D

B5B-2839B-00-00

Unavailable

10

DAMPER, AIR SHROUD 5

13S-12678-00-00

$7.99

11

GROMMET(4BH)

90480-01559-00

$5.60

12

BOLT

90111-05002-00

$7.49

13

PANEL, FRONT

BD5-23391-00-00

Unavailable

14

BOLT

90111-05002-00

$7.49

15

COVER 1

BD5-2842M-00-P1

Unavailable

16

EMBLEM

1RC-2413B-02-00

Unavailable

17

CLAMP

90464-04005-00

Unavailable

18

RIVET

90269-09006-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

20

BOLT, WASHER BASED

90105-05002-00

Unavailable

21

BOLT

90111-05002-00

$7.49

22

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

23

NUT, SPRING

90183-050A6-00

$8.49

24

RIVET

90269-06008-00

$9.49

25

DAMPER

2C0-2174X-00-00

Unavailable

26

COVER 2

BD5-2842N-00-P1

Unavailable

27

EMBLEM

1RC-2413B-02-00

Unavailable

28

CLAMP

90464-04005-00

Unavailable

29

RIVET

90269-09006-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

31

BOLT, WASHER BASED

90105-05002-00

Unavailable

32

BOLT

90111-05002-00

$7.49

33

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

34

NUT, SPRING

90183-050A6-00

$8.49

35

RIVET

90269-06008-00

$9.49

36

DAMPER

2C0-2174X-00-00

Unavailable

37

MOLE 1

BD5-28345-00-00

Unavailable

38

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

39

RIVET

90269-07007-00

Unavailable

40

MOLE 2

BD5-28346-00-00

Unavailable

41

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

42

RIVET

90269-07007-00

Unavailable

43

PANEL, CONSOLE 1

BD5-2837L-00-00

Unavailable

44

RIVET

90269-06008-00

$9.49

45

DAMPER

5LP-82176-00-00

Unavailable

46

BRACKET 5

BD5-2836H-00-00

Unavailable

47

BOLT

90111-06059-00

Unavailable

48

COLLAR

90387-06170-00

Unavailable

49

RIVET

90269-06008-00

$9.49

50

PLUG(1NL)

90338-07180-00

Unavailable

51

NUT, SPRING

90183-050A6-00

$8.49

52

BOX

BD5-21248-01-00

Unavailable

53

BOLT

90111-05002-00

$7.49

54

NUT, SPRING

90183-050A6-00

$8.49

55

RIVET

90269-06008-00

$9.49

56

BRACKET 6

BD5-2836J-00-00

Unavailable

57

BOLT

90111-06059-00

Unavailable

58

COLLAR

90387-06170-00

Unavailable

59

RIVET

90269-06081-00

Unavailable

60

NUT, SPRING

90183-050A6-00

$8.49

61

NUT, SPRING(1YT)

90183-05042-00

$5.60

62

NUT, SPRING

90183-061A1-00

Unavailable

63

PLUG(1NL)

90338-07180-00

Unavailable

64

BOX

BD5-21258-00-00

Unavailable

65

SCREW, TAPPING

90167-05080-00

Unavailable

66

RIVET

90269-06008-00

$9.49

67

COVER

BD5-2135F-00-00

Unavailable

68

COLLAR

90387-06009-00

Unavailable

69

RIVET

90269-06008-00

$9.49
