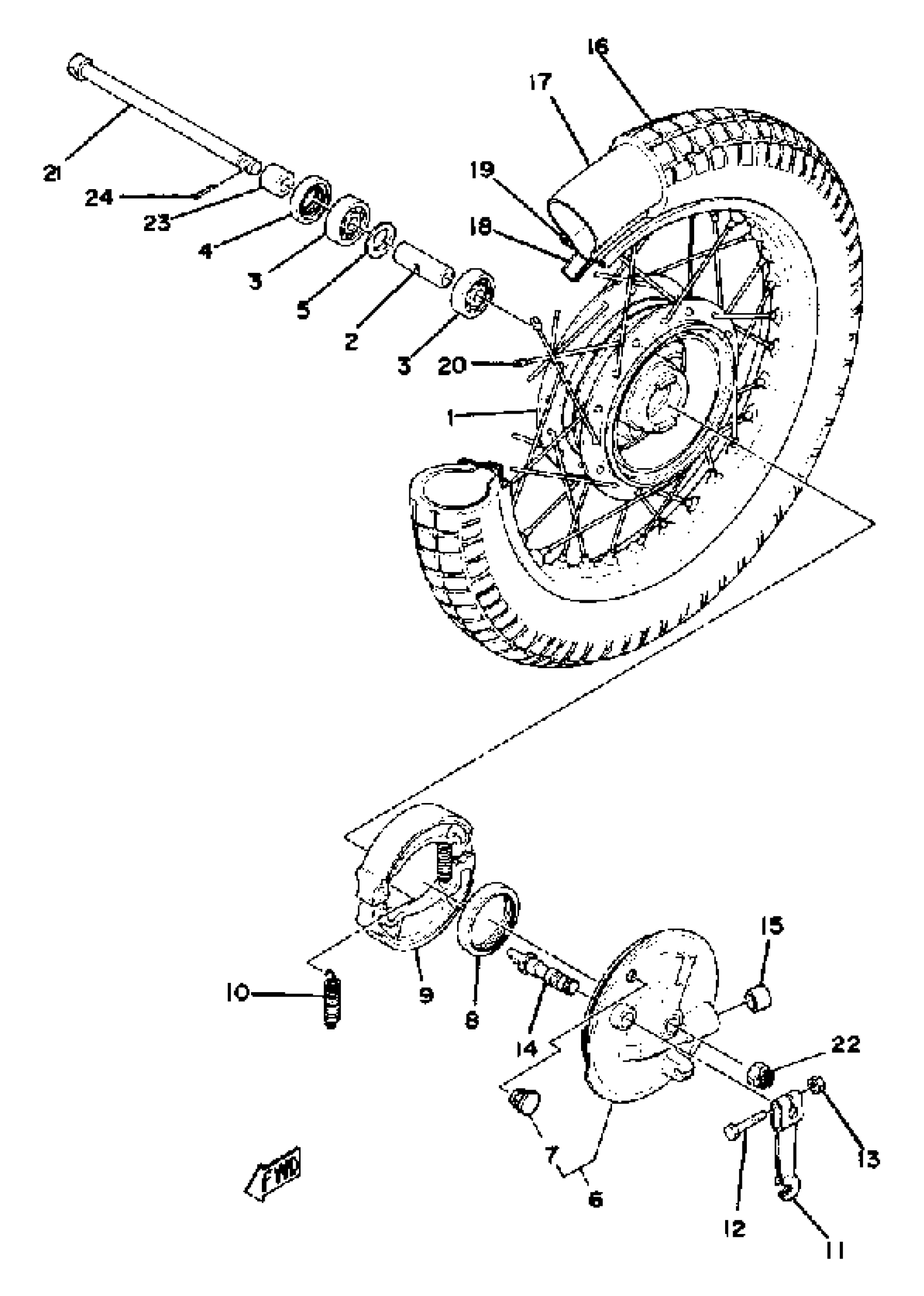

Yamaha MX80H (MX80) 1981 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(367-25111-00-Y8)

Unavailable

2

SPACER, BEARING

90560-10303-00

Unavailable

3

BRG,R-B 6300 35MM 58G NT

93306-30003-00

$41.99

4

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

5

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

6

PLATE, BRAKE SHOE

1K8-25121-00-35

Unavailable

7

GROMMET (397)

90480-10068-00

$8.49

8

SEAL,OIL

93105-47007-00

$15.99

9

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

10

SPRING, TENSION (566).

90506-16150-00

$9.49

11

LEVER, CAMSHAFT 1

538-25155-00-00

Unavailable

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

CAMSHAFT

4GL-25351-00-00

$68.99

15

PLUG 288251390000

90338-18014-00

Unavailable

16

250-15 IRC TRIALS

94125-15478-00

Unavailable

17

TUBE (1K8)

94225-15103-00

Unavailable

18

BAND, RIM(3DM)

94313-15154-00

Unavailable

19

RIM 1.40X15

94414-15058-00

Unavailable

20

SPOKE SET, FRONT

288-25104-01-00

Unavailable

21

AXLE, WHEEL

99999-02188-00

Unavailable

22

NUT 3532518200

90171-10004-00

Unavailable

23

COLLAR

90387-10077-00

Unavailable

24

PIN, COTTER

91490-20025-00

Unavailable
