1981 Yamaha MX80 (MX80H) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Yamaha MX80 (MX80H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

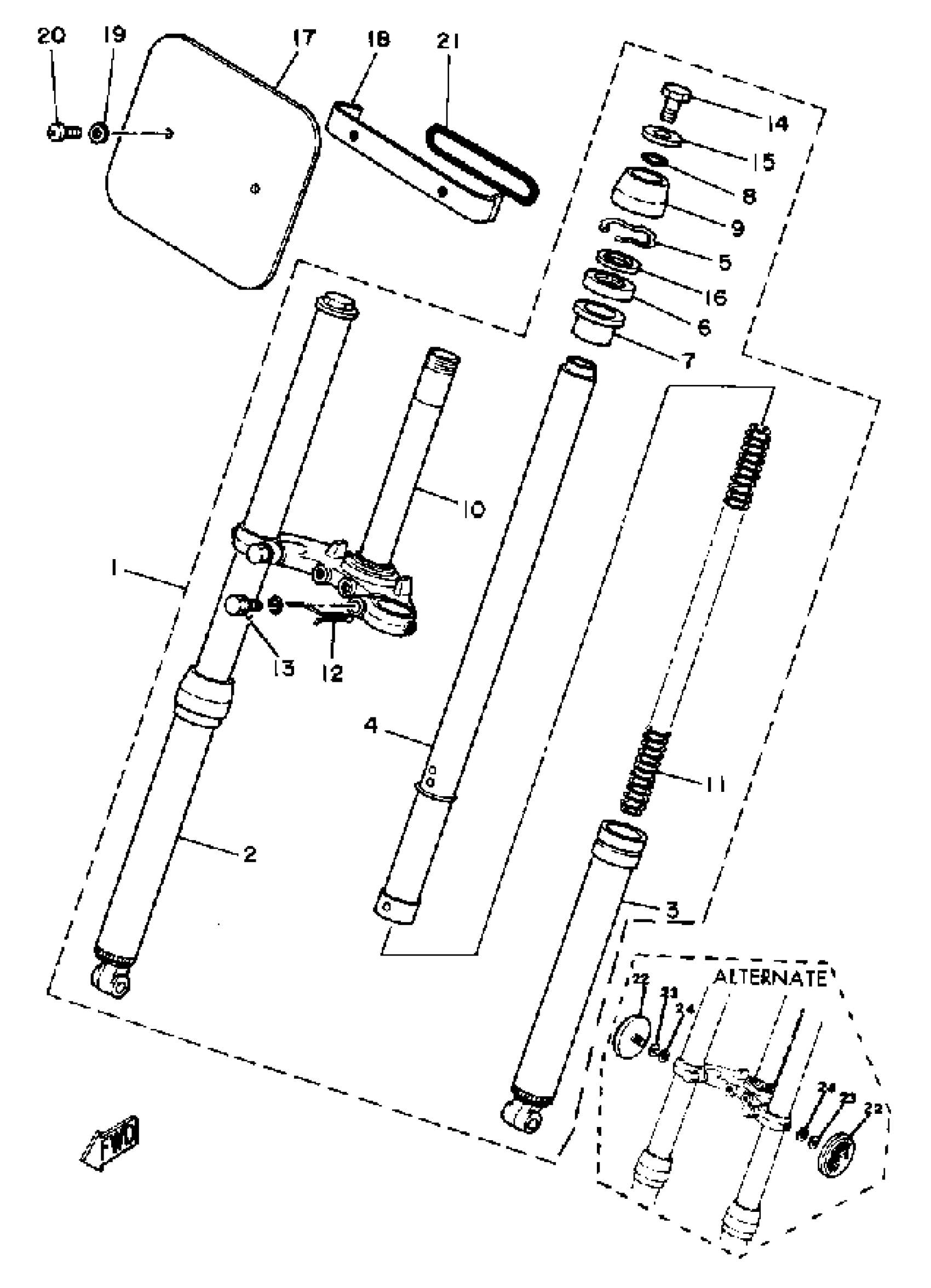

1981 Yamaha MX80 (MX80H) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(367-23101-62-00)

1
Out of stock

2

TUBE, OUTER 2

(367-23136-62-35)

1
Out of stock

3

TUBE, OUTER 1

(367-23126-62-35)

1
Out of stock

4

TUBE, INNER 2

(367-23134-62-00)

1
Out of stock

5

CLIP (1T8)

1T8-23156-00-00

1
Out of stock

6

OIL SEAL

3VR-23145-00-00

1

$27.28

In stock

7

METAL, SLIDE 1

367-23125-60-00

1

$28.03

In stock

8

GASKET

307-23114-00-00

1
Out of stock

9

. SEAL, DUST

367-23144-60-00

1
Out of stock

10

. UNDER BRACKET

367-23340-60-33

1
Out of stock

11

SPRING, FRONT FORK

(367-23141-62-00)

1
Out of stock

12

HOLDER, CABLE 2

(2A3-23319-00-00)

1
Out of stock

13

BOLT 1

122-23346-02-00

1

$6.25

In stock

14

. BOLT, CAP

395-23111-00-00

1
Out of stock

15

WASHER, CAP

207-23112-00-00

—

$21.37

In stock

16

WASHER, OIL SEAL

(367-23146-60-00)

1
Out of stock

17

. PLATE, NUMBER

288-23485-00-00

1
Out of stock

18

. STAY, PLATE

288-23486-00-00

1
Out of stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

20

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

21

. BAND

288-23489-00-00

1
Out of stock

22

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

23

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

24

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock
