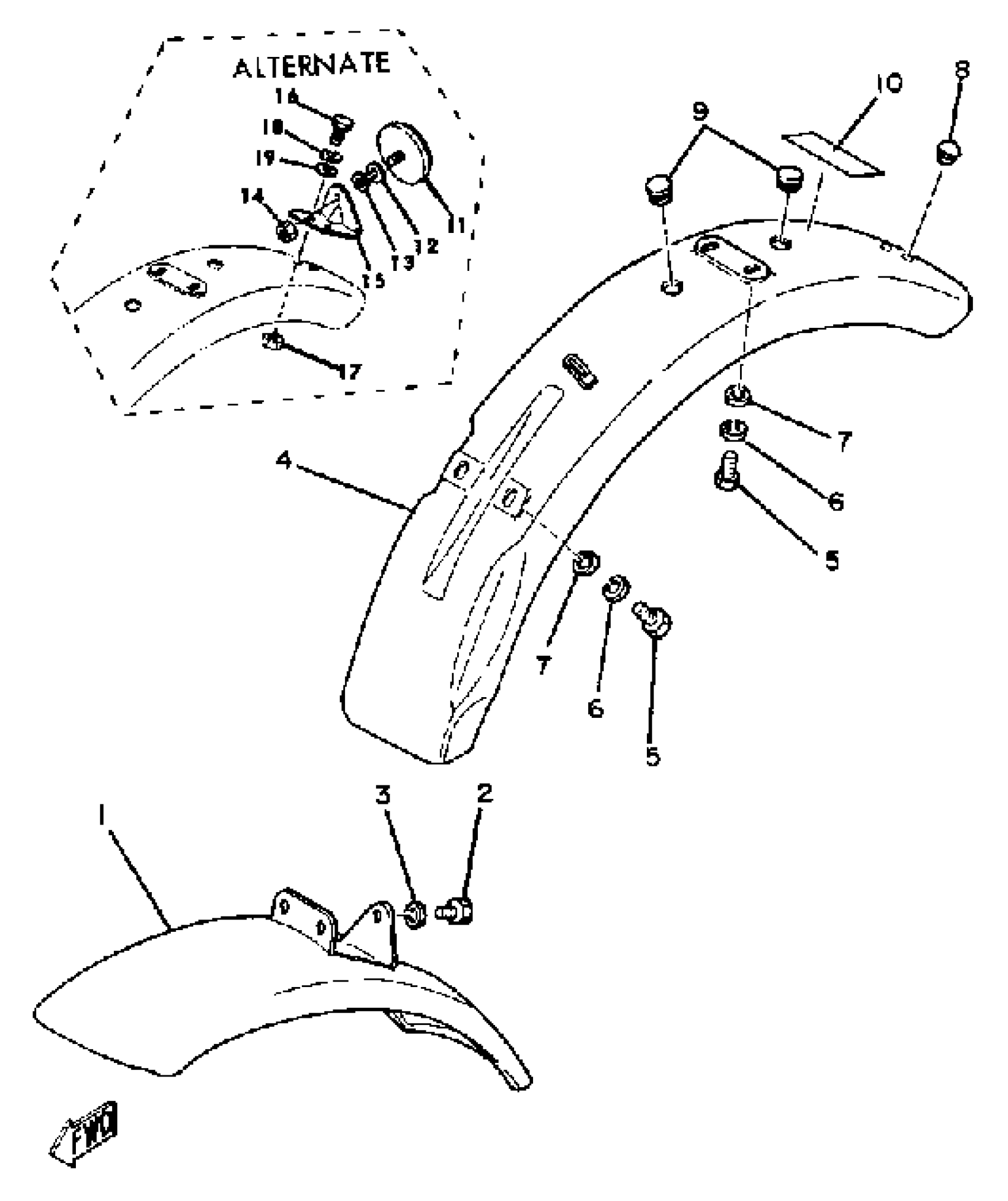

Yamaha MX80H (MX80) 1981 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

288-21510-01-36

$46.35

2

BOLT(3JP)

97017-06010-00

$2.44

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

FENDER, REAR

(367-21610-01-36)

Unavailable

5

BOLT(8CP)

97017-06014-00

$4.91

6

WASHER, SPRING

92995-06100-00

$3.04

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

PLUG 288833190000

90338-07043-00

$5.13

9

GROMMET

214-84154-60-00

Unavailable

10

LABEL, SAFETY

288-21659-00-00

Unavailable

11

REFLECTOR, REAR 1

449-85131-02-00

$24.04

12

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

13

. WASHER, PLAIN

92990-05200-00

$4.71

14

NUT, HEXAGON (663)

95380-05600-00

$5.99

15

BRACKET, REFLECT 1

(367-85132-00-00)

Unavailable

16

BOLT (661)

97013-06012-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

$4.20

18

WASHER, SPRING

92995-06100-00

$3.04

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
