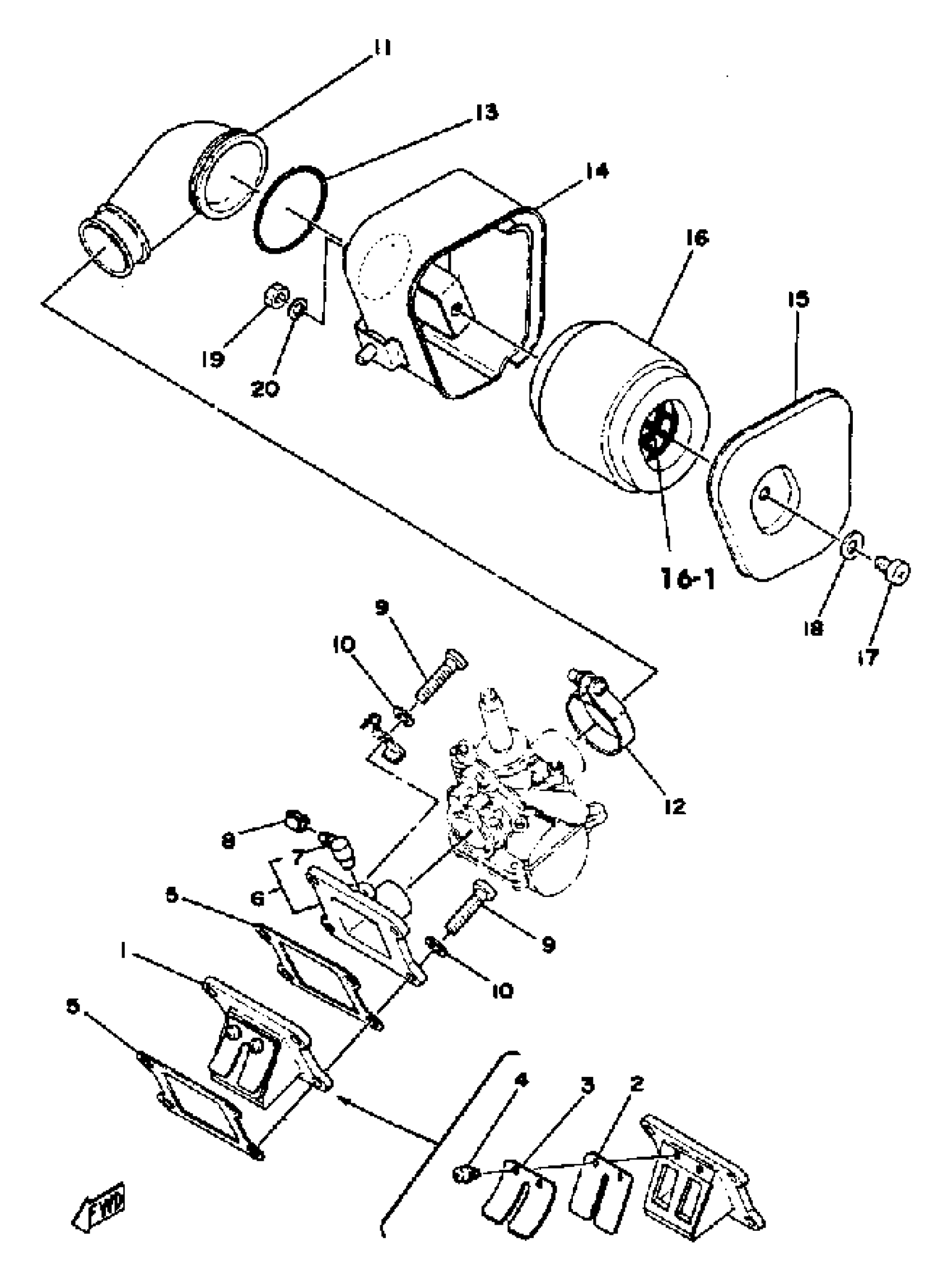

1980 Yamaha MX80 (MX80G) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX80 (MX80G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

353-13610-01-00

1
Out of stock

1

GUIDE, ELEMENT

(367-14458-01-00)

1
Out of stock

2

VALVE, REED

314-13613-01-00

—

$32.53

In stock

3

. STOPPER, REED VALVE

10X-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

3MT-13621-00-00

1

$7.51

In stock

6

JOINT, CARBURETOR (367-13565-00-98)

374-13565-00-00

1
Out of stock

7

NOZZLE

3XV-13741-00-00

1
Out of stock

8

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

9

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

JOINT, AIR CLEANER

367-14453-02-00

1

$36.06

In stock

12

CLAMP, HOSE

90460-33087-00

1
Out of stock

13

BAND 3671445501

90506-06075-00

1

$7.05

In stock

14

CASE, AIR CLEANER 1

367-14411-00-00

1
Out of stock

15

CAP, CLEANER CASE 1

2A3-14412-00-00

1
Out of stock

16

ELEMENT, AIR CLEANER

367-14451-08-00

—
Out of stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
