1980 Yamaha MX80 (MX80G) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

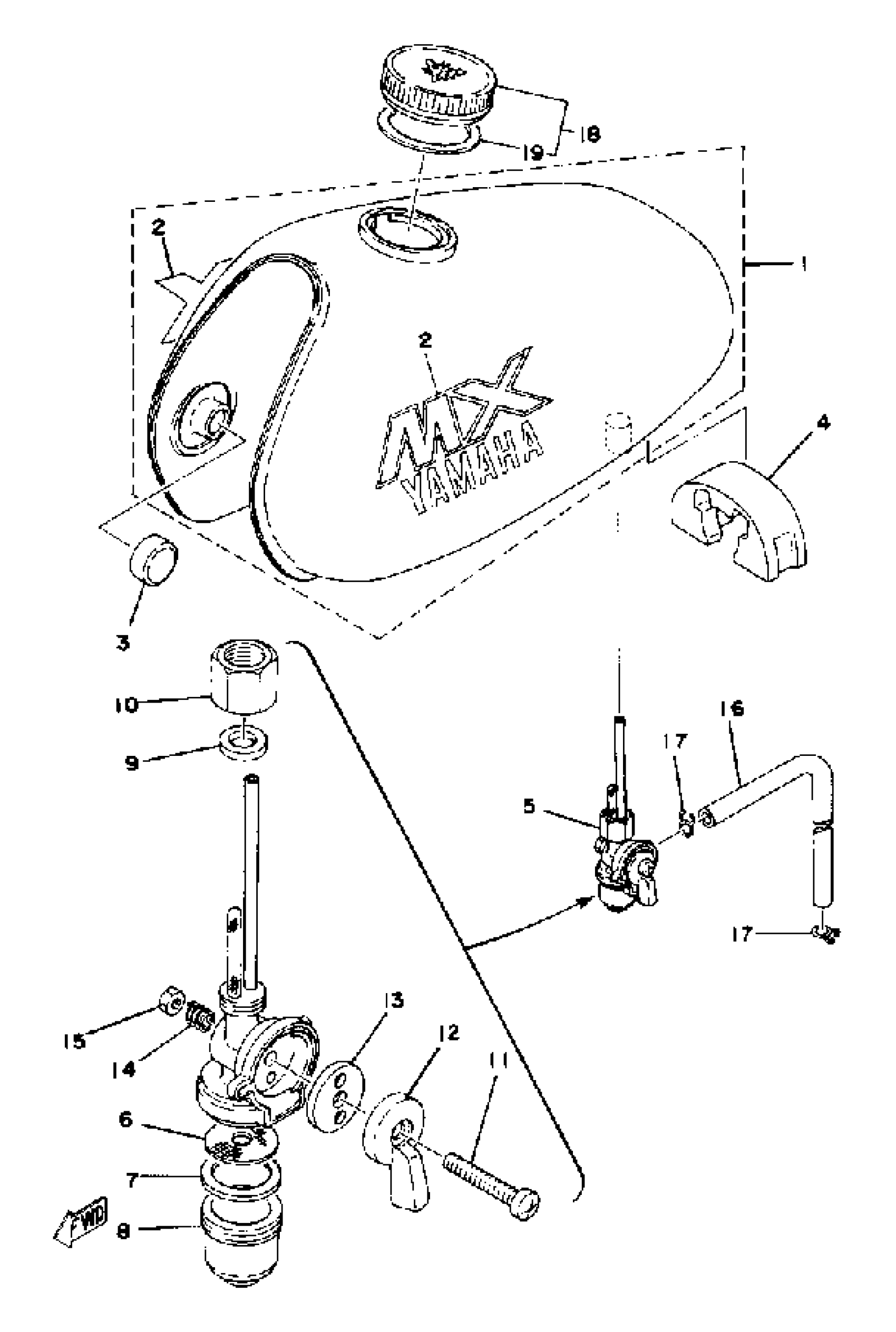

1980 Yamaha MX80 (MX80G) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(367-24110-Y0-W3)

1
Out of stock

2

GRAPHIC, FUEL TNK 1

(3M2-24244-00-00)

1
Out of stock

3

DAMPER, LOCATING(1)

122-24181-00-00

1

$6.48

In stock

4

DAMPER, LOCATING

353-24182-00-00

1

$21.77

In stock

5

FUEL COCK ASSY

367-24500-04-00

—

$94.24

In stock

6

. NET, FILTER 2

355-24515-00-00

1
Out of stock

7

GASKET

102-24522-02-00

1
Out of stock

8

. CUP, FILTER

122-24521-00-00

1
Out of stock

9

GASKET, NUT

122-24532-00-00

1

$7.51

In stock

10

. NUT

603-24531-01-00

1
Out of stock

11

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

12

LEVER, COCK

(355-24524-01-00)

1
Out of stock

13

VALVE

355-24523-00-00

1

$29.13

In stock

14

WASHER, WAVE

(355-24518-00-00)

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

17

CLIP 101235600

90467-08003-00

—

$6.13

In stock

18

CAP ASSY

122-24610-01-00

—

$19.48

In stock

19

PACKING, CAP

122-24612-01-00

—

$7.51

In stock
