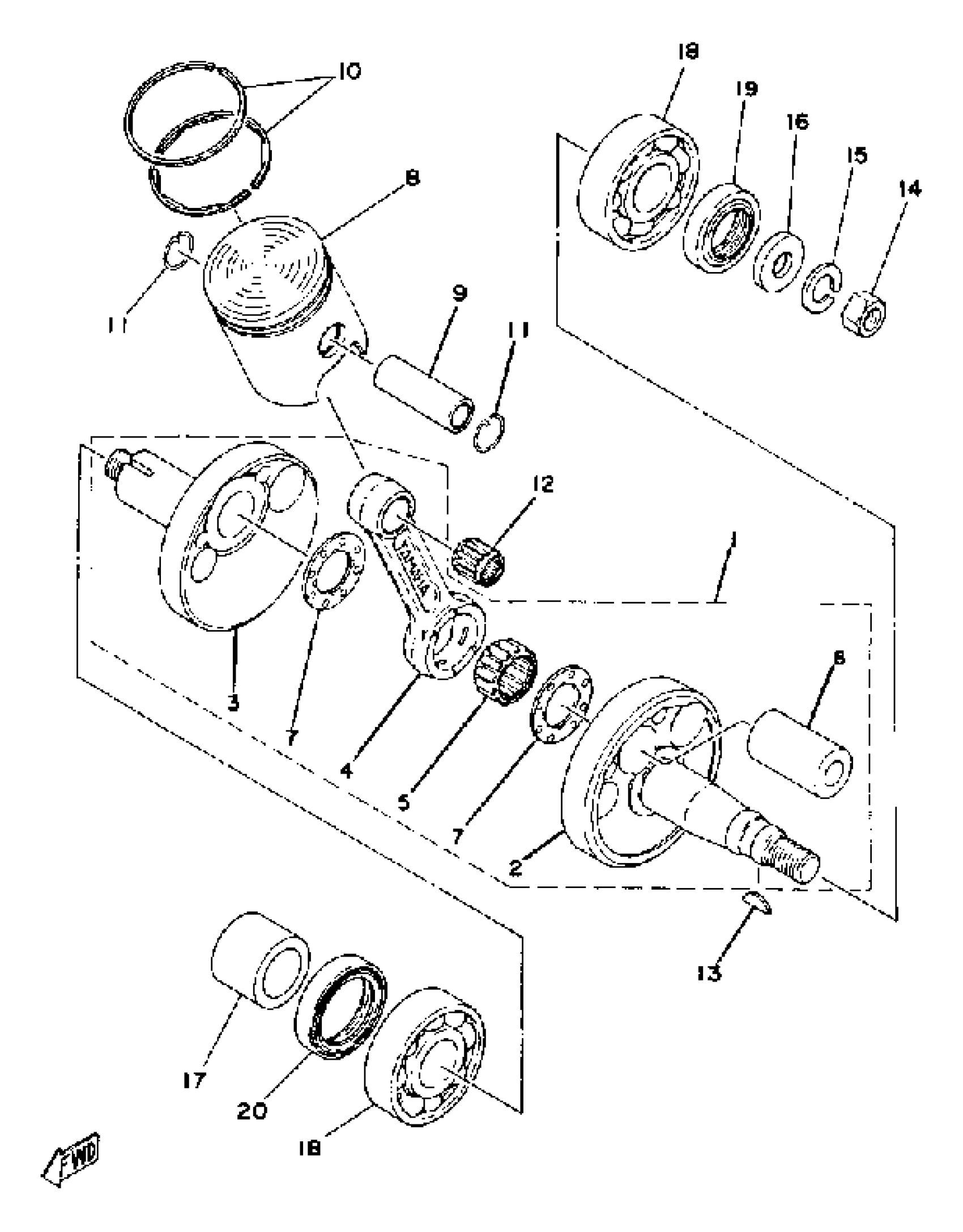

Yamaha MX80G (MX80) 1980 CRANKSHAFT-PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

1K9-11400-00-00

Unavailable

2

. CRANK 1

598-11412-00-00

Unavailable

3

CRANK 2

(598-11422-00-00)

Unavailable

4

ROD, CONNECTING

3R1-11651-01-00

$125.99

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

6

PIN, CRANK 1

257-11681-10-00

$29.99

7

WASHER 132116850000

90209-18112-00

$10.49

8

PISTON (STD) 0.96MM

367-11631-11-96

Unavailable

8

PISTON (1ST O/S)

367-11635-11-00

Unavailable

8

PISTON (STD) 2ND O/S

367-11636-11-00

Unavailable

8

PISTON 3 O/S 0.75

367-11637-11-00

Unavailable

8

PISTON 4 O/S 1.00

367-11638-11-00

Unavailable

9

PIN, PISTON

527-11633-00-00

$17.49

10

PISTON RING SET (STD)

367-11610-00-00

$63.99

10

PISTON RINGSET 1ST

367-11610-10-00

Unavailable

10

PISTON RING SET (2NDO/S)

367-11610-20-00

Unavailable

10

PISTON RINGSET 3RD

367-11610-30-00

Unavailable

10

PISTON RINGSET 4TH

367-11610-40-00

Unavailable

11

CIRCLIP 132116340000

93450-13022-00

Unavailable

12

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

Unavailable

13

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

14

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

15

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

16

WASHER (492)

90201-12535-00

Unavailable

17

COLLAR (4Y2)

90387-205E9-00

Unavailable

18

BEARING(1GJ)

93306-20458-00

Unavailable

19

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

20

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable
