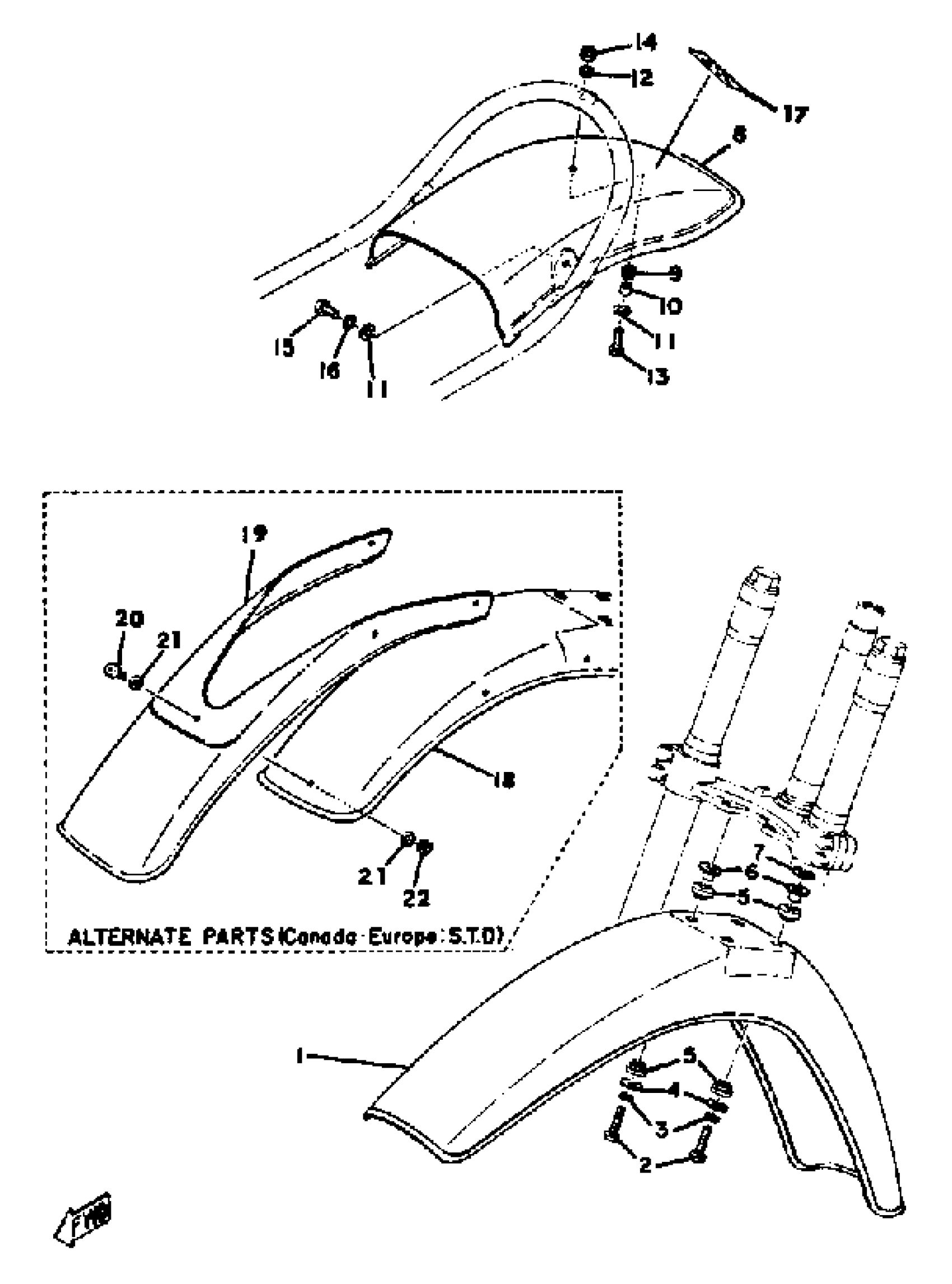

Yamaha MX400B (MX400) 1975 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT(JF7)

97080-06030-00

$5.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

WASHER, SPECIAL

(363-21515-00-00)

Unavailable

8

FENDER, REAR

483-21611-00-00

Unavailable

9

GROMMET (431)

90480-14052-00

$5.60

10

COLLAR (3H5)

90387-060A3-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BOLT, HEXAGON

97017-06020-00

$4.06

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

LABEL, SAFETY

288-21659-00-00

Unavailable

18

UNAVAILABLE IN PRICE BOOK

483-21511-10-00

Unavailable

19

OVER, FENDER

(483-21551-01-00)

Unavailable

20

UNAVAILABLE IN PRICE BOOK

98801-04012-00

Unavailable

21

WASHER, PLAIN (646)

92990-04600-00

Unavailable

22

NUT(6TA)

95307-04600-00

Unavailable
