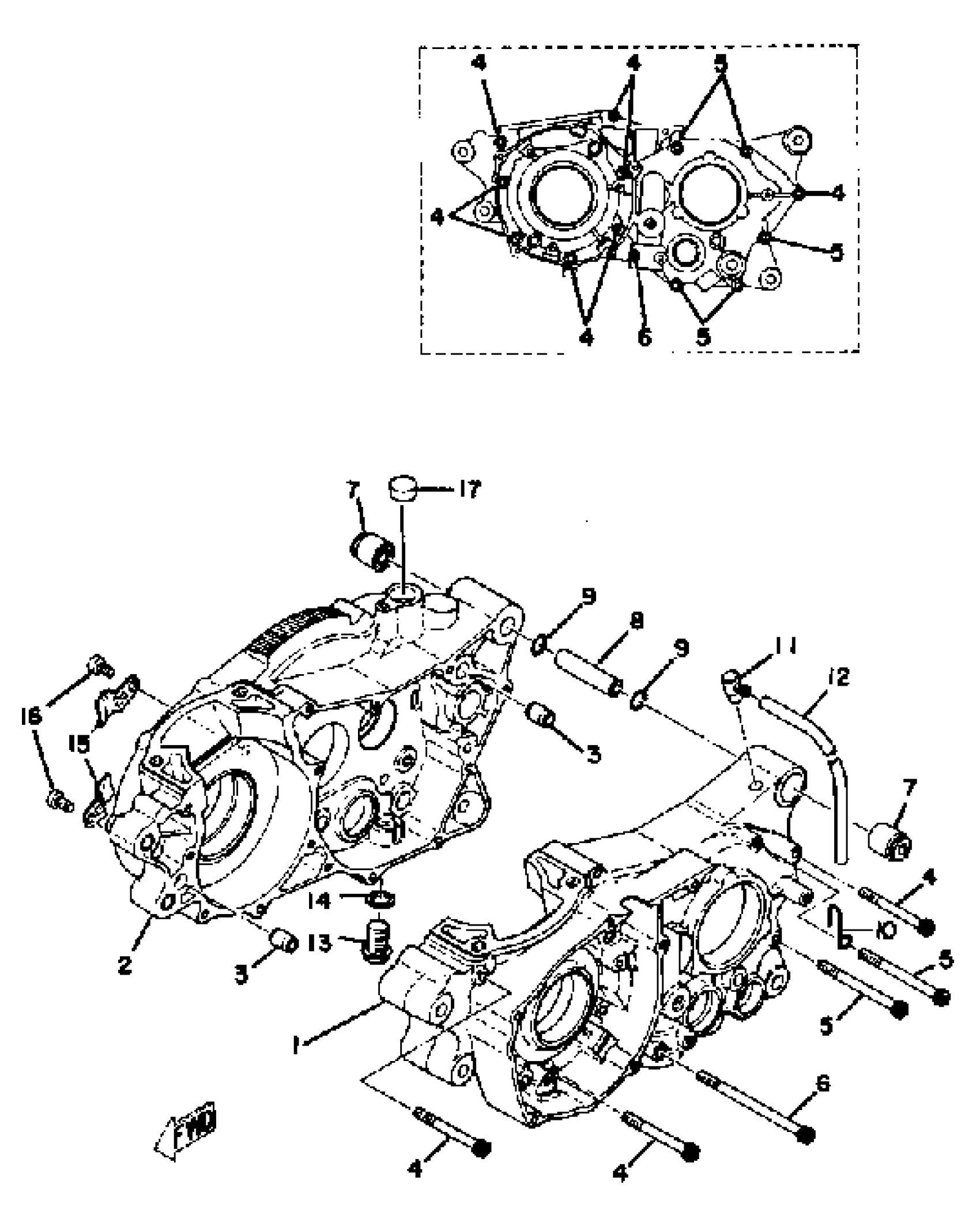

Yamaha MX400B (MX400) 1975 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(510-15111-00-00)

Unavailable

2

CRANKCASE 2

(510-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06060-00

$3.76

5

BOLT, SOCKET

91317-06075-00

$5.60

6

BOLT

91316-06100-00

Unavailable

7

DAMPER

90388-08003-00

$17.99

8

SPACER, ENGINE MOUNT

438-15317-00-00

Unavailable

9

O-RING (P95)

93210-11073-00

$7.49

10

CLAMP

90465-20035-00

Unavailable

11

BREATHER

583-15371-00-00

$6.99

12

HOSE (L570)

90445-07MF1-00

Unavailable

13

BOLT

90109-14385-00

$16.99

14

GASKET

214-11198-01-00

$3.17

15

HOLDER

434-15118-00-00

Unavailable

16

SCREW,PAN HEAD

98580-08012-00

Unavailable

17

PLUG 363174810000

90338-20023-00

Unavailable
