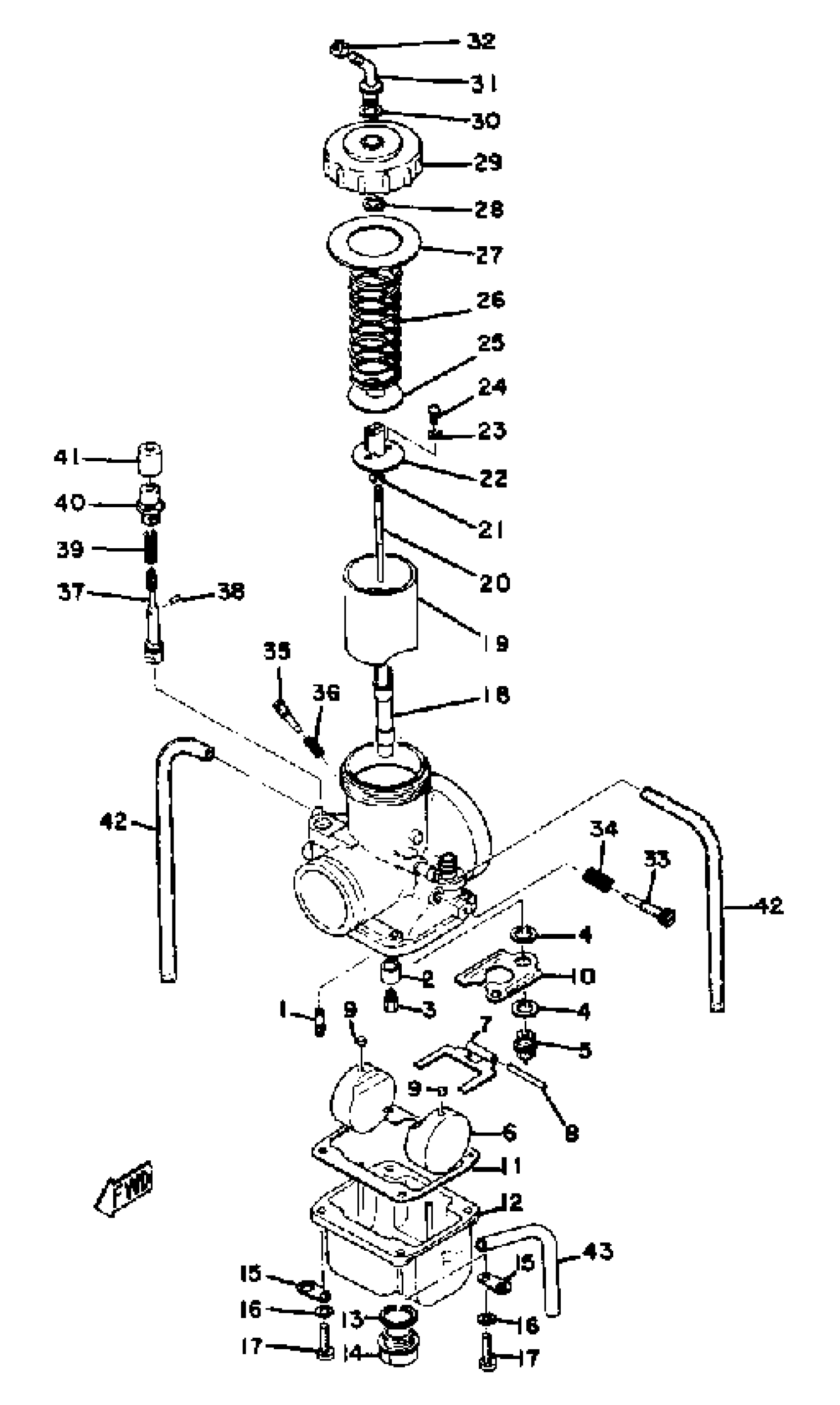

Yamaha MX400B (MX400) 1975 CARBURETOR Diagram

#

Description
Price

1

. JET, PILOT #60

193-14142-60-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(510-14101-00-00)

Unavailable

2

. SETTER, NEEDLE JET

509-14145-00-00

Unavailable

3

JET,MAIN #340

137-14143-68-00

$9.99

3

JET,MAIN #350

137-14143-70-00

$6.99

3

JET,MAIN #360

137-14143-72-00

$6.99

4

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

5

NEEDLE VALVE SET

23X-14107-35-00

$45.99

6

. FLOAT

214-14185-00-00

Unavailable

7

. ARM, FLOAT

363-14187-00-00

Unavailable

8

PIN, FLOAT

127-14186-00-00

$6.65

9

CAP

214-14118-00-00

Unavailable

10

. PLATE

510-14146-00-00

Unavailable

11

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

12

. BODY, FLOAT CHMBR 1

(510-14181-00-33)

Unavailable

13

. WASHER, PLUG SCREW

239-14117-00-00

Unavailable

14

. PLUG, SCREW

363-14115-00-00

Unavailable

15

. PLATE

313-14146-00-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

18

. NOZZLE, MAIN

510-14141-44-00

Unavailable

19

. VALVE, THROTTLE 1

510-14112-30-00

Unavailable

20

. NEEDLE

239-14116-16-00

Unavailable

21

CLIP

3FA-14137-00-00

Unavailable

22

. CONNECTOR

509-14274-00-00

Unavailable

23

TOOL

UNA-VAILA-BL-EI

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

. SEAT, SPRING

509-14136-00-00

Unavailable

26

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

27

. GASKET

363-14126-00-00

Unavailable

28

CLIP

363-14137-00-00

Unavailable

29

. TOP, MIXING CHAMBER

510-14158-00-00

Unavailable

30

GASKET

509-14198-00-00

Unavailable

31

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

32

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

33

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

34

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

35

AIR SCREW SET

23X-14104-00-00

Unavailable

36

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

37

PLUNGER, STARTER

(432-14171-00-00)

Unavailable

38

. CLIP, PLUNGER

432-14138-01-00

Unavailable

39

SPRING, PLUNGER

509-14135-00-00

Unavailable

40

CAP, PLUNGER

(432-14174-00-00)

Unavailable

41

COVER, PLUNGER CAP

(432-14173-00-00)

Unavailable

42

HOSE

89A-14987-00-00

Unavailable

43

. PIPE, OVERFLOW

310-14196-00-00

Unavailable

43

. PIPE (43214-19700-00)

510-14197-00-00

Unavailable
